Service note for JA-110ST
Wired fire alarm

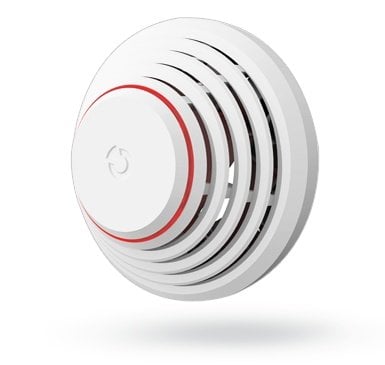

This wired detector is part of the JABLOTRON JA-100 alarm system. The sensor detects fire hazards indoors. It is not intended for installation in an industrial environment. The detector consists of an optical smoke detector and a temperature sensor. The optical smoke detector is very sensitive to larger particles, which occur in dense smoke, less sensitive to small particles, which occur in fires of liquids, such as alcohol. Therefore, it also incorporates a temperature sensor, which has a slower response, but is able to detect a fire with a small amount of smoke. The detector reacts to the condition and reports it to the control panel. The product is intended to be installed by a trained technician with a valid Jablotron certificate.
Placing the detector
Smoke enters the detector via flowing air - therefore, it must be installed in a place, where the air flows well thanks to natural thermal circulation (usually to the ceiling). The detector can only be used in an enclosed interior. It is not suitable where smoke can spread and cool down (e.g. high ceilings - more than 5 m) - smoke will then not reach the detector.
In flats, the detector should always be installed in the area leading to the exit (escape route) see figure 1. If the floor area in the flat exceeds 150 m2 , another detector should be installed there, in another part of the house, see figure 2.
picture 1
picture 2
picture 3
Men recommend installing a detector in every room, where people sleep.
Place under flat ceilings
If possible, install the detector in the middle of the room. Since a cold layer may form near the ceiling, the detectors must not be recessed into the ceiling. The fire detector must never be installed in a corner of the room (observe a distance of min. 0.5 m from the room corner, see figure 4). In corners, the air circulates poorly.
Placing under sloping ceilings
If the ceiling does not have a suitable straight surface (e.g. an attic room), the detector can be placed according to Figure 5.
picture 4
picture 5
the centre of the room, the best place, a possible place
Walls, partitions, obstacles, bare-beam ceilings
The detector must be installed at least 0.5 m from a wall or obstacle. If the room is narrower than 1.2 m, the detector must be installed within the middle third of its width. If the room is divided into sections by furniture, shelving or half partitions, above which there is no more than 0.3 m distance from the ceiling, the individual sections must be considered as separate rooms. In all directions below and around the detector, a clearance of min. 0.5 m must be left. Any irregularity of the ceiling (such as a support beam), with dimensions greater than 5 % of the ceiling height, are considered as walls where all the above remains in force.
Ventilation and air movement
Detectors must not be installed directly at the outlet of ventilation, air conditioning and the like. If air is introduced through a perforated ceiling, the ceiling must not be perforated 0.6 m in all directions around the detector.
Detector not to be placed:
? There, where the air flows poorly (niches, corners, ridges of ceilings at A-roofs and the like)
? there, where it is dusty, smoky or steamy
? in places, where the air flows intensively (close to fans, heat sources, mouths of ventilation, draught holes and the like.)
? in kitchens and damp rooms (steam, smoke and oily vapour may trigger false alarms or detection failure)
? next to fluorescent or energy-saving lamps (electrical interference may trigger a false alarm)
? in places with large quantities of small insects
Note: Most often, the detector becomes unwanted active due to an incorrect installation location.
More detailed installation instructions can be found in CSN TS 54-14.
Installation
When installing, follow the advice according to the previous paragraphs.
Figure 6: 1 - detach (remove) the detector; 2 - attach (set up) the detector; 3 - optical signalling; 4 - orientation arrow for setting up; 5 - bus terminals; 6 - serial number
1. Open the detector cover by turning it to the left (1).
2. Pull the bus cable through and screw on the plastic back panel at the selected location.
3. Connect the bus cable.
To connect the BUS, the system must be disconnected from the power supply.
4. Continue to follow the installation manual of the central unit. Basic steps:
a. After switching on, the yellow signal light flashes because the detector is not assigned to the system.
b. In the F-Link programme on the Peripheral devices map, select the desired position and start learning mode with the Read button.
c. Place the detector on the plastic back panel. It can only be in one position, indicated by arrows (4) on both plastic parts. Secure by turning. This puts the tamper sensor inside in contact and the detector learns. The yellow signal light (3) will go out.
Set detector properties
This is done by the F-Link programme - peripherals card. On the position of the detector select Internal settings. A dialogue appears, in which can be set:
LED indication on: the red LED that signals activation can be switched off.
Mode of detection - smoke only, temperature only, smoke and temperature simultaneously, smoke or temperature.
Detector testing and maintenance
Functioning of the detector can be checked by a test spray. Legislation recommends testing the detector once every 30 days. The detector should be regularly cleaned of dust, cobwebs, etc.
Please note: Never test the detector by lighting an open fire in the object.
Indication of malfunction
The detector automatically checks its own operation. As soon as a fault is detected, the yellow indicator light lights up. In this case, take out the batteries for 1 minute and put them back in. If the light lights up permanently again after about 1 minute, take the detector to service.
Technical parameters
Power supply from the BUS of the control unit 12 V (9...15 V)
Current consumption at standby (idle) 5 mA
Current consumption for cable selection 10 mA
Dimensions diameter 126 mm, height 50 mm
Smoke detection optical light diffusion
Sensitivity of smoke detector m = 0.11 ¸ 0.13 dB/m cf. CSN EN 54-7
temperature detection class A2 in accordance with CSN EN 54-5
alarm temperature 60°C to 70°C
range of operating temperatures -10°C to +80°C
Complies with CSN EN 54-5, CSN EN 54-7
further CSN EN 50130-4, CSN EN 55022
