JA-111N (0)

Service note for JA-111N

BUS signal output module PG

This product is a component of the JABLOTRON JA-100 alarm system. It provides a switching contact of the output relay. It can serve e.g. to operate an electric door lock, blocking, indication, and the like. The relay can be operated by a programmable output of the central unit, further by the status of the section (armed = relay contact on), possibly by alarm in the section (alarm = relay contact on). The product is intended to be installed by a trained technician with valid Jablotron certificate.

Installation
The module can be installed in a JA-190PL (Jablotron) type mounting box.

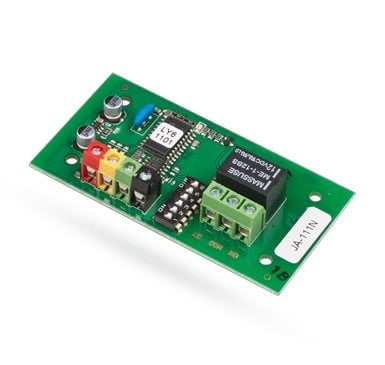

Picture: 1 - terminals of the BUS; 2 - red signal light of relay enabled, 3 - configuration switch, 4 - output relay, 5 - terminals of the relay.

1. Using the switch (3), set the number of the output or section, to which the relay should respond - see tables of setting.
2. Connect the bus cable to the terminals (1).

Prior to connecting the BUS, the system must be disconnected from the power supply.
If the module is located outside the room to be monitored, the supply must be separated from its BUS with a JA-110T bus isolator.
The output contact does not contain overload protection.

3. After turning on the system, test the operation.
4. With relay contacts closed, check that the supply voltage at the bus terminals (red, black) is greater than 9V.
5. Connect the equipment to be switched on to the relay terminals (5).

Notes:
- The module does not occupy a position in the central unit (is not classified in the system).
- In the case of several connected modules with the same setting, their relays perform the same function.
- The number of modules is limited only by current draw from the central unit.
- Setting of individual programmable outputs is done by the F-Link programme - card PG outputs. Detailed description of settings can be found in the central unit installation manual.
- If the output responds to section reinforcement, the relay is switched on at whole and also partial reinforcement of the selected section.
- If the output responds to alarm, the relay is switched on at any type of alarm.

Table 1: output responds to status of PG output.
Table 2: output responds to reinforcement of section
Table 3: output responds to alarm in section

Technical parameters
Power supply from the BUS of the central unit 12V (9 ...15V)
Current consumption at standby (relay off/on) 5 mA / 25 mA
Current consumption for cable selection 25 mA
Possible load of relay contacts:
Max. excitation voltage 50 V AC / 60V DC
Max. excitation current max.2A
Min. excitation current 10 mA
Dimensions 70 x 38 x 15 mm
Classification grade 2
compliant with EN 50131-1, EN 50131-3
Environments compliant with EN 50131-1 II. indoors, general
Range of operating temperatures -10 to +40 °C
Further complies with EN 50130-4, EN 55022

This product is designed and manufactured in accordance with the provisions to be applied to it: Government Decree No. 616/2006 Sb., if used according to its intended use. Original declaration of conformity can be found on www.jablotron.cz in the advice section.

Note: Although this product contains no harmful materials, do not dispose of it in the domestic waste, but dispose of it at the collection point intended for electronic waste.
