Service note for JA-181M

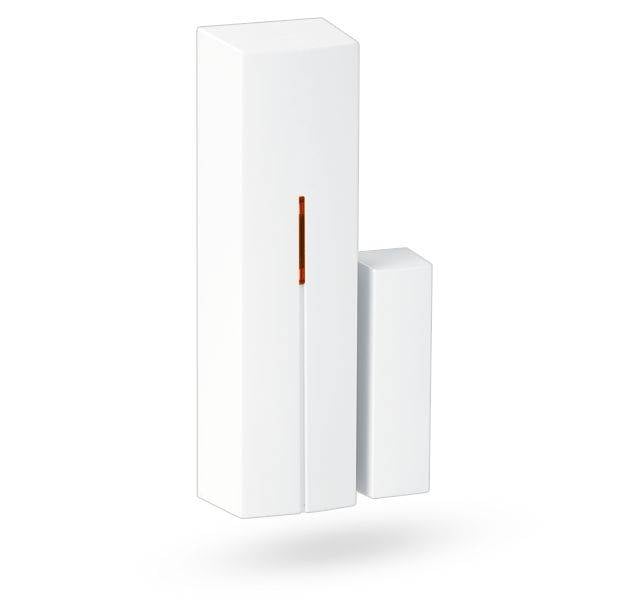

Wireless magnetic contact
This product is part of the Jablotron 100 series alarm system. It is provides detection of the opening of a door, window, etc. It can also be provided by an additional sensor, with a break or make contact on the output. The detector can also be used to detect the manipulation of a shutter, if fitted with a CT-01 gear sensor of shutter movement. The signal from the gearwheel sensor is filtered so that small movements of the roller shutter are suppressed in windy conditions. The JA-181M detector can also be used with an LD-81 flood detector.
Installation
The product must be installed by a trained technician with valid Jablotron certification. The detector responds to distance magnification of the magnet. The electronics are mounted on the fixed part of door (window) and the magnet on the moving part. We recommend installing the detector vertically. Avoid installation directly on metal parts (these negatively influence the operation of the magnetic sensor and radio communication). If the door (window) is metal, install the wireless detector outside the metal part and use an external magnetic sensor for detection (see connection of external sensor).
With the JA-181M transmitter, two types of magnets are possible in the set. The standard magnet in a plastic housing (A) and a ring magnet (B) for use in case of lack of space for mounting, possibly for drilling into door sash or window. The correct positioning of both magnets is shown in the following illustrations, as well as the detection distances (in millimetres) when the magnet is spaced over three axes of movement.
Installation step by step
1. Open the detector screen (by pressing the snap clip)
2. Screw the plastic back panel to the fixed part of door (window)
3. Screw the magnet to the moving part, its distance from the detector should be max 5mm when the door is closed, the bottom edge of the plastic case of the magnet should connect to the bottom edge of the detector screen (magnet can be mounted from left or right)
4. Leave the battery disconnected and the screen open. Proceed according to the installation manual of the central unit (receiver). Basic steps:
- Switch the central unit into service and enter the learning mode with the 1 key
- Connect the battery in the detector - with this it learns
- End the learning mode with the # key
To comply with the CSN-EN 50131-2-2 standard, the drop-in clamp of the screen must be locked by the supplied screw.
If you learn the detector in the receiver after the battery has already been connected, as first disconnect it, then press and release the screen contact (the residual energy is used up) and only then perform the learning mode.
Switches
Switch 1: MG ON / MG OFF allows the internal magnetic sensor in the detector to be switched off (OFF = sensor off). It is used in the case, when only the activation of the external transducer has to be reported (connected to the connection terminal).
Switch 2: INST / DELAY determines whether the detector is located on the access road to the house and grants a exit and entry delay = position DELAY. This setting is only significant when used with the Jablotron central unit with set response NATUR. If a different reaction is set in the detector central unit, or you are using the detector with a JA-182N or JA-180N receiver, the switch setting has no meaning.
After opening the screen, the detector always reacts with a tampering signal.
Detection of opening/closing
The detector has two operating modes, indicated by one and two flashes of the signal light respectively when the battery is inserted. One flash means that the detector reports opening and closing to the system (factory setting). This allows the status of the window or door to be monitored. Two flashes mean that the detector reacts only when opening (distance magnification of the magnet).
You switch the mode by pressing and holding the protective contact switch on the screen, inserting the battery and releasing the switch 3-5 seconds after inserting the battery. The detector then flashes once or twice, depending on the mode just selected.
Connection of external transducers
Other external transducer(s) can be connected to the detector. This allows simultaneous monitoring of several doors, possibly tracking other sensors. Inputs IN2 and TMP respond to contact breaking from the common GND terminal. The IN1 input can be balanced with a 1k resistor or it reacts in the same way as IN2 after disconnecting from GND (automatic detection).
IN 1 input When this input is activated, the detector emits the same signal as the magnet's distance extension. The built-in magnetic sensor can be switched off with switch 1.
The option of a balanced input is used when the detector is connected to the make contact of the output. By making contact, the resistor is bridged and with it comes the activation.
Example of connection of external sensors with a break and make contact
IN2 input This input is intended for signal from the roller shutter sensor (type CT-01). The alarm signal is sent as soon as the contact of the roller shutter detector breaks at least three times within 5 seconds. An accidental contact break (accidental jumping of the roller shutter sensor due to wind) is so filtered and no alarm signal is sent. If contact is broken for a period longer than 1s, sabotage alarm is invoked.
Example of connection of IN2 input
TMP input - when contact of this input is broken, the detector sends the signal of screen opening (sabotage).
Please note that if one of the In or TMP inputs is not used, its terminal must be jumpered with the GND terminal.
For the connection of external detectors, a cable of max. 3m in length must be used.
Detector testing
During 15 minutes after the screen has closed, the detector indicates activation by means of the signal light. In service mode, the Jablotron central unit can check the detector signal, including measuring the signal quality.
Replace battery in the detector
The system checks the battery status and, as soon as it starts to run low, informs the user (possibly also the service technician). The detector continues to work and also indicates activation with a short flash of the light. We recommend replacing the battery within 2 weeks. The battery is replaced by the technician in service mode. After replacing the battery, we recommend testing the detector's operation.
If a weak battery is inserted in the detector, its signal light will flash for approx. 1 min. After that, the detector will work, but will report a depleted battery
Do not dispose of a spent battery in the household waste, but dispose of it with chemical waste.
Take the detector out of the system
The system will report a possible loss of the detector. If you intentionally disassemble the detector, you must also delete it in the control centre.
Technical parameters
Power supply Lithium battery type LS(T)14500 AA (3.6V / 2.4 Ah)
Typical battery life approx. 3 years (max. 20 activations/day)
Communication band 868.1 MHz, protocol Jablotron
Communication range approx. 300m (direct visibility)
Typical off/on distance mag. sensor see fig.
Inputs for external sensor IN2 and TMP = disconnection loops
IN1=single balanced loop
Dimensions, weight electronics:110 x 31 x 26 mm, 90g
magnet: 56 x 16 x 15 mm
Environment compliant with EN 50131-1 II. indoors, general
Range of operating temperatures -10 to +40 °C
Classification cf. EN 50131-1, EN 50131-2-6, EN 50131-5-3 grade 2
Further complies with ETSI EN 300220, EN50130-4,
EN55022, EN 60950-1
The detector is designed and manufactured in accordance with the provisions to be applied to it: Government Decree No. 426/2000 Sb. if used according to its intended use. Original declaration of conformity can be found on www.jablotron.cz in the Advice (Support) section.
Note: Although this product does not contain any harmful materials, do not dispose of it in the domestic waste, but dispose of it at the collection point intended for electronic waste.
Installation
The product must be installed by a trained technician with valid Jablotron certification. The detector responds to distance magnification of the magnet. The electronics are mounted on the fixed part of door (window) and the magnet on the moving part. We recommend installing the detector vertically. Avoid installation directly on metal parts (these negatively influence the operation of the magnetic sensor and radio communication). If the door (window) is metal, install the wireless detector outside the metal part and use an external magnetic sensor for detection (see connection of external sensor).
With the JA-181M transmitter, two types of magnets are possible in the set. The standard magnet in a plastic housing (A) and a ring magnet (B) for use in case of lack of space for mounting, possibly for drilling into door sash or window. The correct positioning of both magnets is shown in the following illustrations, as well as the detection distances (in millimetres) when the magnet is spaced over three axes of movement.
Installation step by step
1. Open the detector screen (by pressing the snap clip)
2. Screw the plastic back panel to the fixed part of door (window)
3. Screw the magnet to the moving part, its distance from the detector should be max 5mm when the door is closed, the bottom edge of the plastic case of the magnet should connect to the bottom edge of the detector screen (magnet can be mounted from left or right)
4. Leave the battery disconnected and the screen open. Proceed according to the installation manual of the central unit (receiver). Basic steps:
- Switch the central unit into service and enter the learning mode with the 1 key
- Connect the battery in the detector - with this it learns
- End the learning mode with the # key
To comply with the CSN-EN 50131-2-2 standard, the drop-in clamp of the screen must be locked by the supplied screw.
If you learn the detector in the receiver after the battery has already been connected, as first disconnect it, then press and release the screen contact (the residual energy is used up) and only then perform the learning mode.
Switches
Switch 1: MG ON / MG OFF allows the internal magnetic sensor in the detector to be switched off (OFF = sensor off). It is used in the case, when only the activation of the external transducer has to be reported (connected to the connection terminal).
Switch 2: INST / DELAY determines whether the detector is located on the access road to the house and grants a exit and entry delay = position DELAY. This setting is only significant when used with the Jablotron central unit with set response NATUR. If a different reaction is set in the detector central unit, or you are using the detector with a JA-182N or JA-180N receiver, the switch setting has no meaning.
After opening the screen, the detector always reacts with a tampering signal.
Detection of opening/closing
The detector has two operating modes, indicated by one and two flashes of the signal light respectively when the battery is inserted. One flash means that the detector reports opening and closing to the system (factory setting). This allows the status of the window or door to be monitored. Two flashes mean that the detector reacts only when opening (distance magnification of the magnet).
You switch the mode by pressing and holding the protective contact switch on the screen, inserting the battery and releasing the switch 3-5 seconds after inserting the battery. The detector then flashes once or twice, depending on the mode just selected.
Connection of external transducers
Other external transducer(s) can be connected to the detector. This allows simultaneous monitoring of several doors, possibly tracking other sensors. Inputs IN2 and TMP respond to contact breaking from the common GND terminal. The IN1 input can be balanced with a 1k resistor or it reacts in the same way as IN2 after disconnecting from GND (automatic detection).
IN 1 input When this input is activated, the detector emits the same signal as the magnet's distance extension. The built-in magnetic sensor can be switched off with switch 1.
The option of a balanced input is used when the detector is connected to the make contact of the output. By making contact, the resistor is bridged and with it comes the activation.
Example of connection of external sensors with a break and make contact
IN2 input This input is intended for signal from the roller shutter sensor (type CT-01). The alarm signal is sent as soon as the contact of the roller shutter detector breaks at least three times within 5 seconds. An accidental contact break (accidental jumping of the roller shutter sensor due to wind) is so filtered and no alarm signal is sent. If contact is broken for a period longer than 1s, sabotage alarm is invoked.
Example of connection of IN2 input
TMP input - when contact of this input is broken, the detector sends the signal of screen opening (sabotage).
Please note that if one of the In or TMP inputs is not used, its terminal must be jumpered with the GND terminal.
For the connection of external detectors, a cable of max. 3m in length must be used.
Detector testing
During 15 minutes after the screen has closed, the detector indicates activation by means of the signal light. In service mode, the Jablotron central unit can check the detector signal, including measuring the signal quality.
Replace battery in the detector
The system checks the battery status and, as soon as it starts to run low, informs the user (possibly also the service technician). The detector continues to work and also indicates activation with a short flash of the light. We recommend replacing the battery within 2 weeks. The battery is replaced by the technician in service mode. After replacing the battery, we recommend testing the detector's operation.
If a weak battery is inserted in the detector, its signal light will flash for approx. 1 min. After that, the detector will work, but will report a depleted battery
Do not dispose of a spent battery in the household waste, but dispose of it with chemical waste.
Take the detector out of the system
The system will report a possible loss of the detector. If you intentionally disassemble the detector, you must also delete it in the control centre.
Technical parameters
Power supply Lithium battery type LS(T)14500 AA (3.6V / 2.4 Ah)
Typical battery life approx. 3 years (max. 20 activations/day)
Communication band 868.1 MHz, protocol Jablotron
Communication range approx. 300m (direct visibility)
Typical off/on distance mag. sensor see fig.
Inputs for external sensor IN2 and TMP = disconnection loops
IN1=single balanced loop
Dimensions, weight electronics:110 x 31 x 26 mm, 90g
magnet: 56 x 16 x 15 mm
Environment compliant with EN 50131-1 II. indoors, general
Range of operating temperatures -10 to +40 °C
Classification cf. EN 50131-1, EN 50131-2-6, EN 50131-5-3 grade 2
Further complies with ETSI EN 300220, EN50130-4,
EN55022, EN 60950-1
The detector is designed and manufactured in accordance with the provisions to be applied to it: Government Decree No. 426/2000 Sb. if used according to its intended use. Original declaration of conformity can be found on www.jablotron.cz in the Advice (Support) section.
Note: Although this product does not contain any harmful materials, do not dispose of it in the domestic waste, but dispose of it at the collection point intended for electronic waste.
