4K 60Hz HDMI Extender set small size

4K 60Hz HDMI Extender small sizeThis is an HDMI™ point-to-point extender kit, which allows transmission without latency. The 4K@60Hz HDMI™... Read more

Delivery time 1-2 business days

€118,02€97,54 -25% -25%
€88,26€72,94 Incl. VATExcl. VAT

    • American Express
    • Apple Pay
    • Google Pay
    • Klarna
    • Maestro
    • Mastercard
    • PayPal
    • Union Pay
    • Visa
    • Showroom in Gorinchem
    • 3500+ customers give us a 4.71 / 5
    • Free returns within 14 days

    check Associated products for 4K 60Hz HDMI Extender set small size

    Size chart

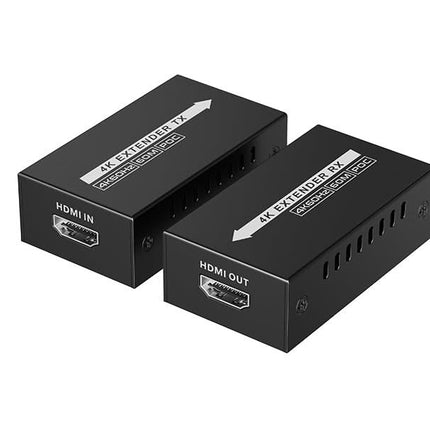

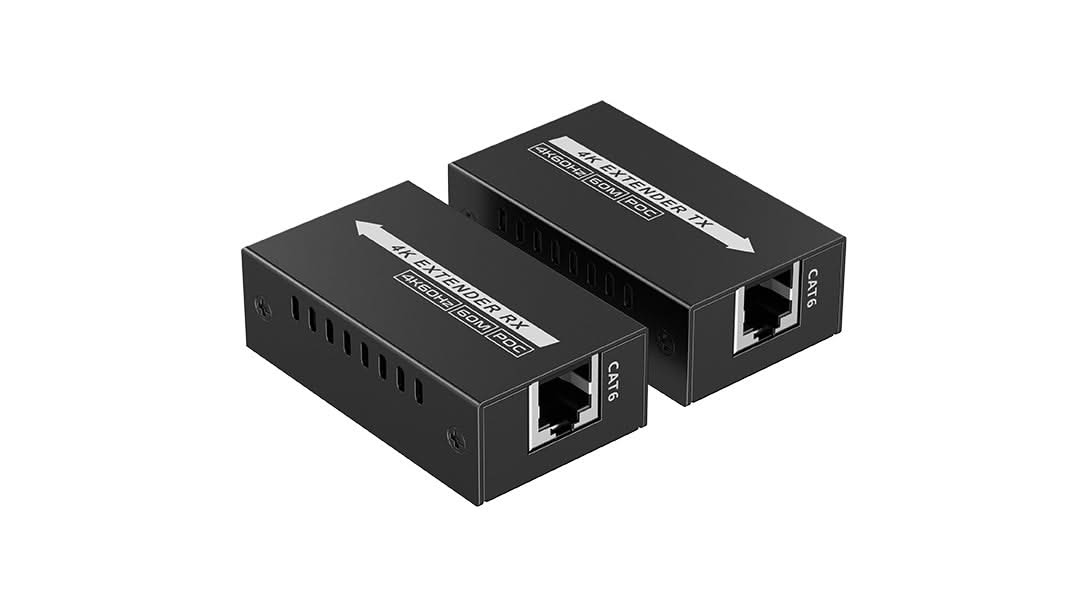

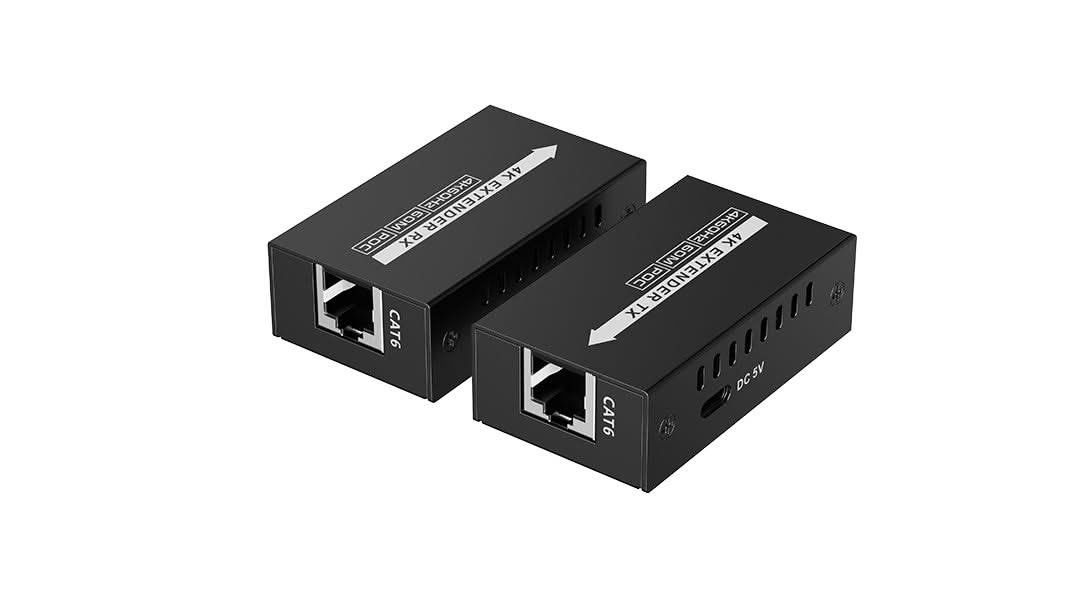

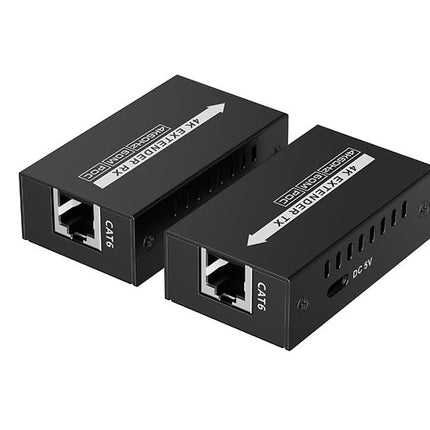

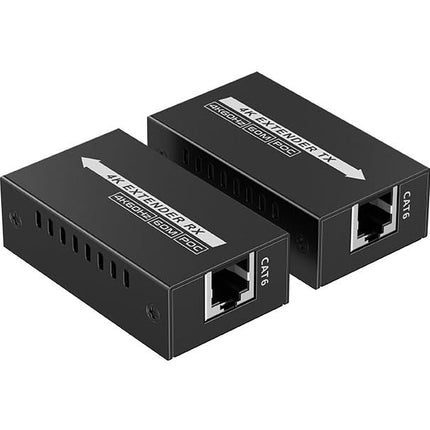

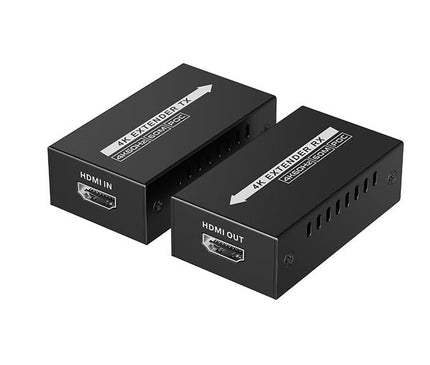

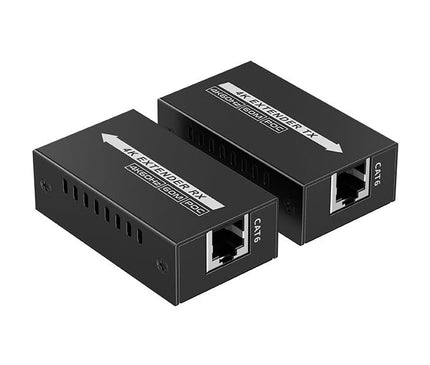

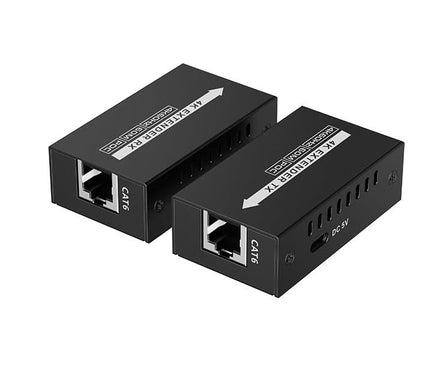

    4K 60Hz HDMI Extender small size

    This is an HDMI™ point-to-point extender kit, which allows transmission without latency. The 4K@60Hz HDMI™ signal can be extended by 60 metres via a CAT6/6A/7 network cable. This kit is a reliable, ultra-high-definition video transmission solution, widely used in security surveillance, home cinema, broadcasting, training and other areas.

    Specifications:

    • Maximum transfer rate - 18 Gbps
    • Maximum transmission bandwidth - 600 MHz
    • EDID throughput - Yes
    • Compatibility - HDMI 2.0 (deep colours, 4K, HDR, YUV4: 4:4 HDCP 2.2
    • Resolutions -
      480i at 60 Hz, 480p at 60 Hz, 576i at 50 Hz, 576p at 50 Hz, 720p at 50/60 Hz, 1080i at 50/60 Hz, 1080p at 50/60 Hz, 3840x2160 at 24/25/30/50/60 Hz, 4096x2160 at 24/25 Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1920x1200, 1360x768, 1366x768, 1600x900, 1024x768, 800x600
    • Transmission distance - CAT6/6A/7≤60m
    • Audio formats - LPCM/DTS 5.1/Dolby Digital 5.1CH
    • Power supply - TX:DC5V/2A,RX:PoC (powered by TX)
    • Power consumption - TX+RX<5W
    • Operating temperature - -20℃~60℃
    • Storage temperature - -30℃~70℃
    • Humidity - 0~90%RV (no condensation)
    • Casing - Metal
    • Weight - TX:92g,RX:91g
    • Colour - Black
    • Dimensions - 67.0(L)* 40.0(W)*23.0(H)mm
    • Protection -
      - ESD protection
      - 1a Contact discharge level 2 (±4KV)
      - 1b Air discharge level 3 (±8KV) Implementation of the standard: IEC61000-4-
      - Lightning protection, Surge protection
