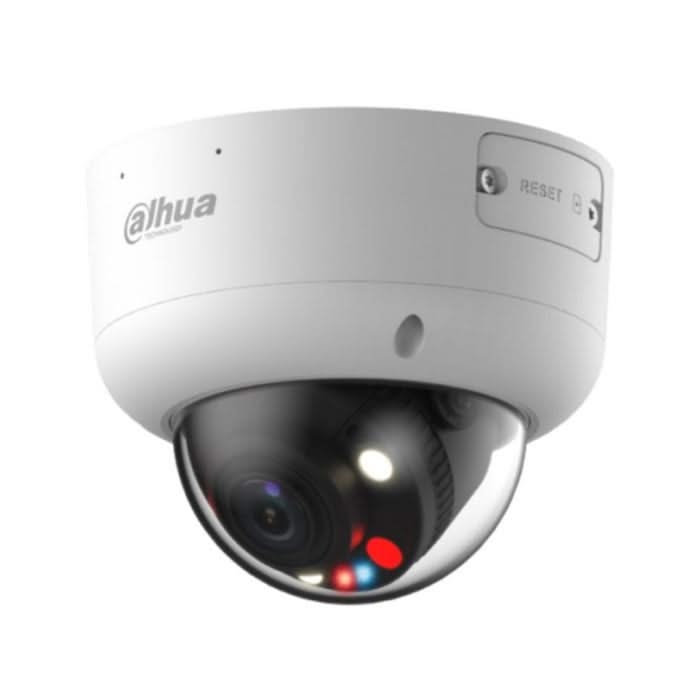

TiOC 2.0 represents the next generation 3 in 1 camera that provides 24/7 fullcolor monitoring, active deterrence and AI integrates into one smart and innovative solution. TiOC can accurately identify potential risks and effectively alert intruders, effectively protecting property security.
TiOC provides an accurate alarm function by accurately targeting people and vehicles, while filtering out non-target objects (such as animals, leaves and car headlights). In addition to keeping the false alarm rate below 2%, the powerful AI algorithms also deliver faster, more accurate motion detection with longer range.
TiOC stands for Three-in-One-Camera. In addition to full-color and WizSense technology, the camera also features a speaker and red/blue flashing light which can be paired with different detection shapes. These functionalities are all freely adjustable.
The camera features intelligent algorithm for recognizing people and vehicles. This intelligence can be applied in the IVS rules (AI perimeter) and motion detection (SMD).
The alarm input on a TiOC 2.0 camera can be used to activate and deactivate the alarm function. Thus, for example, the alarm function of the TiOC camera can be enabled simultaneously with the alarm system. Caution! This requires a separate cable between the camera and the alarm system.
The smart Dual illuminator mode is a function that can switch from IR backlight to white LED backlight when a person enters the detection area. This can be useful as ambient light but also has a deterrent effect. From TiOC -S4 models on, the detection area for Smart Illumination is the same as Smart Motion Detection.
Thanks to a new design with 2 microphones, this camera offers excellent sound quality when using the microphone function. In ideal conditions, the microphone also has a range of up to 7 meters.
Specifications:
| Number of image sensors: |
1 |
| Optical/Thermal: |
Optical |
| Image Sensor: |
1/2.8 |
| Resolution: |
3840 x 2160 |
| Number of pixels: |
8MP |
| Minimum illumination strength (in color): |
0.004 lux |
| Minimum illumination strength (LED on (black/white)): |
0 Lux |
| Illumination: |
Strobe Lighting, White LED |
| LED distance: |
up to 50m |
| LED On/Off (Day/Night): |
Auto/Manual |
| Number of LED(s): |
4 LED |
| Shutter speed: |
1/3s ~ 1/100,000s |
| Noise reduction: |
3DNR |
| Lens type: |
Motor Zoom Lens |
| Iris: |
Fixed Iris |
| Focal Length: |
2.7mm ~ 13.5mm |
| Maximum opening: |
F1.0 |
| Horizontal aperture angle: |
108° ~ 34° |
| Vertical opening angle: |
56° ~ 19° |
| Focus control: |
No |
| Stream capability: |
3 streams |
| Video compression: |
H.264, H.264 +, H.264 B, H.264 H, H.265, H.265 +, MJPEG |
| Footage per second (Main stream): |
25fps @3840 × 2160 |
| 2nd stream: |
25fps @704 × 576 |
| 3rd stream: |
25fps @1920 x 1080 |
| Bit rate: |
H.264: 3 kbps-20480 kbps, H.265: 3 kbps-20480 kbps |
| Day/Night: |
Auto (filter), Color, Black/White |
| Light compensation: |
BLC, HLC, WDR(120dB) |
| Motion detection: |
On/Off |
| |
|
| Smart Features: |
AI Perimeter Protection |
| |
AI Motion detection |
| Smart IR: |
Yes |
| Smart LED: |
Auto/Manual |
| Defog: |
Yes |
| Privacy masking: |
Yes |
| Built-in microphone: |
Yes |
| Audio input: |
Yes |
| Audio Output: |
Yes |
| Audio Compression: |
AAC, G.711 A, G.711 MU, G.722.1, G.723, G.726, G.729, PCM |
| Speaker: |
Yes for Audio alarm |
| Ethernet: |
RJ-45 (10/100 Base-T) |
| Storage option SD card: |
Yes |
| Maximum Storage Capacity SD card: |
256 GB |
| Alarm: |
Yes |
| Number of channels in: |
1x Max 5mA 3V-5V DC |
| Number of channels out: |
1x Max 300mA 12V DC |
| power supply included: |
No |
| Power supply: |
12V DC, PoE (Type IEEE 802.3af) |
| Max Consumption: |
Min consumption: 4.4W (12V DC); 5.8W (PoE)
Max Consumption: 7.9 W (12 V DC); 10.1 W (PoE) |
| Operating temperature: |
-40°C ~ +60°C |
| Water resistance: |
IP67 |
| Vandal resistant: |
IK10 |
| Material |
Metal |
| Diameter |
Ø126mm |
| Height |
105mm |
| Weight: |
0.73 Kg |
