This complete Dahua set consists of a HUB 2 that can be connected to your network router using WiFi or LAN. As backup communication, this HUB2 also has a 4G sim slot that can hold a simcard with 4G. Furthermore, the kit is equipped with a wireless magnetic contact, motion sensor and a remote control. You can further expand this kit with the required detection.

The Alarm Hub manages wireless alarm devices to alert on intrusion via doors, opened windows, broken glass, fire and leakage. In case of an intruder, the hub alerts the alarm centre and the mobile app (DMSS or DoLynk Care) and sends videos from the PIR camera and IPC, keeping you informed without having to monitor yourself.

• Supports alarm video monitoring via integration of the IPC with the hub.
• Images can be transferred quickly and remotely from the PIR Cam to the device.
• Supports wired and AP network configuration methods, making it easier to add the hub to apps and switch to the hub's network.
• Supports multi-network redundancy for Ethernet and Wi-Fi to ensure the network remains stable and reliable.
• Supports two-way communication and frequency hopping for stable and reliable communication with wireless peripherals.
• Provides cloud updates. You can also update the device and wireless peripherals remotely via the mobile app.
• The hub features 4G

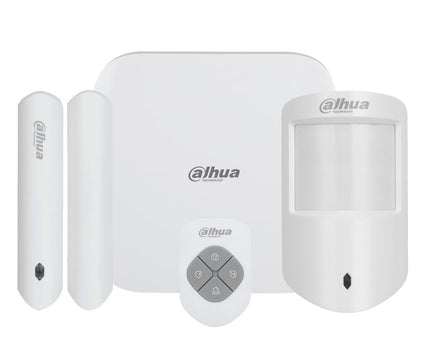

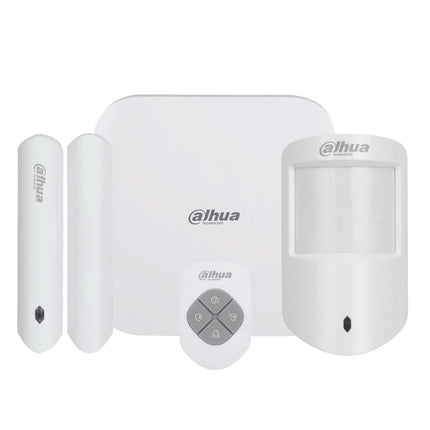

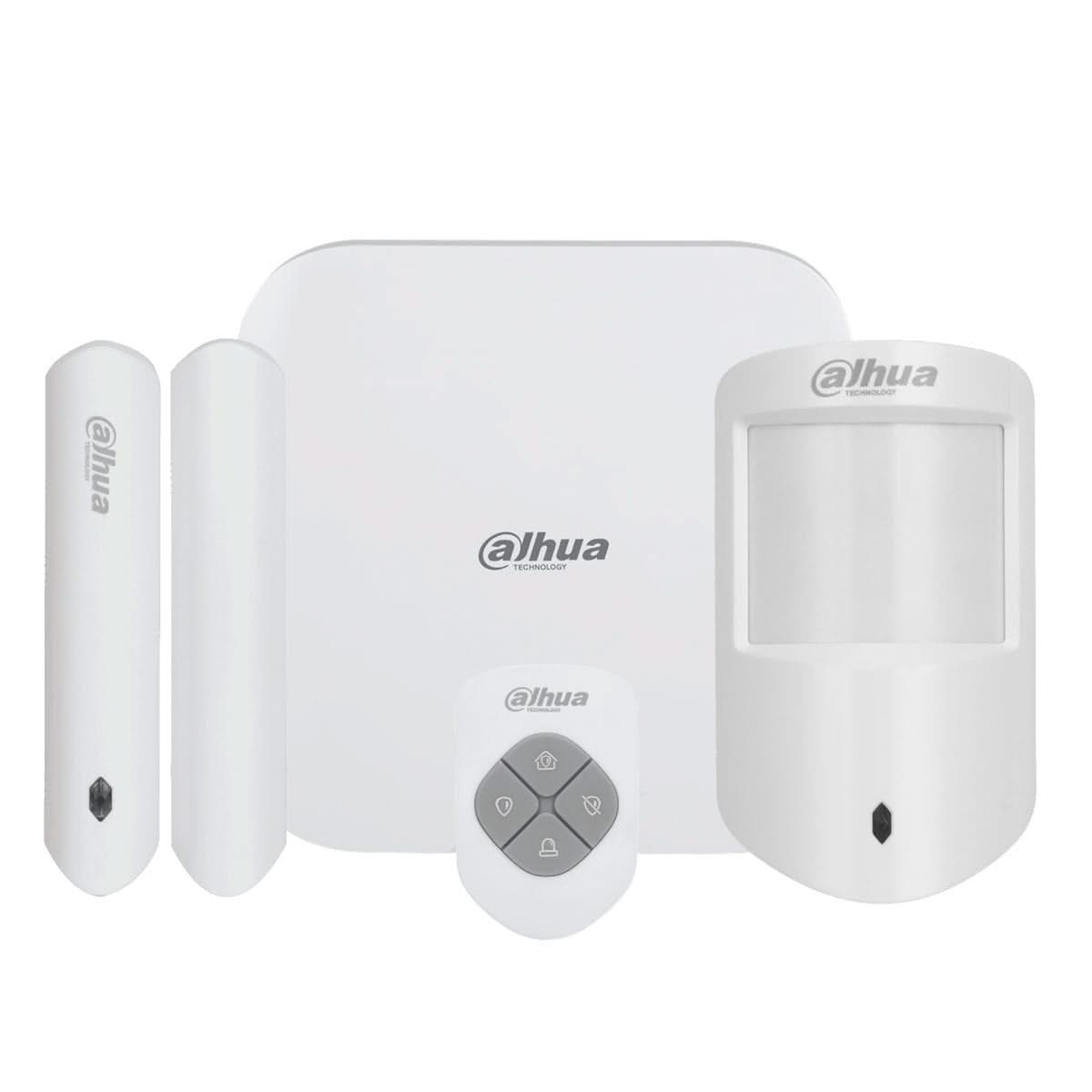

• In the Kit:

  1x Hub 2 4G
  1x Motion detector
  1x Magnetic contact
  1x Handheld transmitter

Specificaties:

• Poorten

  • Wireless Zone: Hub supports 150 channels of wireless peripherals (6 sirens, 64 PIR cameras (only 8 indoor PIR cameras), 64 key fobs, 8 keyboards and 4 repeaters)
  • Network mode: Hub supports Ethernet, Wi-Fi and mobile network (supports installation of dual SIM cards. Only one card can be enabled at a time)
  • Network port: 1 RJ-45, 10 Mbps/100 Mbps Ethernet port
  • Rechargeable battery: Built-in 4,750mAh lithium rechargeable battery
  .

• Video & Audio

  • Video input: 8-channel IPC, support for alarm video upload only
  • Audio output: 1 channel
  • Volumecontrole: Ja
  • Speech broadcast: Local speaker

• Functies

  • Indicator lamp: The indicator shows the status of alarms, power on/off, network connection and device failures.
    • Key ring: 1 two-colour status indicator (Green means normal and red means abnormal)
    • Door detector: 1 green alarm indicator
    • PIR Detector: 1 green alarm indicator
  • Button: Contains a reset button, power button and AP switch button.
    • Key fob: 4 buttons (Home, Away, Power off, and SOS)
    • Door Detector: 1 on/off switch
    • PIR Detector: 1 on/off switch
  • SMS: Yes, up to 5 phone numbers
  • Telephone call: Yes, up to 5 phone numbers
  • Videokoppeling: Ja
  • Offline Cache: Stores up to 50 alarm messages
  • In and Out: App, Keypad, remote control, map, scheduled on and off
  • Remote update: Cloud update
  • Low battery detection: Yes
  • Sabotage: Yes
    • Hub, Door Detector, PIR Detector
  • User management: Up to 33 app users and 32 keyboard users
  • Logs: Up to 5.000 entries

• Meetbereik (Temperatuur)

  • Deurdetector: -15 °C to +65 °C (indoors)
  • PIR Detector: -15 °C to +65 °C (indoors)
  • Transmission protocol: SIA, SoftGuard

• Technisch

  • Sensor:
    • Door Detector: Reed switch
    • PIR Detector: dual-element low-noise PIR sensor
  • Detectiemodus: PIR
  • Sensitivity: 3 levels adjustable
  • Detection range: 12 m (90°) at installation height of 2.2 m
  • Detection speed: 0.3 m/s-3 m/s
  • Movement distance: Door detector < 40 mm
  • Pet immunity level: ≤ 18 kg
  • White light resistance level: 6500 lx
  • Digital temperature compensation: Yes, no decrease in detection distance at high temperature
  • Scenario: Non-metallic doors

• Draadloos

  • Carrier Frequency: 868.0 MHz-868.6 MHz
  • Transmitter Power (EIRP): Limit 25 mW
  • Communication mechanism: Two-way
  • Communication distance:
    • Hub: up to 2,000 m in open space
    • Key fob: Up to 900 m
    • Door Detector: Up to 1,200 m
    • PIR Detector: Up to 1,600 m
  • Encryption mode: AES128
  • Frequentiesprong: Ja

• Algemeen

  • Taal: Engels
  • Power supply:
    • Hub: 100-240 VAC, 50/60 Hz
    • Keyring: CR2032 battery
    • Door detector: CR123A battery
    • PIR Detector: CR123A battery
  • Standby time:
    • Hub: up to 12 hours
    • Key ring: 3 years
    • Door detector: 4 years
    • PIR Detector: 4 years
  • Current consumption:
    • Hub: Max. 12 W
    • Keychain: Max. 100 mW
    • Door detector: Max. 125 mW
    • PIR Detector: Max. 120 mW
  • Operating temperature: -10 °C to +55 °C
  • Operating humidity: 10%-90% (RH)

• Productafmetingen

  • Hub: 174.8 mm × 174.8 mm × 38.3 mm
  • Key ring: 60.0 mm × 39.5 mm × 15.0 mm
  • Door detector: 100.2 mm × 20.8 mm × 20.3 mm
  • PIR Detector: 104.0 mm × 60.0 mm × 50.0 mm
  • Nettogewicht:
    • Hub: 510 g
    • Key ring: 20 g
    • Door detector: 70 g
    • PIR Detector: 100 g
  • Gross weight: Kit: 1.46 kg

• Installatie

  • Hub: Wall mount; Desk mount
  • Deurdetector: Bracket mounting
  • PIR Detector: Wall mount
  • Casing material: PC + ABS
  • Certifications: CE
  • Anti-corrosion Level: Basic Protection
  • Storage temperature: -10 °C to +55 °C
  .
  • Packaging dimensions: 270 mm × 218 mm × 122 mm

• Wi-Fi

  • Wi-Fi Standard: IEEE 802.11b/g/n
  • Wi-Fi Frequency Range: 2400-2483.5 MHz
  • Wi-Fi Power Transmission: ≤20 dBm @ 2400-2483.5 MHz

• Mobiel netwerk

  • Send power (EIRP):
    • 4G: Power class3: 23 dBm±2dB
    • 3G: Power class3: 24 dBm+1/-3dB
    • 2G: Power class0: 30 dBm±3dB
  • Mobile network standard: GSM/WCDMA/LTE
  • Frequency range:
    • RU: 4G FDD-LTE: B1/B3/B7/B8/B20/B28, TDD-LTE: B38/B40/B41, 3G WCDMA: B1/B5/B8, 2G GSM: 1,800/900MHz
    • EU: 4G FDD-LTE: B1/B3/B7/B8/B20/B28A, TDD-LTE: B38/B40/B41, 3G WCDMA: B1/B8, 2G GSM: 1,800/900MHz
