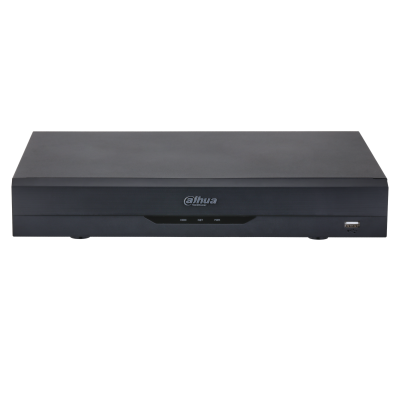

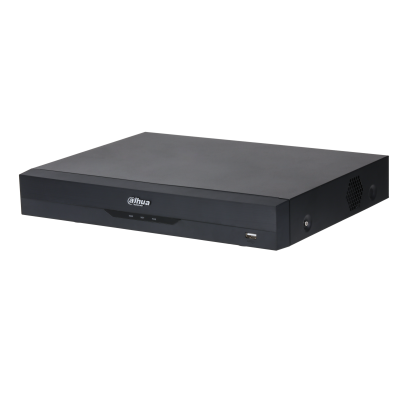

DH-XVR5108H-I3-8P, WizSense 8-channel Penta-brid 5MP compact 1U DVR with PoC

DH-XVR5108H-I3-8P, WizSense 8-channel Penta-brid 5MP compact 1U DVR with PoC

Penta-brid recorder, meaning that this recorder can handle as many as 5(!) different systems. HD-CVI, HD-AHD, TVI, IP and even traditional analog cameras can run on this system.

This particular DVR is capable of recording 4K 3840x2160 resolution, or lower) from 8 cameras simultaneously and can power a PoC camera right through the coax cable. Equipped with many additional intelligent functions, including detection of people or vehicles and even face recognition! Please refer to the datasheet for more information.

The connections are with BNC and can be connected with combicoax or UTP cabling in combination with Baluns. If you also use IP cameras, connect them to your network, preferably wired and possibly via Wifi. It is also possible to connect a second screen on which a single camera can be displayed.

A very fine recorder that can handle all our surveillance cameras (up to 8MP), regardless of whether they are analog, HD-CVI, HD-AHD, TVI or IP. That makes this recorder also perfectly suitable as a replacement for your recorder in existing analog installation.

Specifications:

• Model Dahua XVR5108H-I3-8P
• 8 x PoC channels
• Suitable for HD-CVI, HD-AHD, TVI, Analog and IP on all channels
• H.264+/H.264 dual-stream video compression
• All channels 4K/7F recording or lower, 5MP/12F or lower, 1080p/30F or lower
• Monitor output HDMI and VGA simultaneously
• 4 channels simultaneous playback
• Space for 1 SATA drive up to 10TB
• 3D intelligent positioning with Dahua PTZ dome camera's
• Various network monitoring possible such as Web viewer, PS software CMS (DSS/Smart PSS) and of course your cell phone (DMSS for Iphone and Android)
• Supplied without hard disk (can be ordered)
• Audio recording also possible
• Motion detection on each camera
• Includes mouse and 12V power supply
• Fan on the processor: No
• Cabinet fan: Yes
• Dimension 325mm×257mm×55mm
