• 8 MP Resolution (4K UHD): The camera offers a super-high resolution of 8 megapixels, enabling detailed images for accurately identifying objects and people.
• ColorVu technology: Thanks to the built-in smart lighting and advanced sensor, the camera can capture colour images even in practically no light (0.0005 lux). This makes the camera particularly suitable for 24/7 surveillance.
• Built-in microphone: This model is equipped with a built-in microphone so it is possible to listen to what is being said.
• Smart IR:The camera has infrared illumination that is automatically adjusted depending on the situation, ensuring optimal brightness and visibility in the dark without overexposure.
• Three-dimensional image enhancement: The camera is equipped with technology that optimises image quality even in dynamic or difficult lighting conditions.
• IP67 certification: The camera's weatherproof design makes it suitable for use in all weather conditions, from rain and snow to extreme heat.
• External memory option: Supports the ability to store images locally via a microSD card (up to 256GB) for redundant storage.
• Power over Ethernet (PoE): Easy installation with a single cable for both power and network connection, reducing installation costs and time.

Toepassingen:

• Dwellings and residential buildings
• Business premises and shops
• Parking lots
• Public areas and streets

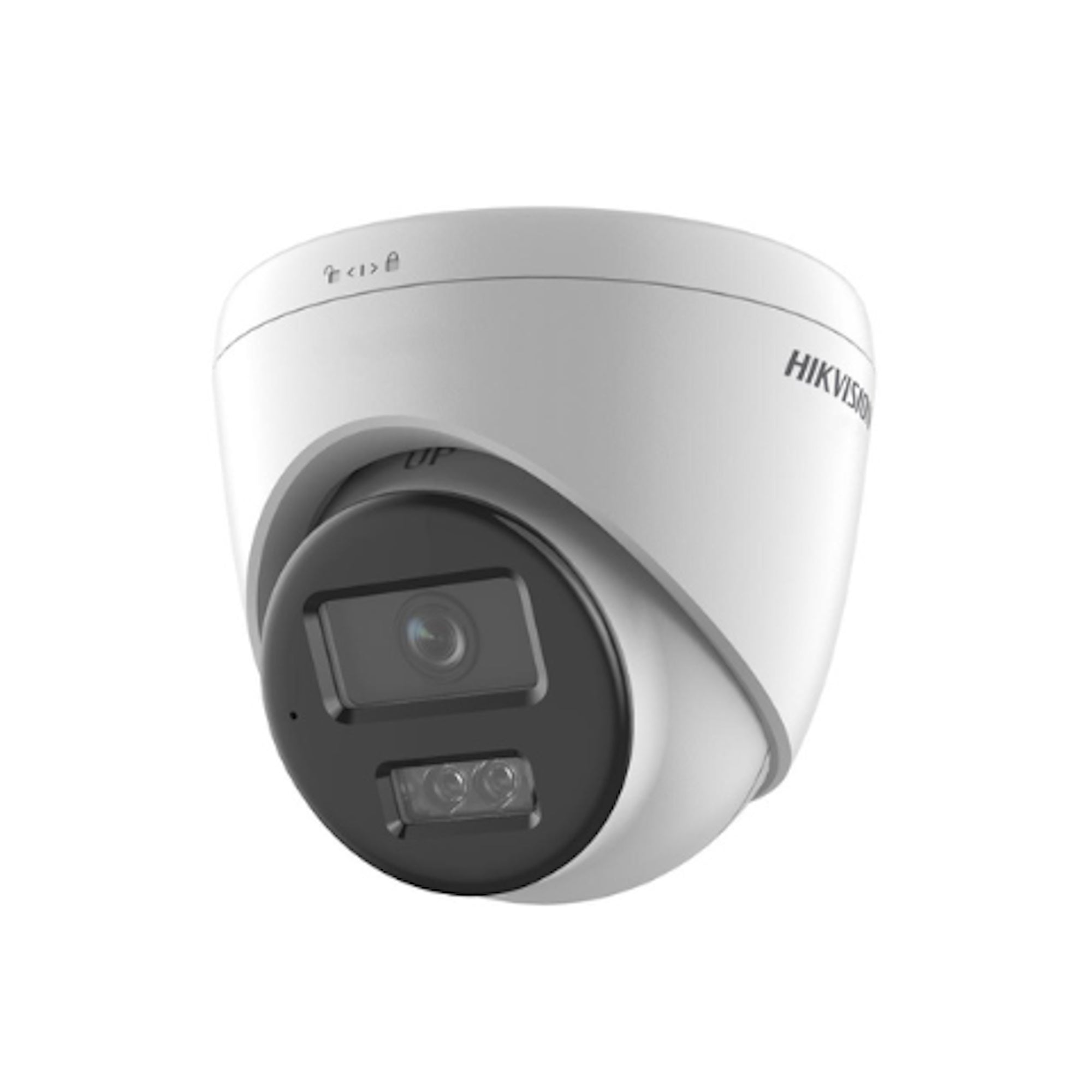

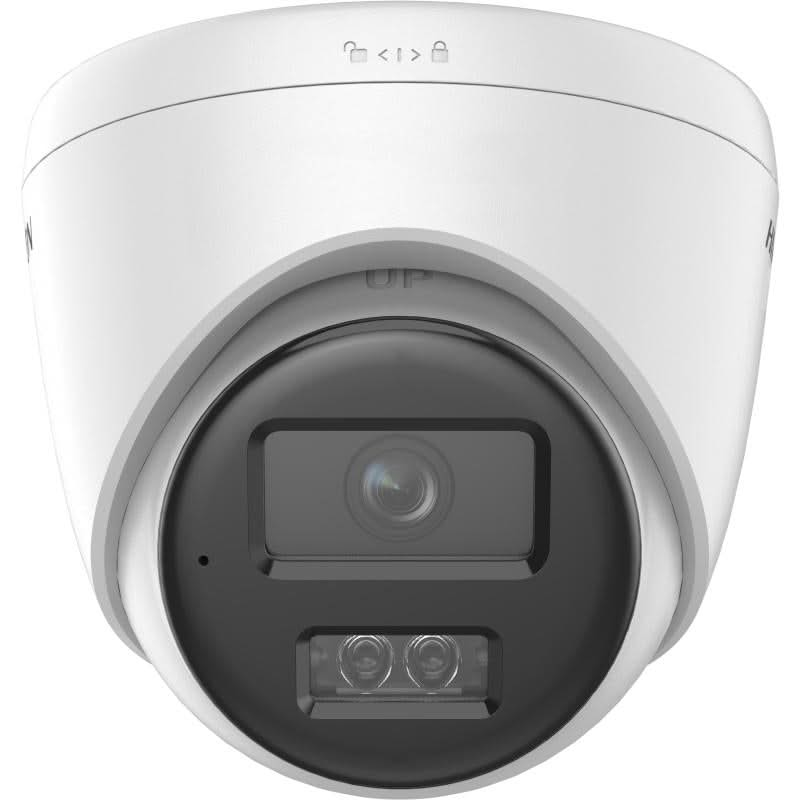

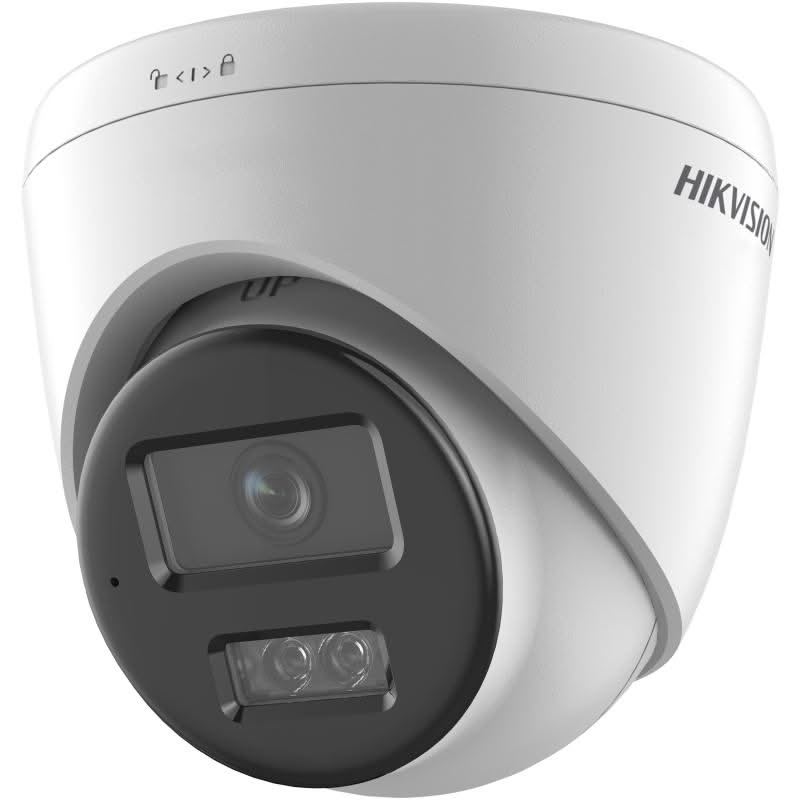

The Hikvision DS-2CD1383G2-LIU(F) combines the power of high resolution and excellent night vision capabilities with easy-to-use functionality, making it a versatile choice for high-end surveillance solutions.

Specifications:

• Camera

  • Imaging sensor: 1/2.7" Progressive Scan CMOS
  • Maximum Resolution: 3840 × 2160
  • Minimum Illumination: Colour: 0.01 Lux @ (F2.0, AGC ON), Black and White: 0 Lux with IR
  • Shutter speed: 1/3 s to 1/100,000 s
  • Day & Night: IR-cut filter
  • Angle adjustment: Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

• Lens

  • Lens Type: Fixed focal length lens, 2.8 mm and 4 mm optional
  • Focal Length & FOV:
    • 2.8 mm: Horizontal FOV 113°, Vertical FOV 62°, Diagonal FOV 134°
    • 4 mm: Horizontal FOV 90°, Vertical FOV 49°, Diagonal FOV 108°
  • Lens mount: M12
  • Aperture: F2.0
  • DORI (Detection, Observation, Recognition, Identification):
    • 2.8 mm: D: 79 m, O: 31 m, R: 15 m, I: 7 m
    • 4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m

• Verlichting

  • Type of Supplementary Illumination: IR, White illumination
  • Auxiliary Illumination Range: up to 30 m
  • Smart Supplementary Illumination: Yes
  • IR Wavelength: 850 nm

• Video

  • Mainstream:
    • 50 Hz: 12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    • 60 Hz: 15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Substream:
    • 50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)
    • 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
  • Video compression:
    • Hoofdstroom: H.265+/H.265/H.264+/H.264
    • Substream: H.265/H.264/MJPEG
  • Video bitrate: 32 Kbps to 16 Mbps
  • H.264 Type: Baseline Profile, Main Profile, High Profile
  • H.265 Type: Main Profile
  • Bitrate Control: CBR, VBR
  • Region of Interest (ROI): 1 fixed region for main stream
  • Scalable Video Coding (SVC): H.264 and H.265 encoding

• Audio

  • Audio Type: Mono sound
  • Environmental Noise Filtering: Yes
  • Audio Sampling Frequency: 8 kHz/16 kHz
  • Audio Compressie: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
  • Audio Bitrate:
    • 64 Kbps (G.711ulaw/G.711alaw)
    • 16 Kbps (G.722.1)
    • 16 Kbps (G.726)
    • 32 to 160 Kbps (MP2L2)
    • 16 to 64 Kbps (AAC-LC)

• Netwerk

  • Security: password protection, advanced password, watermark, basic and digest authentication for HTTP, WSSE, Open Network Video Interface (ONVIF), security log, host authentication (MAC address)
  • Simultaneous Live View: up to 6 channels
  • API: ONVIF (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK
  • Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
  • Users/Hosts: Up to 32 users, 3 user levels: administrator, operator, and user
  • Client: iVMS-4200, Hik-Connect
  • Web browser: Requires plug-in for live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

• Beeld

  • Wide Dynamic Range (WDR): 120 dB
  • SNR (Signal-to-Noise Ratio): ≥ 52 dB
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Picture Enhancement: BLC, HLC, 3D DNR
  • Picture settings: Rotation mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable via client software or web browser
  • Privacy Mask: 4 programmable polygon privacy masks

• Interface

  • Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage: -F: Integrated memory card slot, supports microSD/microSDHC/microSDXC cards, up to 512GB
  • Integrated Microphone: yes
  • Reset button: -F: Yes

• Evenementen

  • Basic Event: motion detection (supports alarm triggering by specific target types (human and vehicle)), video tampering detection, exceptions
  • Linkage: Upload to FTP/memory card (-F), send e-mail, notifications to monitoring centre, trigger recording (-F), trigger capture

• Algemeen

  • Power supply: 12 VDC ± 25%, 0.41 A, max 5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max 6.5 W
  • Material: Metal & Plastic
  • Dimensions: Ø110 mm × 93 mm
  • Packaging dimensions: 150 mm × 150 mm × 141 mm
  • Weight: Approximately 385 g
  • Weight with Packaging: Approximately 586 g
  • Storage conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
  • Start-up and operating conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)
  • Language: English
