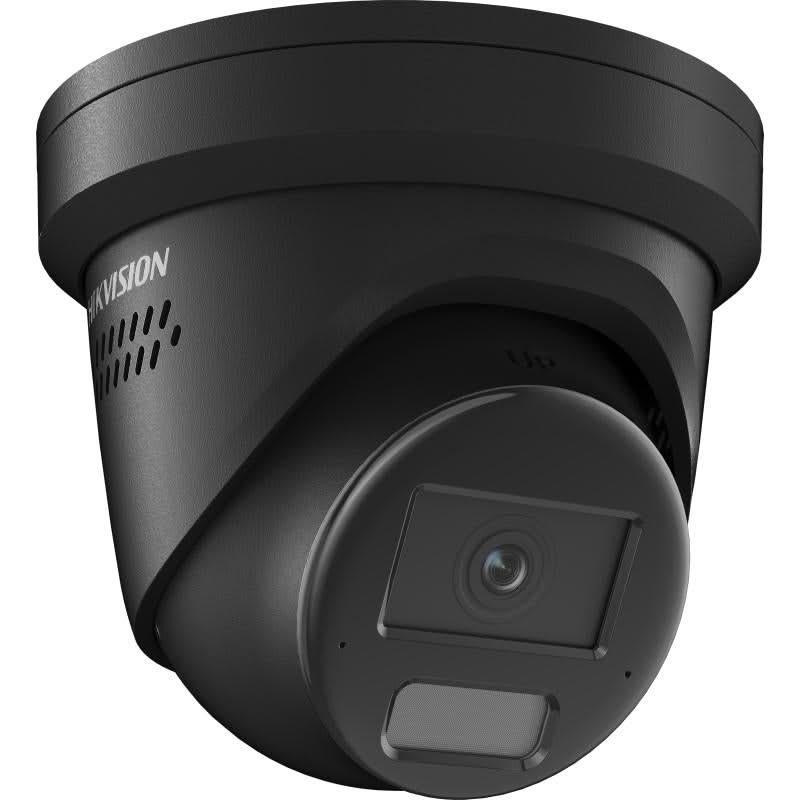

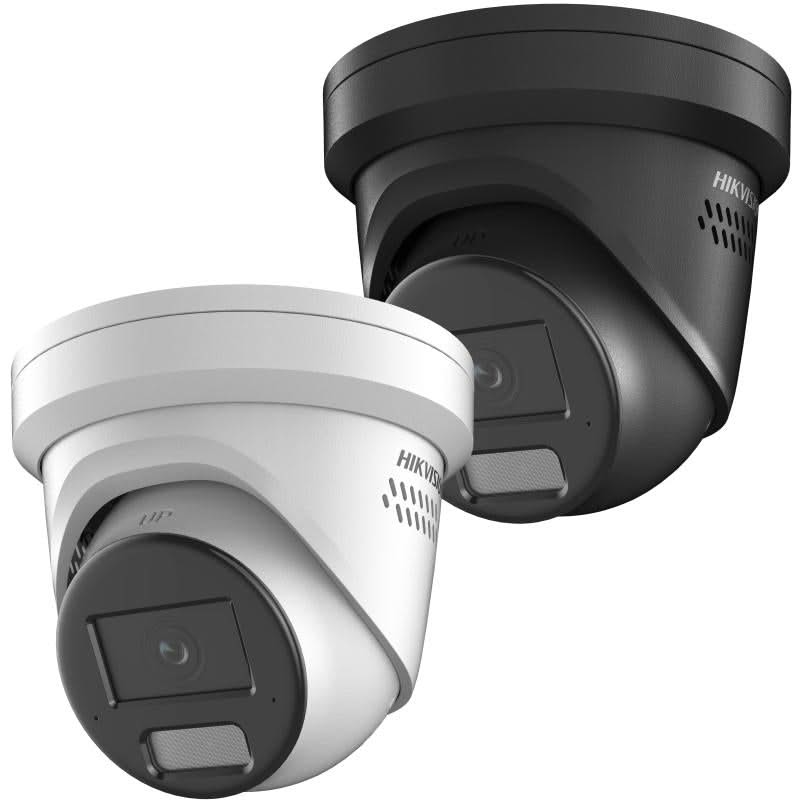

The DS-2CD2346G2H-IS2U/SL offers an advanced solution to security challenges, with an unmatched combination of technology and reliability.

Darkfighter technology
Through Hikvision's Darkfighter technology, this model with extremely low lux value provides a colour image at very low ambient light in the dark.

Power Over Ethernet:
All Acusense series models can be powered by PoE (Power over Ethernet) or 12volt. Via PoE, it is easy to connect to an optional PoE switch/adapter or PoE Network Video Recorder.

Newest Series:
With this new series of cameras from Hikvision you can reliably filter and retrieve incidents. Combined with the sharp day and night images, this is an ideal camera for around the home and/or business.

Alarm filter:
Hikvision IP cameras from the Acusense series, are advanced IP cameras with a false alarm filter.
This false alarm filter means that the camera has technology on board that ensures that there is a reduction in unwanted recordings.
For example, this Acusense camera can differentiate between people and vehicles.

This makes the Acusense camera less immune to things like flying leaves or paper, shadow changes, vehicle headlights, sunlight and so on.
This gives you more reliable notifications and recordings.

This camera features:
- View images anywhere in the world via Hik-Connect.
- Store images on NVR or SD card.
- 4 Megapixel lens with 109° degree viewing angle.
- 30 metres night vision.
- Micro SD slot up to 512GB.
- Built-in microphone.
- PoE
- Flash light and siren
- 2 way audio

- Sharp 4 MP image quality: Hear-sharp images, even in challenging lighting conditions.
- 120 dB WDR technology: Preserves brightness and detail under strong backlight.
- Advanced H.265+ compression: Optimises storage and bandwidth without loss of quality.
- Deep learning: Accurate detection of people and vehicles for more efficient monitoring.
- Instant action with built-in two-way audio: Makes real-time communication and alerts possible.
- Active strobe and audio alarm: Deterring intruders instantly.
- Expandable storage of up to 512GB: SD card slot for flexible local storage options.
- IP67-certified: Resistant to water and dust for deployment in various environments.
- Professional interfaces: Includes audio and alarm connections for integration into complex systems.

Specifications:

• Camera

• Imaging sensor: 1/3" Progressive Scan CMOS

• Max. Resolution: 2688 × 1520

• Min. Illumination: Colour: 0.001 Lux @ (F1.0, AGC ON), Black/White: 0 Lux with IR

• Shutter speed: 1/3 s to 1/100,000 s

• Day & Night: IR-cut filter

• Hoekaanpassing:

  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotation: 0° to 360°

• Lens

• Lens Type: Fixed focal length lens, 2.8 mm and 4 mm optional

• Focal Length & Field of View:

  • 2.8 mm: horizontal FOV 100°, vertical FOV 55°, diagonal FOV 120°
  • 4 mm: horizontal FOV 81°, vertical FOV 45°, diagonal FOV 95°

• Lens Mounting: M12

• Aperture Type: Fixed

• Diafragma: F1.0

• Scherptediepte:

  • 2.8 mm: 1.9 m to ∞
  • 4 mm: 2.5 m to ∞

• DORI:

  • 2.8 mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m
  • 4 mm: D: 78 m, O: 31 m, R: 15 m, I: 7 m

• Verlichting

• Additional Illumination Type: IR

• Additional Illumination Range: Up to 30 m

• Smart Supplementary Lighting: Yes

• IR Wavelength: 850 nm

• Video

• Hoofdstream:

  • 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Substream:

  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

• Derde Stream:

  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

  The third stream is supported under certain settings.

• Video Compressie:

  • Hoofdstream: H.265/H.264/H.264+/H.265+
  • Substream: H.265/H.264/MJPEG
  • Third stream: H.265/H.264

  Third stream is supported under certain settings.

• Video bit rate: 32 Kbps to 8 Mbps

• H.264 Type: Baseline Profile, Main Profile, High Profile

• H.265 Type: Main Profile

• Bit rate control: CBR, VBR

  .

• Scalable Video Coding (SVC): H.264 and H.265 encoding

• Region of Interest (ROI): 1 fixed area for main stream and substream

• Audio

• Audio Compressie: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC

• Audio Type: Mono sound

• Audiobitsnelheid:

  • 64 Kbps (G.711ulaw/G.711alaw)
  • 16 Kbps (G.722.1)
  • 16 Kbps (G.726)
  • 32 to 192 Kbps (MP2L2)
  • 8 to 320 Kbps (MP3)
  • 16 to 64 Kbps (AAC-LC)

• Audio Sampling Frequency: 8 kHz/16 kHz/32 kHz/48 kHz

• Omgevingsruisfiltering: Ja

• Netwerk

• Protocols:TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP

• Simultaneous Live Images: Up to 6 channels

• API: ONVIF (Profile S, Profile T, Profile G), ISAPI, SDK, ISUP

• Users/Hosts: Up to 32 users

  • 3 user levels: administrator, operator and user

• Beveiliging:

  • Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, timeout settings check, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)

• Netwerkopslag: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)

  .

• Client: iVMS-4200, Hik-Connect

• Web Browser: Plug-in requires live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

• Afbeelding

• Image settings: Rotation mode, saturation, brightness, contrast, sharpness, gain, white balance, customisable via client software or web browser

• Day/Night Switch: Day, Night, Auto, Schedule

• Image Enhancement: BLC, HLC, 3D DNR, Defog

• SNR: ≥ 52 dB

• Wide Dynamic Range (WDR): 120 dB

• Privacy Mask: 4 programmable polygon privacy masks

• Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port

• Onboard Opslag: Built-in memory card slot, supports microSD/microSDHC/microSDXC card, up to 512GB

• Built-in Microphone: Yes, 2 built-in microphones

• Built-in Speaker: Max power consumption: 2 W, max sound pressure level: 10 cm: 105 dB

• Audio: 1 input (line-in), two-core terminal block, max input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: unbalanced, 1 output (line-out), two-core terminal block, max output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: unbalanced

• Alarm

• 1 Input, 1 Output: Max 24 VDC/24 VAC, 1 A

• Resettoets: Ja

• Evenement:

  • Basic event: motion detection (supports alarm triggering by specified target types (human and vehicle)), video damage alarm, exceptions
  • Coupling: Upload to FTP/NAS/memory card, notifications to surveillance centre, send email, trigger alarm output, trigger recording, trigger capture, audible alert, strobe light

• Slim Event: Scene change detection

• Diepe Leerfuncties

  • Gezichtsherkenning: Ja
  • Perimeter protection: Line crossing, intrusion, region entry, region exit

• Algemeen

• Power supply: 12 VDC ± 25%, 1.34 A, max 16 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3at, Class 4, max 18 W

• Materiaal: Housing: metal, main body: metal

• Dimensions: Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")

• Package dimensions: 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")

• Weight: Approximately 780 g (1.71 lb.)

• Weight with package: Approximately 1210 g (2.67 lb.)

• Opslagomstandigheden: -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condensing)

  .

• Start-up and operating conditions: -30 °C to 60 °C (-22 °F to 140 °F), Humidity 95% or less (non-condescending)

• General Functions: Heartbeat, mirror, flash log, password reset via e-mail, pixel counter, anti-banding

• Languages: 33 languages, including Dutch, English, Russian, Italian, Spanish, French, and more.

• Flitslicht

  • SRB model: red and blue light
  • SL model: white light
