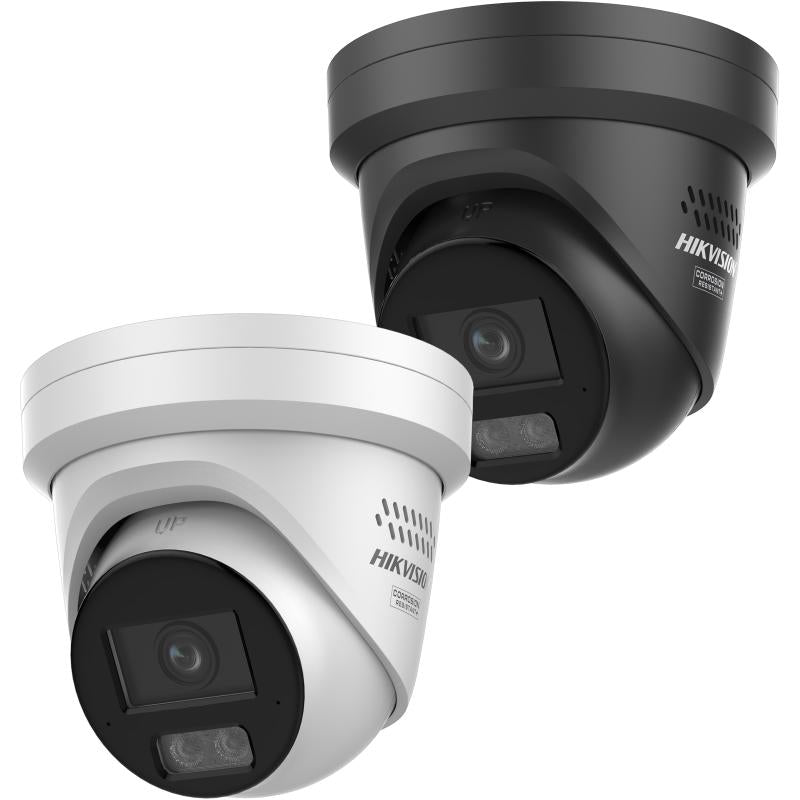

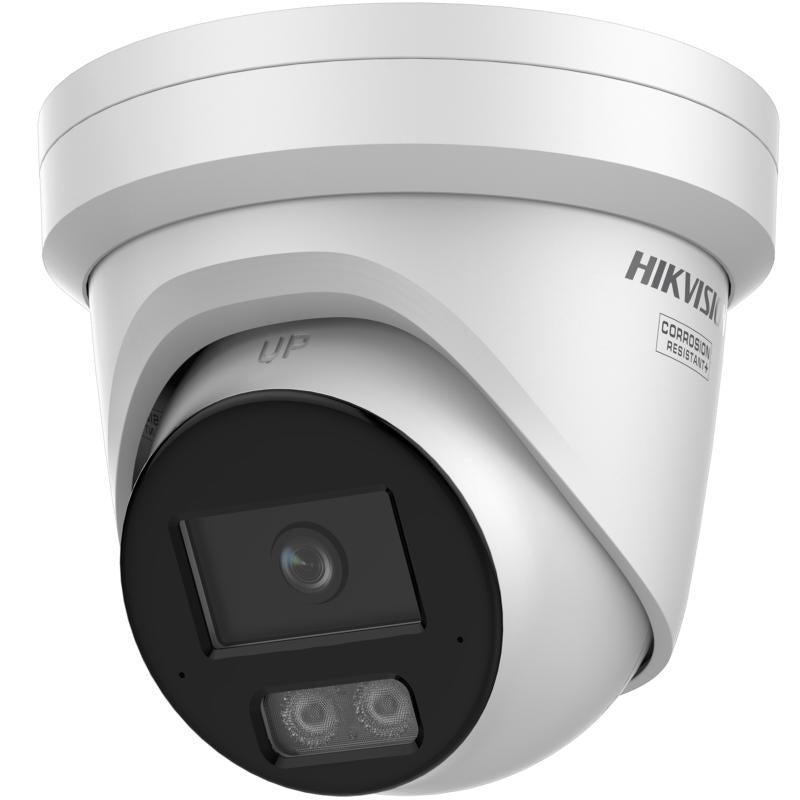

Hikvision ColorVu 3.0 Hybrid offers the freedom to choose or combine: 3 functions in 1 camera. This camera series is suitable both as a day/night camera and for 24/7 colour imaging. The combination of ColorVu technology with IR functionality makes the camera versatile. Thanks to its super aperture and highly light-sensitive sensor, this camera delivers unrivalled image quality, even in low light. Advanced noise reduction and an innovative light compensation function (Auto WDR) ensure a clear and balanced image under all conditions.

With Smart Hybrid Light, the camera automatically switches between lighting modes. In low-light situations, night mode with IR illumination is activated. Upon detection of a person or vehicle, the camera immediately switches to colour mode with white LED backlighting. This optimally highlights the scene, displays objects in colour and creates a deterrent effect for unwanted visitors!

• High resolution 4MP camera with 25fps
• 24/7 colourful images with enhanced ColorVu3.0 technology
• HikAI-ISP for superior noise reduction and sharper details
• Automatic WDR to prevent overexposure and loss of detail
• Smart hybrid illumination smart switching between night vision with IR and colour vision
• Person and vehicle detection Acusense 2.0 technology for targeted security
• Arrayed Dual-Mic for enhanced sound recording and speech clarity
• Anti-corrosion design (NEMA4X) for robust performance in various conditions
• IP67 rating for water and dust resistance

Specificaties:

• Camera
• Image Sensor: 1/1.8" Progressive Scan CMOS
• Max. Resolution: 2688 × 1520
• Min. Illumination:
  • Colour: 0.0001 Lux @ (F1.0, AGC ON)
  • 0 Lux with light
• Shutter speed: 1 s to 1/100,000 s
• Day & Night: IR cut filter
• Angle adjustment:
  • Pan: 0° to 360°
  • Tilt: 0° to 75°
  • Rotation: 0° to 360°
• Lens
  • Lens designation: Fixed focal length lens, 2.8 and 4 mm optional
  • Focal length & FOV:
    • 2.8 mm, horizontal FOV 111.1°, vertical FOV 57.6°, diagonal FOV 138.5°
    • 4 mm, horizontal FOV 95.2°, vertical FOV 48.3°, diagonal FOV 117.4°
  • Lensbevestiging: M16
  • Aperture Type: Fixed
  • Diafragma: F1.0
  • Depth of field:
    • 2.8 mm: 2.5 m to ∞
    • 4 mm: 3.1 m to ∞
  • DORI:
    • 2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m
    • 4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m
• Verlichter
  • Type of Supplementary Light: White Light, IR
  • Range Supplementary Light: Up to 30 m
  • Slim Supplementary Light: Yes
  • IR Wavelength: 850 nm
• Video
  • Hoofdstream:
    • 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
    • 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Substream:
    • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
    • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
  • Third Stream:
    • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
    • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
      The third stream is supported under certain settings.
  • Video compression:
    • Hoofdstream: H.265/H.264/H.264+/H.265+
    • Substream: H.265/H.264/MJPEG
    • Third stream: H.265/H.264
      Third stream is supported under certain settings.
  • Video bitrate: 32 Kbps to 8 Mbps
  • H.264 Type: Baseline Profile, Main Profile, High Profile
  • H.265 Type: Main Profile
  • Bitrate check: CBR, VBR
  • Scalable Video Codec (SVC): H.264 and H.265 encoding
  • Region of Interest (ROI): 1 fixed region for main stream
• Audio
  • Audio Type: -2U: Mono sound
  • Audiobitrate:
    • -2U: 64 Kbps (G.711ulaw/G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 16 Kbps to 64 Kbps (AAC-LC) / 32 to 192 Kbps (MP2L2) / 8 to 320 Kbps (MP3)
  • Audio compression: -2U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
  • Audio sampling frequency: -2U: 8 kHz/16 kHz/32 kHz/48 kHz
  • Environmental noise filtering: -2U: Yes
• Netwerk
  • Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
  • Simultaneous Live Playback: Up to 6 channels
  • API: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
  • User/Host: Up to 32 users
    • 3 user levels: administrator, operator, and user
  • Beveiliging:
    • Password protection, complex password, HTTPS encryption, 802.1X-authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, timeout settings check, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
  • Netwerkopslag: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
  .
  • Client: iVMS-4200, Hik-Connect, Hik-Central
  • Webbrowser:
    • Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+
    .
    • Local service: Chrome 80+, Firefox 80+, Edge 89+
• Beeld
  • Screen parameters Switch: Yes
  • Beeldinstellingen: Rotation mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable via client software or web browser
  .
  • Day/Night Switch: Day, Night, Auto, Schedule
  • Beeldverbetering: BLC, HLC, 3D DNR, Distortion correction, Defog
  • SNR: ≥ 52 dB
  • Wide Dynamic Range (WDR): 130 dB
  • Beeldstabilisatie: EIS
  • Privacy Mask: 4 programmable polygon privacy masks
• Interface
  • Ethernet interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Onboard Opslag: Built-in memory card slot, supports microSD/microSDHC/microSDXC card, up to 512GB
  • Audio: Built-in Microphone:
    • -2U: Eroded dual-microphone
  • Resetknop: Ja
• Evenementen
  • Basis Evenement: Motion detection (supports alarm triggers by specified target types (human and vehicle)), video decay alarm, exception
  • Smart Event: Scene change detection
  • Link: Upload to FTP/NAS/memory card, notifications to monitoring centre, activate recording, capture recording, send e-mail
  • Deep Learning Function: Face recognition
  • Perimeter Protection: Line Crossing, Intrusion, Region Entry, Region Exit
    • Supports alarm triggers by specified target types (human and vehicle)
• Algemeen
  • Current: 12 VDC ± 25%, 0.7 A, max. 8.5 W, Ø5.5 mm coaxial power connector, reverse polarity protection,
    • PoE: IEEE 802.3af, Class 3, max. 11 W
  • Material: Cover: Metal, main body: Metal
  • Dimensions: Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5")
  • Packaging dimensions: 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3")
  • Weight: Approximately 750 g (1.7 lb.)
  • Weight with packaging: Approximately 1140 g (2.5 lb.)
  • Opslagcondities: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  .
  • Start-up and operating conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  .
  • General Function: Heart rate, mirror, flash log, password reset via e-mail, pixel counter, anti-banding
  • Language: 33 languages
