Product form

DS-7604NXI-K1 4 channels 4K without POE

The Hikvision DS-7604NXI-K1 Network Video Recorder is a 4-channel Acusense recorder. Acusense is a technology that allows the recorder to recognise... Read more

Delivery time 1-2 business days

€207,28€171,31 -14% -14%
€177,52€146,71 Incl. VATExcl. VAT

    Cheaper somewhere else?

    Lowest price guarantee

    With our lowest price guarantee, you no longer have to compare, we already do that for you. Find the exact same product cheaper elsewhere before you buy? Let us know and we will adjust our price.

    The small print

    • The product has the same specifications and color.
    • The product is sold by a Dutch brand dealer (warranty included).
    • The product is available from stock. You can pick it up immediately or it will be delivered to your home the next day.
    • The price guarantee is given on the sale price, without shipping costs or other services.
    • The lowest price guarantee is valid until the moment of purchase.

    • American Express
    • Apple Pay
    • Google Pay
    • Klarna
    • Maestro
    • Mastercard
    • PayPal
    • Union Pay
    • Visa
    • Showroom in Gorinchem
    • 3500+ customers give us a 4.71 / 5
    • Free returns within 14 days

    check Associated products for DS-7604NXI-K1 4 channels 4K without POE

    Size chart

    The Hikvision DS-7604NXI-K1 Network Video Recorder is a 4-channel Acusense recorder. Acusense is a technology that allows the recorder to recognise and record people and/or vehicles on all connected cameras. This reduces useless recordings such as recordings of leaves blowing around. The recorder features a Hdmi output for connecting a TV or Monitor, a network output for connecting to the network/APP, a 1x SATA connection for a Hard disk (not included as standard, select below) The recorder can record cameras connected in the network (poe switch required)

    Hikvision AcuSense NVR 4-channel IP camera up to 12MP , classification of people and vehicles for motion detection ( MD2.0) on 4 channels, fast target search and 1-channel face recognition. (video stream) or 2-channel on face recognition with photos.

    This recorder with Acusense technology can apply Acusense technology to simple cameras.

    For older Hikvision IP cameras and the newer Acusense, this can be useful. So that people or vehicles are recognised for recording and/or push notifications. Normal recorders with simple cameras cannot distinguish moving trees from people or vehicles, for example, a consequence is that the recorder records a lot of empty recordings. So it is a very helpful technique that helps to target recordings on people and/or vehicles

    Specificaties:

    • Intelligente analyses
    • AI by device - Facial recognition, perimeter security, motion detection 2.0
    • AI by camera - Face recognition, perimeter security, throwing objects out of buildings, motion detection2.0, ANPR, VCA

      Face recognition
    • Face features - N/A
    • Face detection and analysis - Comparison of face images, capturing human faces, searching for face images
    • Face photo library - Up to 16 face photo libraries, with up to 5,000 face photos in total (each photo ≤ 1MB, total capacity ≤ 73MB)
    • Face Detection and Analysis Performance - 1-channel, 4 MP
    • Face photo comparison (captured from camera) - 2-channel

      Motion detection 2.0
    • Per device - All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarms
    • Via camera - All channels

      Perimeter protection
    • Perimeter camera - 1-channel, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarms
    • Via camera - All channels

      Video and audio
    • IP video input - 4 channels
    • Incoming bandwidth - 40 Mbps
    • Outgoing bandwidth - 80 Mbps
    • HDMI output - 1-channel, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz VGA output 1-channel, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
    • Video output mode - HDMI1/VGA simultaneous output is default, HDMI1/VGA can be set to independent
    • Output CVBS output - N/A
    • Audio output - 1-channel, RCA (linear, 1 KΩ)
    • Two-way audio - 1-channel, RCA (2.0 Vp-p, 1 KΩ, using audio input)

      Decoding
    • Decoding format - H.265/H.265+/H.264+/H.264
    • Recording resolution - 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
    • Synchronous playback - 4-channels
    • Decoding capabilities -
      - AI on: 1-kan.@12 MP (30 fps)/1-kan.@8 MP (30 fps)/3-kan.@4 MP (30 fps)/6-can.@1080p (30 fps)
      - AI off: 1-can. at 12 MP (30 fps)/2-can. at 8 MP (30 fps)/4-can. at 4 MP (30 fps)/8-can. at 1080p (30 fps)
    • Stream type - video, video and audio
    • Audiocompressie - G.711ulaw/G.711alaw/G.722/G.726/AAC

      Netwerk
    • Remote connection - 128
    • API - ONVIF (profile S/G); SDK; ISAPI
    • Compatible browser - IE11, Chrome V57, Firefox V52, Safari V12, Edge V89 or higher
    • Network protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
    • Network interface - 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface

      PoE
    • Interface - 4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
    • Power - ≤ 50 W
    • Standard - IEEE 802.3af/at

      Hulpinterface
    • SATA - 1 SATA interface
    • Capacity - Maximum 10 TB capacity for each HDD
    • USB interface
      - Front panel: 1 × USB 2.0;
      - Rear panel: 1 × USB 2.0
    • Alarm in/out - N/A (4/1 is optional)

      General
    • Power supply - 12 VDC, 1.5 A
    • Consumption - ≤ 10 W (without HDD)
    • Operating temperature - -10 °C to 55 °C (14 °F to 131 °F)
    • Operating humidity - 10% to 90%

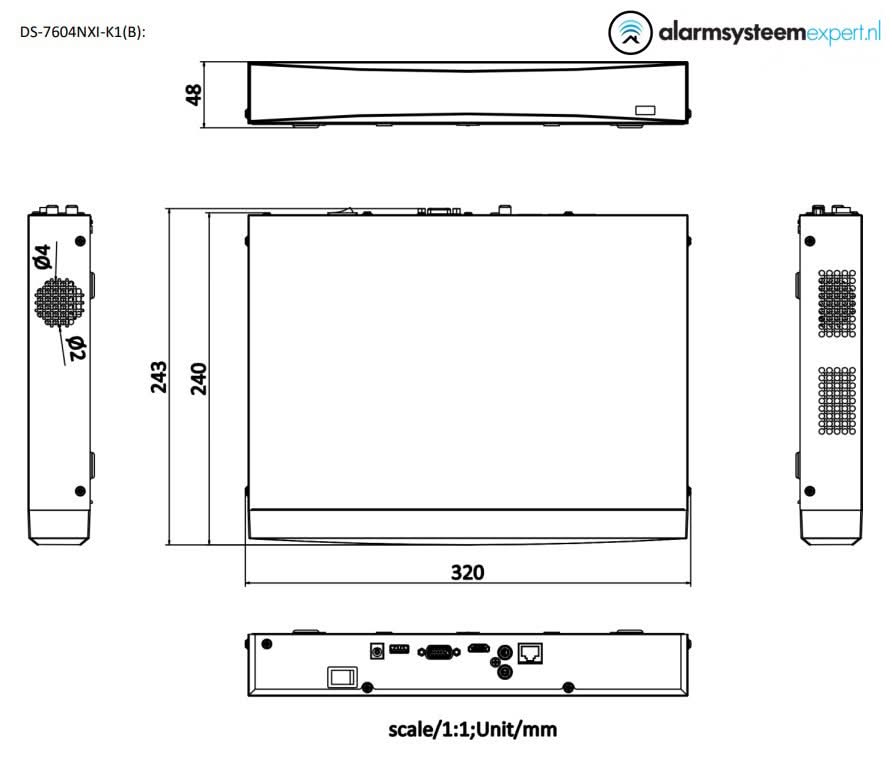

    • Dimensions - (W × D × H) 320 mm × 240 mm × 48 mm (12.6"× 9.4" × 1.9")
    • Weight - ≤ 1 kg (without HDD, 2.2 lb.)
    • Certification - CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 Certification CE, CB, KC, Reach, WEEE, RCM, UKCA, LOA achieved
