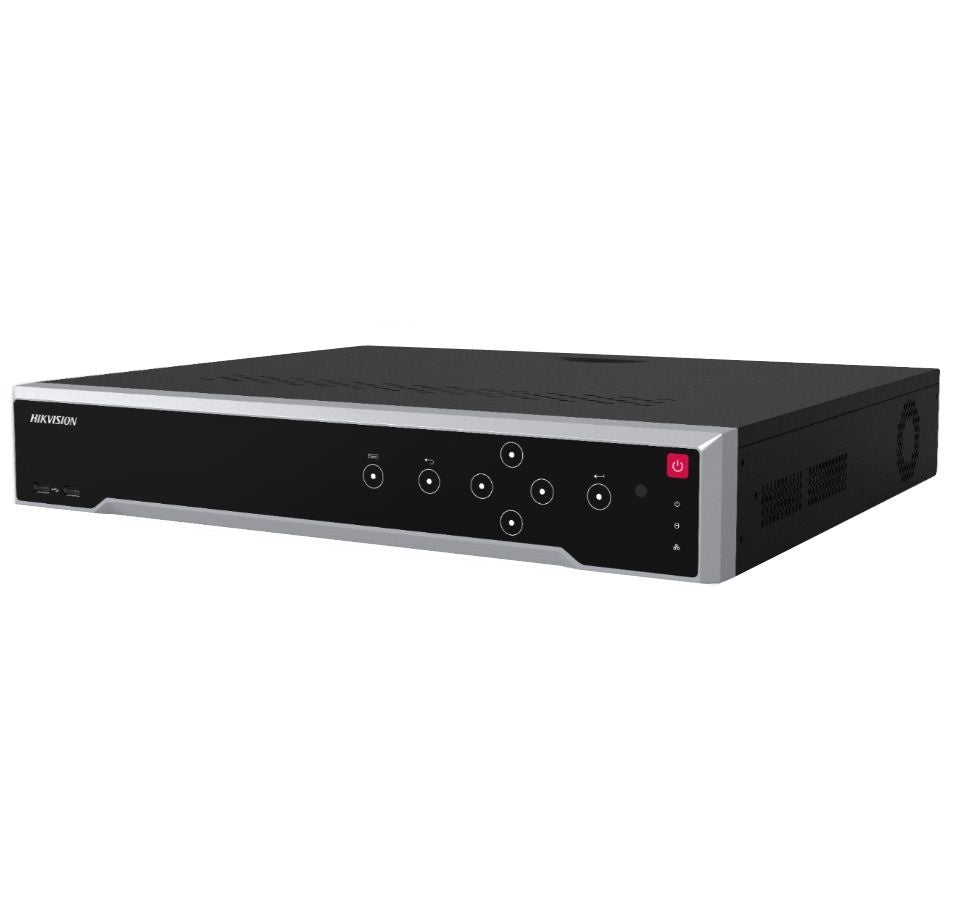

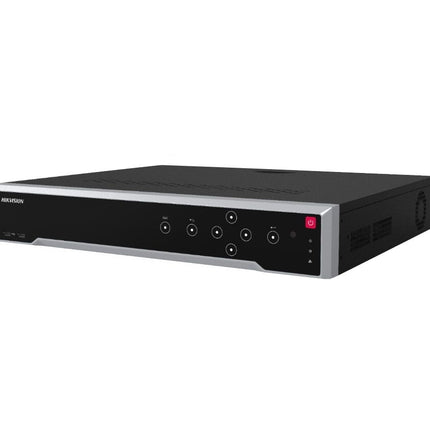

Hikvision DS-7716NI-M4/16P NVR with 16x PoE channels, 8K, 4x SATA, this 1.5U Network Video Recorder is a heavy duty recorder for the demanding customer with many 4K or 8K cameras in the system.

Belangrijke kenmerken;

• IP-Video-Ingang16-kan
• Up to 32 MP resolution
• *: After ultra HD resolution mode is enabled, the NVR supports up to 8-channel 32 MP/24 MP IP video inputs.
• Incoming Bandwidth256 Mbps
• Outgoing Bandwidth256 Mbps
• HDMI 1-Output8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• HDMI 2-Output4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz , 1024 × 768/60Hz
• VGA Output1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Video Output ModeHDMI1/VGA simultaneous output, HDMI2/VGA independent output
• CVBS Output1-channel, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Audio Output1-channel, RCA (linear, 1 KΩ)
• Way Audio1-channel, RCA (2.0 Vp-p, 1 KΩ, via audio input)

Decodering

• DecodeerformaatH.265+/H.265/H.264+/H.264
• Recording Resolution32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
• *: After the ultra HD resolution mode is enabled, the NVR supports up to 8-channel 32 MP/24 MP IP video inputs.
• Synchroon Afspelen16-kan
• Decodeerbaarheid2-kan@32 MP (30 fps)/2-kan@24 MP (30 fps)/4-kan@12 MP (20 fps)/8-kan@8 MP (25 fps)/16-kan@4 MP (30 fps)
• Dual-Stream Recording Support
• Stream typeVideo, video and audio
• AudiocompressieG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Netwerk

• Remote Connection128
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

• Couple16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power≤200W
• Standard IEEE 802.3 af/at
• INVAL
• RAID-TypeNVT

Hulpinterface

• ESATA1 eSATA interface
• SATA4 SATA-interfaces
• CapacityUp to 14 TB capacity for each HDD
• Serial Interface2 RS-485 (half-duplex), 1 RS-232
• USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
• Alarm In/Out16/9
• Power 12VAdjustable 12 VDC, 1 A power output for external alarm device; Power turns on when alarm output is activated.
• *: Ctrl 12V power supply is controlled by alarm output 9.
• Current 12V12 VDC, 1 A output power

Algemeen

• Power supply100 to 240 V AC, 50 to 60 Hz
• Consumption≤15W (without HDD and PoE off)
• Operating temperature-10 °C to 55 °C (14 °F to 131 °F)
• Working humidity10% to 90%
• Chassis19-inch rack-mounted 1.5U chassis
• Size (W × D × H)445 × 400 × 75 mm ( 17.5" × 15.7" × 3.0")
• ≤ 5 kg (without HDD, 11 lb.)
