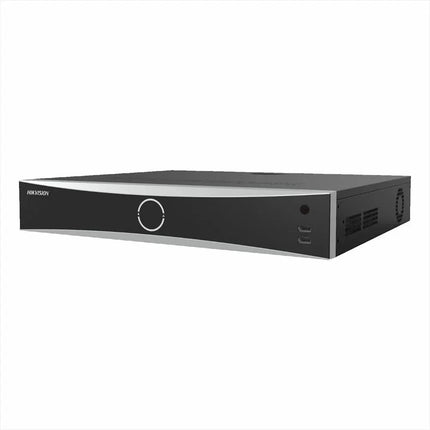

Hikvision DS-7732NXI-I4/16P/S Network Video Recorder Acusense (NVR) 4 SATA, 4K Ultra HD
For your information: Recorders have fans on board that cool the processor, these make noise!
This is about 60Db we therefore advise not to place the recorder in the house but to hide it away, for example in a meter cupboard.
The AcuSense NVR is a powerful recorder suitable for resolutions up to 12MP. The recorder is equipped with AcuSense technology. AcuSense is an advanced algorithm that is capable of recognising vehicles and persons, enabling highly accurate detection. This intelligent functionality can be applied to up to 4 cameras with a maximum resolution of 2MP. As the intelligence is in the recorder, AcuSense technology can be applied with normal cameras.
The Hikvision DS-7732NxI-I4/16P/S is a 32-channel NVR (HD Recorder) and features 16 PoE inputs and 4 SATA connections and has a 4K Ultra HDMI output. A total of 32 cameras can be connected to it; 16 via the built-in PoE switch and 16 via an external PoE switch, for example.
Via the internal PoE switch, 16 cameras are powered directly. This way, you do not need to set up a power supply point near the cameras.
The HD recorder automatically provides the cameras with the correct IP addresses. This makes installation and configuration easy to do yourself.
The recorder can operate stand-alone with an optional monitor. It is also possible to connect this NVR to the network or an internet router via the LAN port so you can use a PC or Laptop/Smartphone to view the images.
This HD recorder records 32 channels in HD quality. Here, you can opt for motion-based recording. This way, in case of an incident, you can easily search back in the timeline where movements are recorded. Interesting recordings can be archived on a USB stick.
The HD recorder can be set up in the Dutch language!
Hikvision AcuSense NVR 32-channel IP camera up to 12MP with 16 x PoE, support for false alarm filtering for 4-channel, behaviour (line crossing and intrusion) for network camera detection with up to 4 MP resolution. classification of people and vehicles for motion detection on 32 channels, fast target search and 1-channel face recognition. (video stream) or 4-channel on face recognition with photos.
NVR 32 ch IP camera channels, recording resolution up to 12MP/ch, max 256Mbps recording bandwidth , HDMI(4K), VGA output up to 1080p (2nd HDMI up to 1080P), local display capacity 16-ch@1080Pch (4ch 4K), 4 SATA, 3 USB, 1 x RJ45(10/100/1000), Supports Multi-brand network cameras and ONVIF , 16 PoE ports af/at (total max 200W),power supply 230Vac, Smart analysis capabilities: False alarm filtering for behaviour detection on 4 channels , (line crossing and intrusion) for network camera with resolution less than or equal to 2 MP.( face recognition and perimeter not at the same time )
Technical specifications;
This NVR records up to 32 channels with a maximum bandwidth of 256Mbit/s.
- Max. 256Mbit/s recording, max 256Mbit/s streaming
- HDMI, VGA output at up to 4K Ultra HD resolution, BNC output
- Front panel control, USB mouse, remote control
- Up to 4 HDD SATA with quota and group management, 2 USB2.0
- Web support for Internet Explorer, Safari, Firefox
- Free apps for iPhone, Android (iVMS-4500)
- Free VMS software for PC and Mac (iVMS-4200)
- Up to 12 Megapixels resolution recording

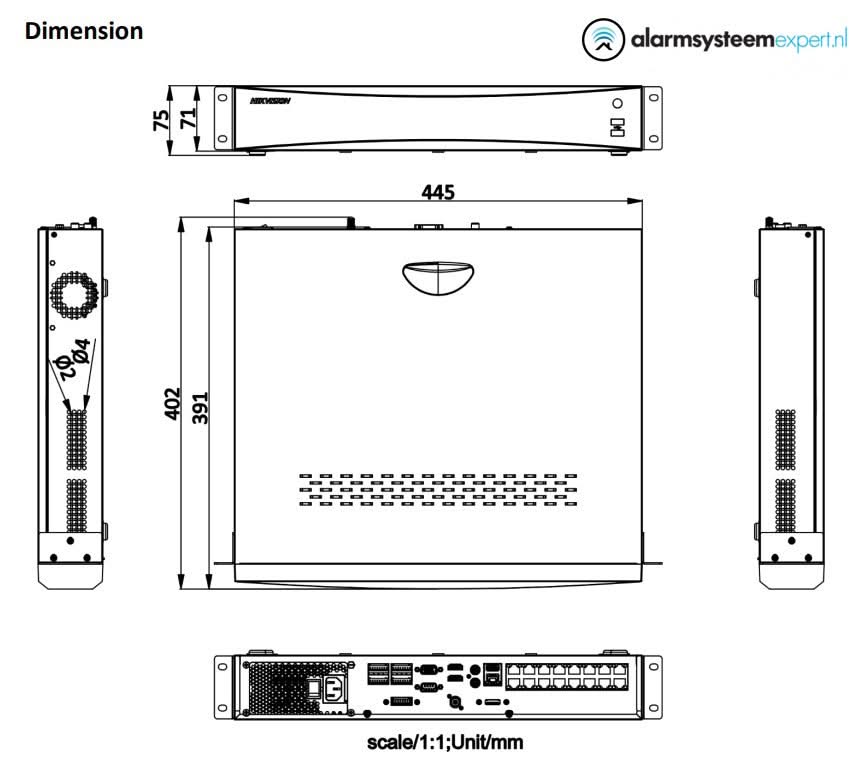

19" rack mountable
