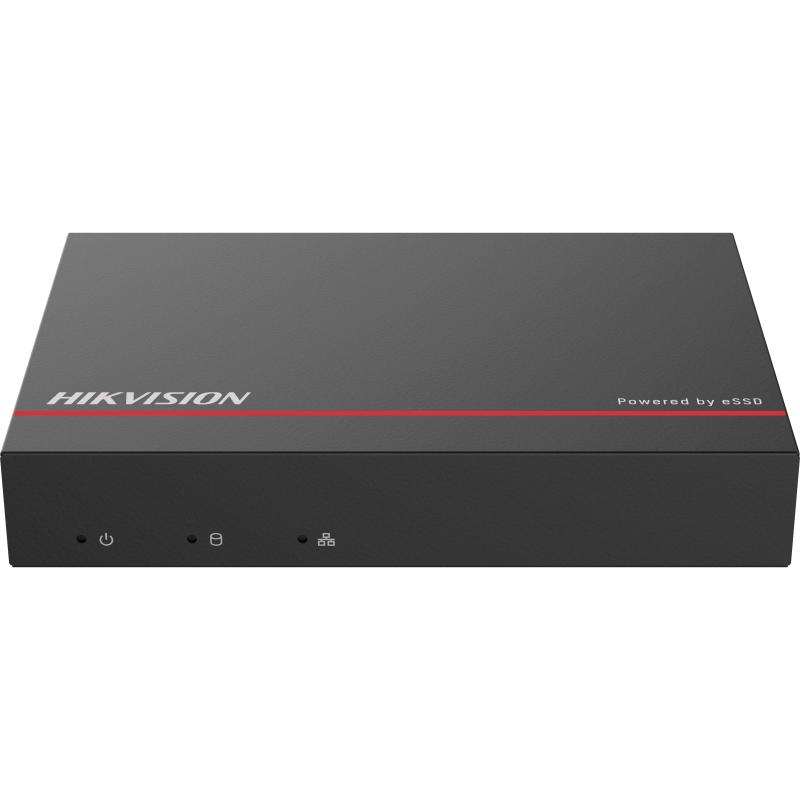

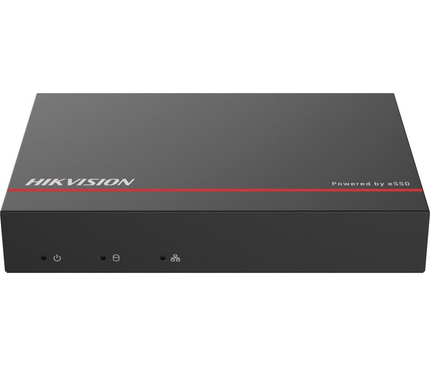

Hikvision DS-E08NI-Q1/8P, Incl. 2TB SSD, Suitable for 8 IP cameras 8x PoE

Hikvision eSSD NVR is an updated take on what NVRs are going to look like. This recorder is particularly compact and energy-efficient. The recorder is capable of recording cameras up to 4MP. The playback is up to 1080p and has an outgoing bandwidth of 60Mbps. The eNVRs are available with PoE and without PoE

Compact NVR with full functionality

Because of its very compact size, the NVR can easily be placed anywhere. In meter cupboard, TV cabinet or directly behind the monitor. Despite its compact size, the NVR functions just like other recorders from Hikvision. Includes support for AcuSense detection

Energy-efficient, stable and shock-proof

Is this NVR thanks to the application of an SSD hard drive. This drive consumes much less energy than traditional hard drives. In addition, an SSD is also less susceptible to vibrations and damage. Which also makes the NVR ideal for mobile solutions or temporary camera masts

Volledig stil

Because the eSSD NVR does not have a fan. The SSD gets less warm than a traditional drive. Therefore, no additional cooling is required. In addition, an SSD drive is also quieter than a traditional hard drive

Milieu vriendelijk

The eSSD consumes about 44% energy compared to an equal NVR with a traditional hard disk. Due to its compact size, the recorder also takes up less space and weight when transported, and the packaging in which the NVR is supplied is fully biodegradable

Available with PoE ports for Plug&play operation.

The eSSD NVR is available with and without PoE ports. The models with PoE ports are suitable for plug&play with Hikvision cameras

HDMI output and Decoding capacity for 4x 1080P or 2x 4MP, up to 60Mbps outgoing bandwidth.

The data processing capacity of an eSSD is currently still somewhat lower than a traditional disk so the eSSD has a longer lifespan. To keep the NVR compact, it is also equipped with a somewhat lighter GPU. As a result, the specifications for the display capacity of the local HDMI output are a little lower than other NVR

Specificaties:

• Video and audio
• IP video input - 8 channels
• Incoming bandwidth - 60 Mbps
• Outgoing bandwidth - 60 Mbps
• HDMI output - 1920×1080/60Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz

  Decoding
• Decoderingsformaat - H.265,Smart265,H.264,Smart264
• Capture resolution - 4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous playback - 4-channels
• Decoding capabilities - 4-channel@1080p (25 fps)
• Stream type - video, video and audio
• Audiocompressie - G.711ulaw/G.711alaw/G.722/G.726

  Netwerk
• External connection 128-ch
• Network protocol - TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Network interface - 1 RJ-45 10/100 Mbps self-adaptive Ethernet interface

  PoE

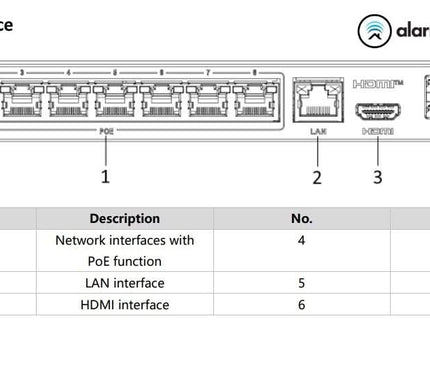

• Interface - 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power - ≤ 58 W
• Standard - IEEE 802.3 af/at

  Interface
• Capacity - 2TB SSD (pre-installed)
• USB interface - Rear panel: 2 × USB 2.0

  General
• Power supply - 48VDC, 1.36A
• Consumption - ≤ 10W (with SSD)
• Operating temperature - -10 °C to 50 °C (14 °F to 122 °F)
• Operating humidity - 10 to 90%

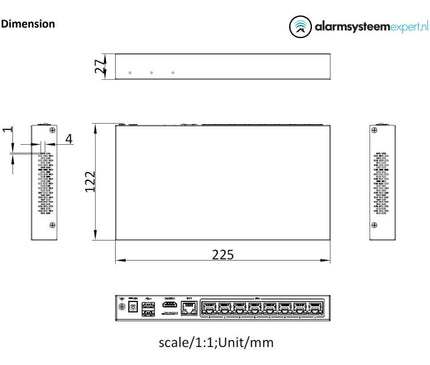

• Dimensions - (W × D × H) 225 ×122 ×27 mm (8.9" × 4.8" × 1.1")
• Weight - ≤ 0.5 kg
• Certification - CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017

  In the box
• DS-E08NI-Q1/8P 2TB
• Voeding
• Mouse
• Lan cable
• Handleiding
