The indoor stations can only display locally connected cameras on the screen, there is no functionality to display images via Hik-Connect on an indoor station connected stand-alone.

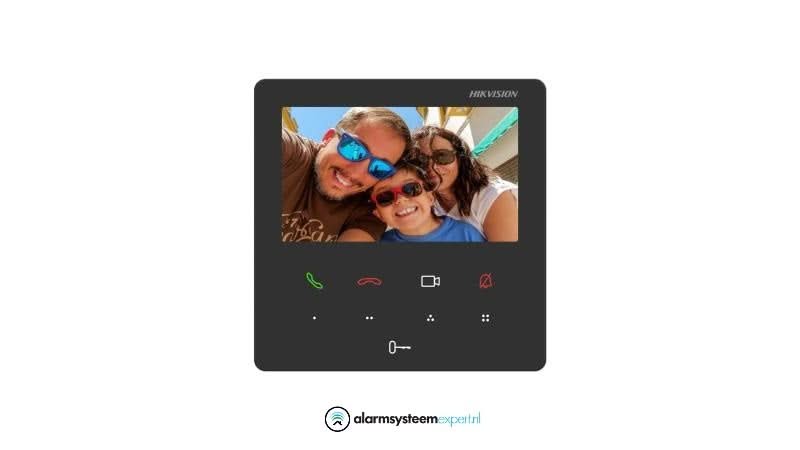

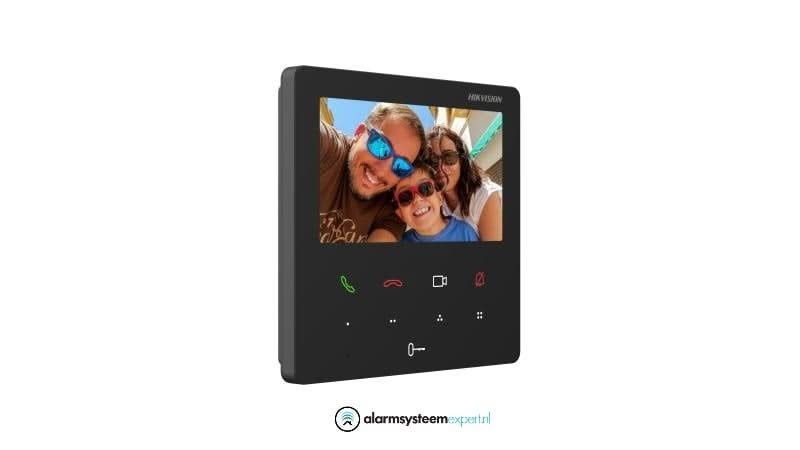

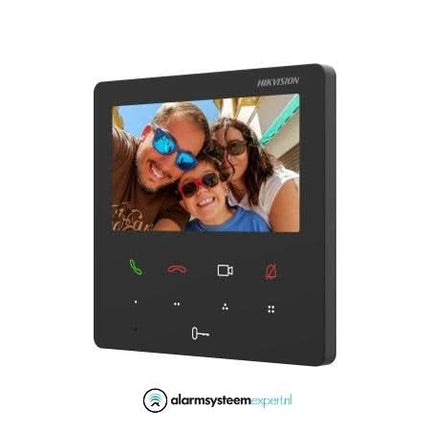

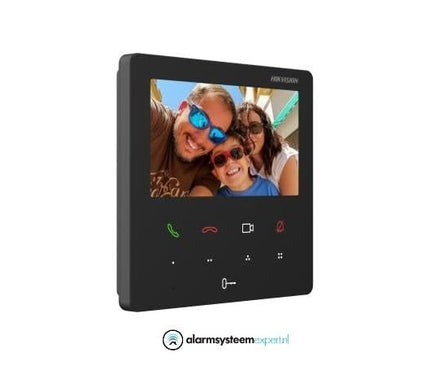

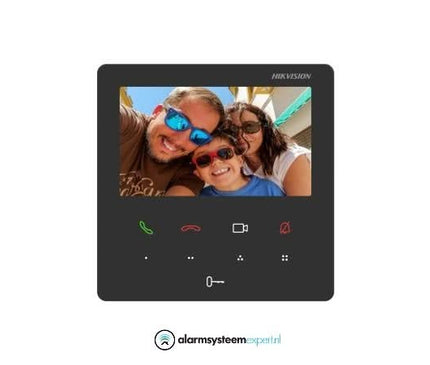

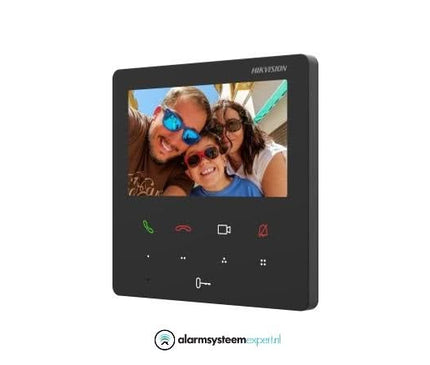

DS-KH6110-WE1 Indoor station with 4.3-inch screen PoE/12v WiFi

This new Hikvision DS-KH6110-WE1 intercom screen can be paired to all 2nd-generation Hikvision IP doorbells. It can be connected via PoE to a PoE switch or via WiFi via an optional (see related products) 12-volt adapter.

KH6 series IP-based indoor station with simple and quick installation: user-friendly design.
4.3-inch colourful touchscreen with 480 × 272 resolution.
Standard PoE power without additional power adapter
Handy Hik-Connect APP Mobile Control
View live video from door stations and paired cameras
Handy for users to customise functions to their own usage habits with 4 customised touch buttons

Specificaties:

• Systeemparameters
• Operating system - Linux
• ROM - 16MB
• RAM memory - 128MB
• CPU - Built-in processor

  Display parameters
• Screen size - 4.3 inches
• Control method - Capacitive touchscreen with 9 touch buttons
• Type - Colourful TFT
• Resolution - 480 × 272

  Audio parameters
• Audio compression standard - G.711 U, G.711 A
• Audio input - Built-in omnidirectional microphone
• Audio output - Built-in speaker
• Bit rate audio compression - 64 Kbps
• Audio quality - Noise reduction and echo cancellation
• Volume control - Adjustable

  Network parameters
• Communication protocol - TCP/IP, SIP, RTSP
• Wi-Fi standard - Wi-Fi 802.11 b/g/n, 2.4 GHz

  Device interfaces
• Network interface - 1 RJ-45 100 Mbps

  General
• Buttons - 9 touch buttons
• Installation - Wall-mount, table-mount
• Weight - With packaging: 336.6 g (0.7 lbs) Without packaging: 197.8 g (0.4 lbs)
• Operating temperature - -10 °C to 50 °C (14 °F to 122 °F)
• Operating humidity - 10% to 90%

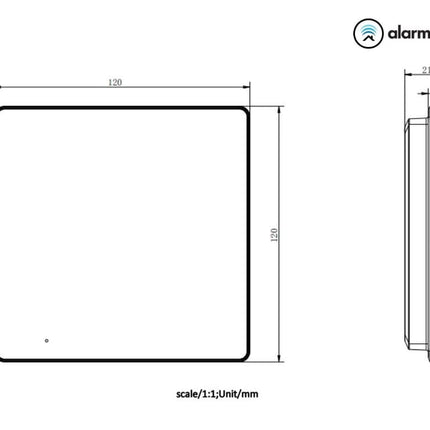

• Dimensions - 120 mm × 120 mm × 21 mm (4.7" × 4.7" × 0.83")
• Application environment - Indoor
• Power consumption - ≤ 4 W
