DS-KV6113-WPE1

• Standard PoE
• Card reader - Mifare format
• 2MP Full HD camera
• FOV 129° horizontal
• Noise reduction including echo filtering
• Support audio (built-in microphone and speaker)
• Weatherproof according to IP65
• 4x alarm input
• Configuration via internet possible
• WIFI & LAN connection
• 1 bell push
• 8x alarm input and 2x alarm output
• Built-in relay for door or gate opening
• Dimensions: 139 (high) x 65 (wide) x 30 mm (deep)

Product Info

DS-KH6320-WTE

• 7-inch TFT LCD screen
• Image resolution of 1024x600
• Touch screen operation
• Network connection via LAN 10/100Mbps
• RJ45 connector at the bottom of the back
• Standard Wi-Fi 802.11b/g/n (Wi-Fi quality is locally dependent)
• Built-in microphone and speaker
• Audio with noise reduction and echo filtering
• Power supply via PoE (IEEE802.3af)/12V DC
• SD card is supported up to 32GB
• 8x alarm input and 2x alarm output
• Dimensions: 140mm (high) x 200mm (wide) x 15.1mm (deep)

Product Info

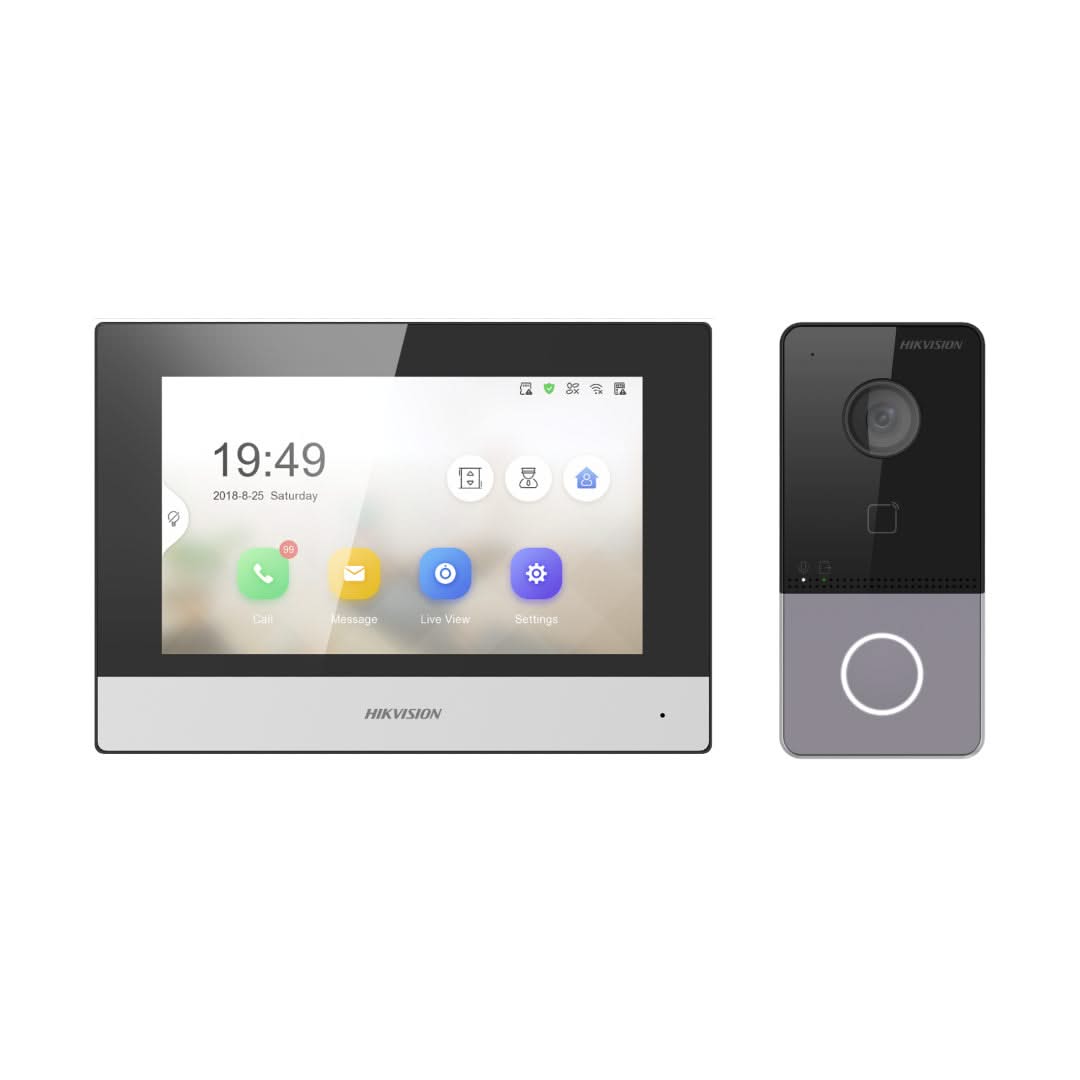

DS-KIS603-P(B)

This intercom set consists of the 1-pressure outpost from Hikvision that is equipped with WiFi and Ethernet connection that can feed the module via PoE. An electric door opener can also be connected to the external unit.
The outpost has a 2MP camera with wide-angle lens and True WDR.
In addition to the intercom, the internal unit also offers the option of viewing other Hikvision IP cameras when they are connected to the same network.

Switch

For the most stable connection, this kit can also be wired via PoE. Then you could order the following switch;

POE switch
