    Size chart

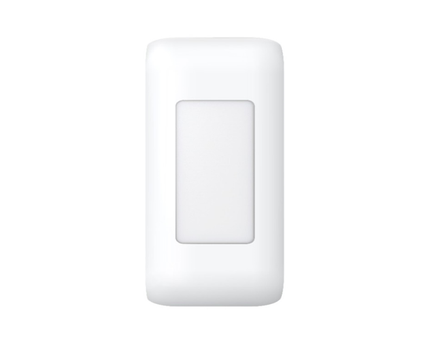

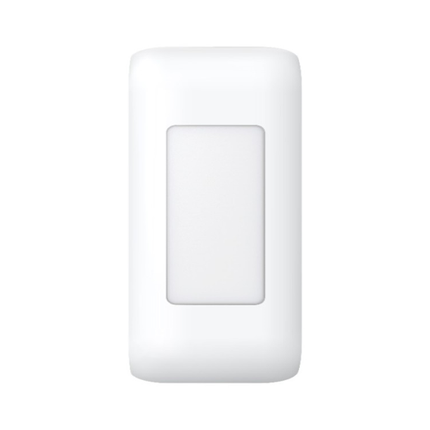

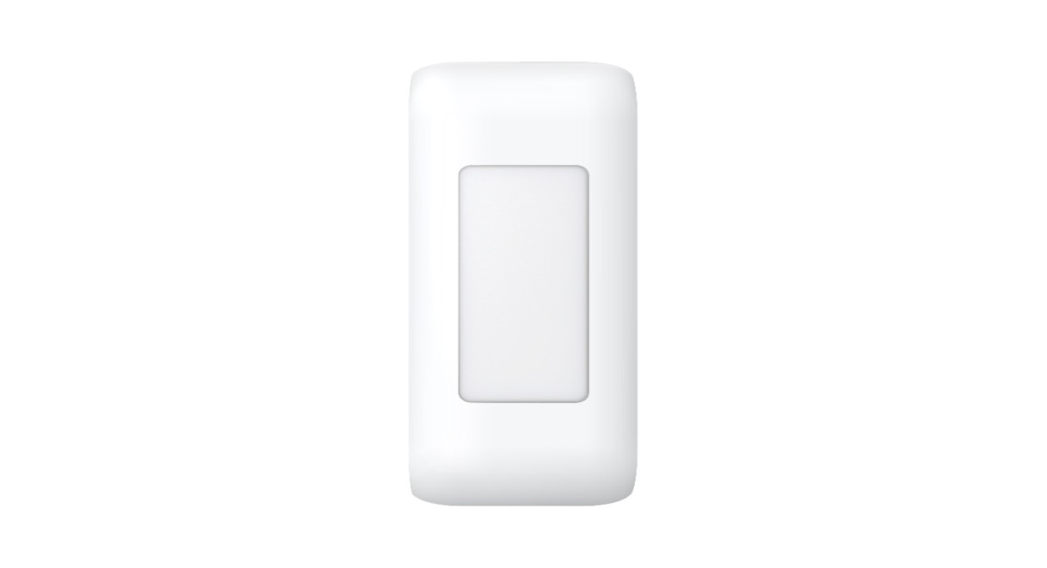

    DS-PDC5NC-EG2, wired internal nano curtain detector

    • Slim design for installation in window frames
    • Automatic sensitivity
    • Support for directional detection
    • Pack of 10 pieces

    Detectie Prestaties

    • Detection Method Passive Infrared
    • Detectiebereik 5m
    • Detectiehoek
    • Detectiezones 28
    • Detectable speed 0.3 ~ 2 m/s
    • Gevoeligheid Automatisch
    • Witlichtfilter 6500lux
    • Support for digital temperature compensation
    • Support for creep zone protection

    Providing

    • Ondersteuning bij digitale verwerking
    • Sabotagebeveiliging voorzijde
    • Support for directional detection

    Koppel

    • Alarmuitgang Normaal Gesloten
    • LED-indicator blauw (alarm)

    Overdragen

    • Overdrachtsmethode Bedraad
    • Elektrische kenmerken
    • Stroomverbruik 15mA Max
    • Power supply 9 to 16 VDC
    • Typical voltage 12 VDC

    Algemeen

    • Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
    • Storage temperature -20 °C to 60 °C (-4 °F to 140 °F)
    • Bedrijfsvochtigheid 10% tot 90%
    • Dimensions (WxHxD) 29.7 mm × 78.1 mm × 24.8 mm
    • 31,5 g
    • Mounting height 2.4 to 4m
    • Montagewijze Plafond
    • Toepassingsscenario Binnen
