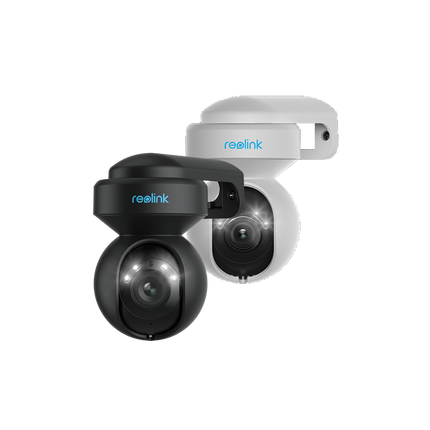

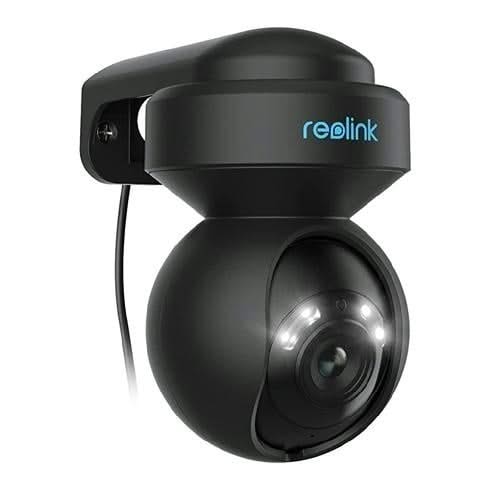

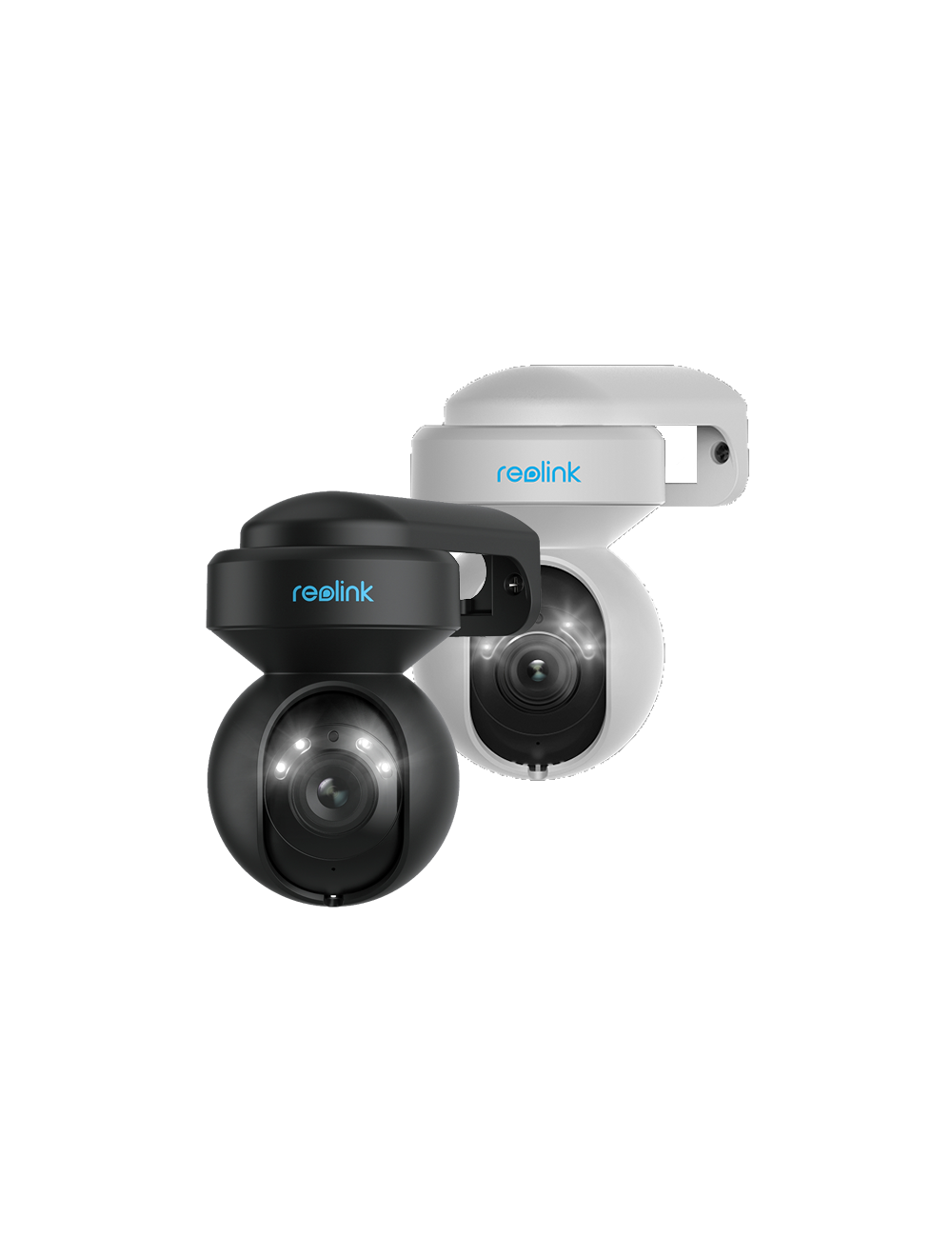

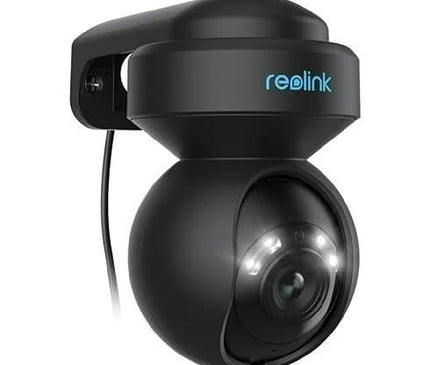

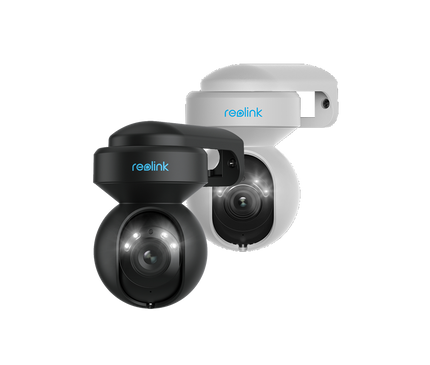

The small E-Series E540 is easy to install and conceal. Thanks to its smart technology, the camera detects people/vehicles/pets, real-time remote communication is possible and colour night vision is possible with floodlights on.
Thanks to the technology on the camera for analysing the shapes of people, vehicles and pets, the E-Series E540 provides accurate detections, significantly reducing false alarms on movements of trivial objects.
This smart IP camera supports both 2.4GHz and 5GHz frequencies to ensure better performance for camera networks. One more choice, many conveniences.
With this PTZ camera, you can watch your world from any angle and automatically track the moving person/car/pet. Keep an eye on intruders and leave them nowhere to hide.
Receive notifications when the E Series E540 detects motion. You can configure when to enable notifications - always or on a specific schedule.
Note: it tracks the person/car/pet left and right, but not up and down
Please note: It follows persons/vehicles from left and right, but not up and down
Specifications:
| Model: Reolink E540 |
| Video & Audio | Sensor | 1/2.7" CMOS Sensor |
| Video Resolution | 2560x1920 (5MP) @20 frames/sec |
| Video format | H.264 |
| Lens | f=2.8~8 mm, F=1.6, with IR cut |
| Zoom | 3x optical zoom |
| Kijkhoek | Horizontal 48~90°, vertical 37~68° |
| Infrared night vision | Up to 12 metres (LED: 12pcs/1.6W/850nm) |
| Colour night vision | 4st/2.7W/3000K |
| Dag/nacht | IR-cut filter with auto-switching |
| Audio | Way audio |
Pan & Tilt
| Pan & Tilt range | Horizontal 355°, vertical 50° |
| Auto Tracking | Ondersteund |
| Interface | Power | DC power port |
| Systeem | Reset knop |
| Ethernet | One 10M/100Mbps RJ45 |
| Storage | Micro SD card slot (max 256GB) |
| Audio | Built-in microphone and speaker |
| WiFi | WiFi standard | IEEE 802.11 a/b/g/n |
| Frequentie | 2.4/5 GHz |
| WiFi security | WPA-PSK/WPA2-PSK |
| Stroom | DC current | 12.0/1A, <12W |
Software kenmerken
| Frame rate | Mainstream: 2fps - 20fps (default: 20fps);
Substream: 4fps - 15fps (default: 10fps) |
| Code rate | Mainstream: 2048Kbps - 5120Kbps (default: 3072Kbps)
Substream: 64Kbps - 512Kbps (default: 256Kbps) |
| Browser | Edge, Chrome, Firefox, Safari |
| OS | PC: Windows, Mac OS; Smartphone: iOS, Android |
| Smart alarm | Motion detection/Person detection/Vehicle detection/Pet detection |
| Recording modes | Movement-activated (default)/Scheduled |
| Protocols | HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, P2P, ONVIF, IPv4, FTP |
| Max user access | Supports up to 12 video streams simultaneously (10 substreams & 2 mainstreams);
20 users (1 admin account & 19 user accounts) |
| Works with | Google Assistant, Reolink NVR |
| Werkomgeving | Operating temperature | -10° to 50° C |
| Operating air humidity | 10~90% |
| Waterproof | IP65 |
| Size & weight | Afmeting | Φ90x120 mm |
| Gewicht | 415g |
