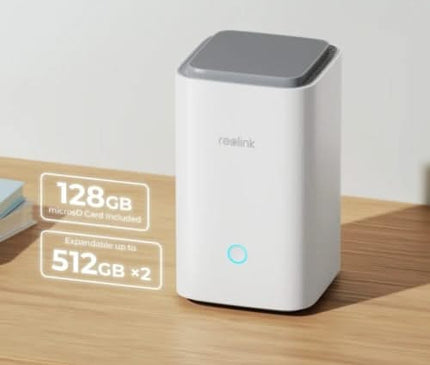

Local storage, no extra costs! More control over your data with the Reolink Home Hub1. With an included 128GB micro SD card and the option to expand up to 2 x 512GB, you have ultimate storage flexibility. Compared to Cloud storage, with this Hub you have all recordings and your privacy fully protected with no risk and no additional cost.

Boost your security system management with the Hub 1. With support for up to 16 MP ultra-high definition and up to 8 Reolink cameras, including dual-band Wi-Fi cameras and Wi-Fi 6 cameras, it offers great flexibility to customise your security hub according to your preferences.

Hub 1 is equipped with exclusive encryption algorithms and provides optimal data protection against unauthorised access, even if your devices or SD cards are stolen.

Enjoy true offline storage with all your recordings stored locally. No worries about data loss even if the network connection is interrupted. Rest assured knowing that your videos are more secure than ever before.

The Hub 1 creates a local LAN network, allowing your security cameras to operate seamlessly without the need for an internet connection.

With just a few taps on the Reolink app, you can easily access live feeds and views of high-definition main streams from multiple devices.

The Hub 1 triggers an alarm when a connected IP camera is triggered, offering comprehensive protection with multi-layer alarms. It features a variety of alarm tones from which to choose, or you can customise your own.

* Hub 1 series products are currently compatible with all Reolink PoE cameras, plug-in Wi-Fi cameras and the most recently released battery Wi-Fi cameras, except 2 MP battery cameras and 4G cameras.

Specifications:

• Apparaatmanagement

  • Camera: up to 8 cameras
  • Device compatibility: All Reolink WiFi/PoE cameras (Battery cameras need a firmware upgrade)
  • Security protection: Access account and sharing options for individual devices are only available via the Home Hub

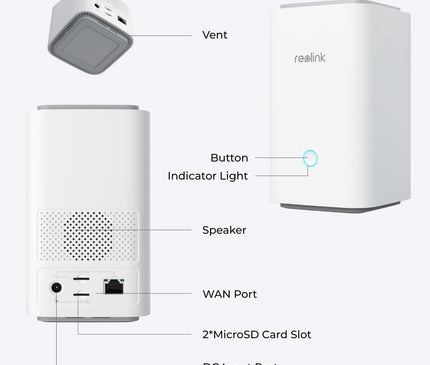

• Input/Output

  • HDMI: No
  • USB: No
  • Reset button: Yes
  • Current: DC 12V/1A
  • Speaker: Yes (max 115 dB)
  • Ethernet: 1x 10M/100Mbit RJ45 port for WAN

• Opslag

  • SATA: No
  • Micro SD card slot: Up to 512GB x2
  • Backup media: No
  • Storage encryption: Protects privacy and prevents theft with AES-128 encryption algorithm

• Preview & Playback

  • Live View: App, PC Client
  • Playback: Smart playback / event history

• WiFi

  • Wireless standard: IEEE 802.11 a/b/g/n/ac/ax (WiFi 6)
  • Frequency: 2.4/5 GHz
  • Wireless security: WPA/WPA2/WPA3

• Sub-1 GHz

  • Frequentie: 868/915MHz

• Systeem

  • Network protocol: TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
  • OS: PC: Windows, MacOS; Smartphone: iOS, Android
  • Max. user access: 11 users (1 admin account & 10 shared accounts)
  • Smart Home: Google Assistant

• Omgeving

  • Operating temperature: -10°C ~ +45°C
  • Operating humidity: 10% ~ 90%

• Mechanisch

  • Afmeting: 95x95x161.8mm
  • Weight: 441gr
