Product form

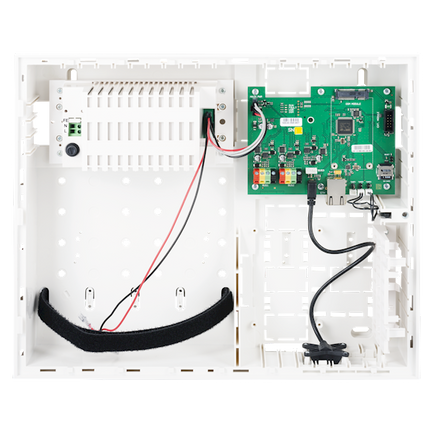

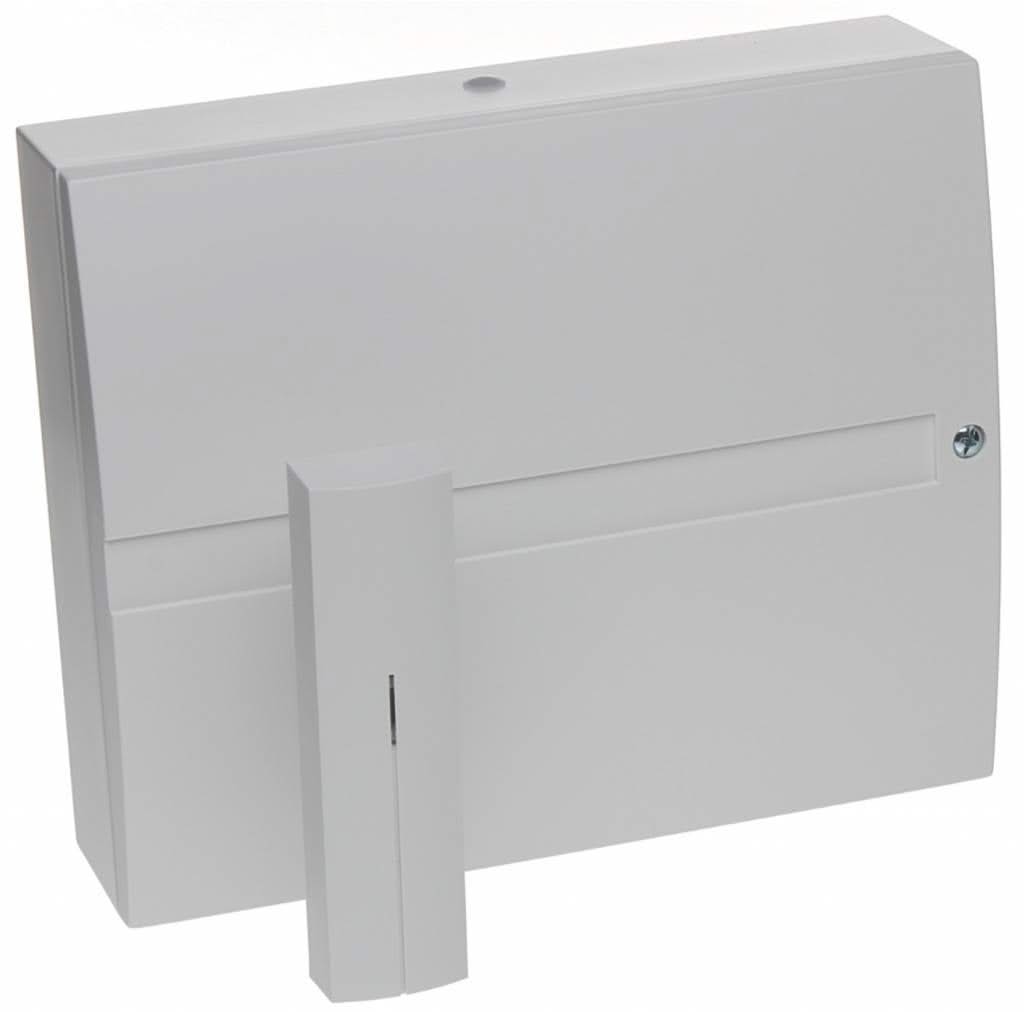

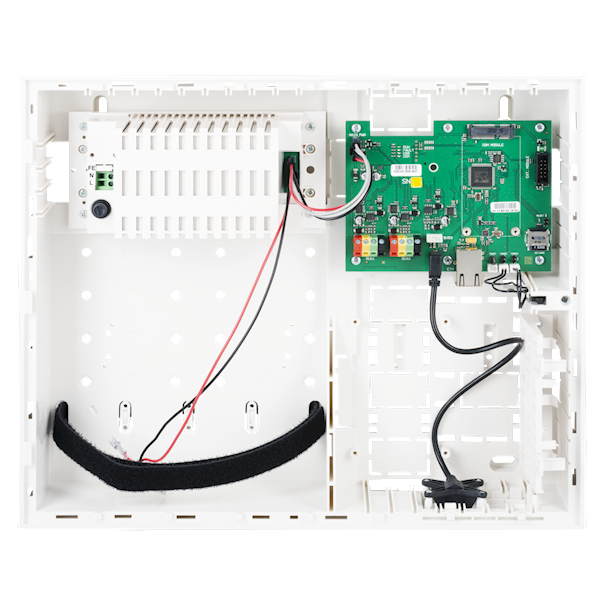

JA-107KR central unit Wireless LAN

Sim card:It is of course important that your PBX is always connected to the internet.This way, you will not face... Read more

Delivery time 1-2 business days

€896,41€740,83 Incl. VATExcl. VAT

    • American Express
    • Apple Pay
    • Google Pay
    • Klarna
    • Maestro
    • Mastercard
    • PayPal
    • Union Pay
    • Visa
    • Showroom in Gorinchem
    • 3500+ customers give us a 4.71 / 5
    • Free returns within 14 days

    Size chart

    Sim card:
    It is of course important that your PBX is always connected to the internet.
    This way, you will not face unwanted situations should your provider have problems or perform maintenance.
    To solve this, you can purchase a SIM card, which will serve as a backup for your Central Station!

    Order SIM card

    It also offers flexible security solutions for residential complexes, administrative buildings and companies that require a multi-section system. System adjustments and sizing are programmed via the F-Link software (from version 2.0.0).

    The JA-107K control panel provides:
    120 wireless and up to 230 bus devices
    600 users
    15 sections
    128 programmable PG outputs
    64 mutually independent calendar appointments
    50 user SMS reports
    15 user voice reports
    5 ARCs can be set
    5 selectable protocols for an ARC
    The control panel has:

    2 mutually independent terminal boards for bus connection
    1 connector for a built-in radio module (JA-111R)/third terminal board - extended with a JA-110Z-D
    1 connector for a GSM/GPRS communicator (JA-192Y)
    The control panel also provides functions such as:

    Maintenance
    Day/night mode
    Short departure response
    Automatic setting
    Advanced calendar functions

    The following products with the control panel ARE NOT COMPATIBLE:
    JA-180A (wireless outdoor siren)
    JA-154J (two-way remote control)
    JA-190X (PSTN dialer module)
    The following products with the control panel ARE COMPATIBLE under certain conditions:

    The JA-112E (keyboard) is compatible with FW LU61501 and above
    The JA-113E (keyboard) is compatible with FW LU61601 and above
    The JA-118N (PG Bus Output Module) is compatible with LY68003 and above
    FWversion LY68002 and below only works when the PG range is set in the F-Link to a maximum value of 32
    The JA-110I (section or PG bus indicator) is compatible only when the PG range is set in the F-Link to a maximum value of 32
