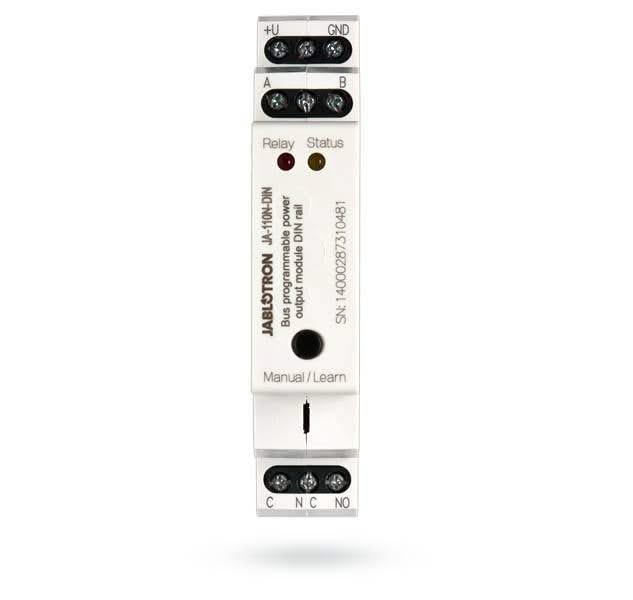

    Jablotron JA-110N-DIN BUS DIN current output power module


    The Jablotron JA-110N-DIN BUS DIN current output power module is designed for a DIN rail. The module provides power to the relay output. It can be used, for example, to control lighting, fans, etc. The relay output is programmable via the control panel.


    - Power supply 12 V bus (9 ... 15 V)
    - Current consumption during backup (relay open / closed) 5 mA / 45 mA
    - Current consumption for cable selection 45 mA
    - Rating relay (galvanically separated) - Class II:
    - Maximum switching voltage 250 V AC / 24 V DC
    - Ohmic load (PF = 1) max.16
    - Inductive, capacitive load (PF = 0.4) max 8A
    - Halogen lighting max 1000 W DC 384 W
    - Minimum DC switching 0.5W
    - Twisted wires 2 x 1.5 mm2 max 1 x 2.5 mm2
    - Dimensions 18 x 90 x 64 mm
    - Environment general indoor
    - Temperature, -10 To + 40°C
    - Enclosure IP-20
    - Complies with EN 50130-4, EN 55022, EN 60950-1 DIN rail EN60715
