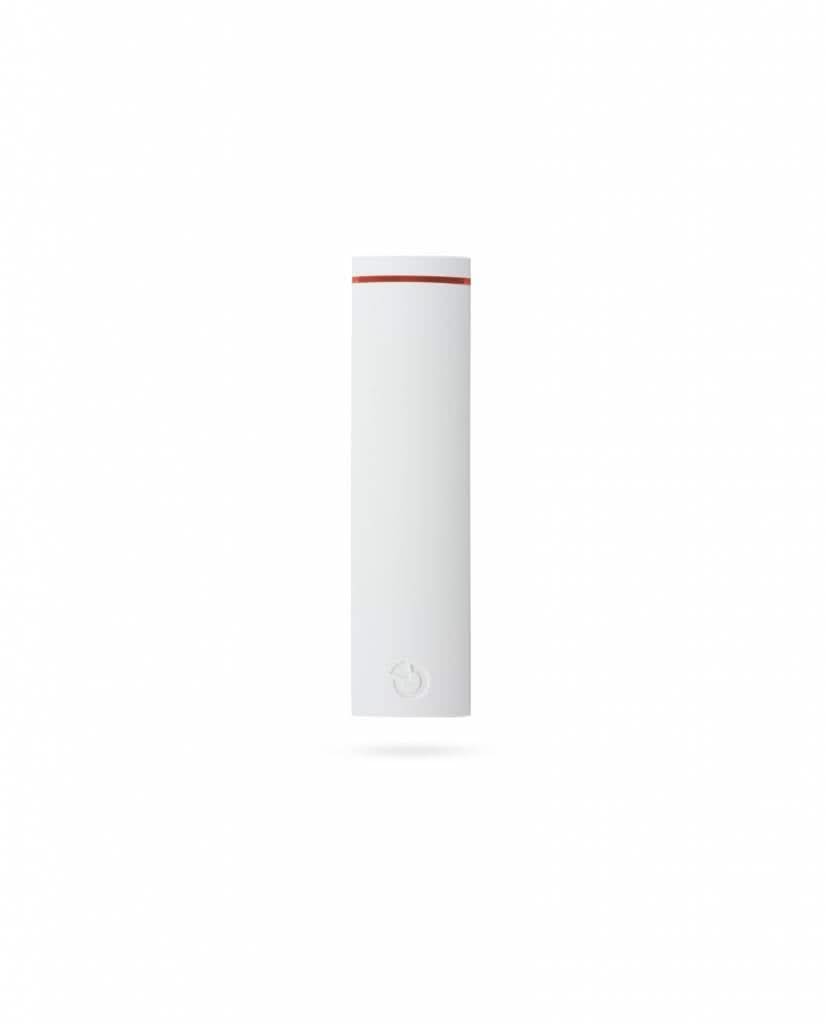

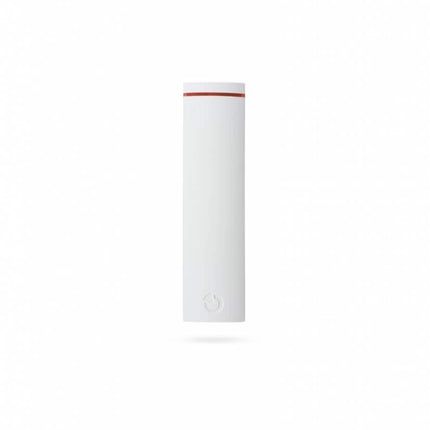

Jablotron JA-111R Radio module

The radio bus module JA-111R is used to connect all wireless devices of the JABLOTRON 100 system. To perfectly cover the monitored area, up to 3 JA-111R modules can be installed in a system.

The electronic unit is installed in the front part of the cover and is equipped with a retractable terminal board, which allows easy connection of the cables. There are breakthrough holes for cables in the rear part.
The module communicates with and is driven by the central unit's bus. The module is designed for mounting outside the central unit and is used as the second or third panel in the system. If you need a radio module in the central unit, we recommend buying a central unit with a radio module - the unit JA-10xKR-xx

Compatible with: F-Link 1.4.0 or higher
Power supply: via central unit bus: 12 V (9...15 V)
Consumption of backup (standby) mode: 25 mA
Actual consumption (maximum) for cable selection: 25 mA
Communication frequency: 868.1 MHz
Dimensions: 43 x 160 x 23 mm
Classification: security grade 2, In accordance with EN 50131-1, EN 50131-3
Environment: II. indoor, general, in accordance with EN 50131-1
Operating temperature range: -10 °C to +40 °C
This also meets the requirements of: ETSI EN 300 220, EN 50130-4, EN 55022, EN 60950-1
Operating conditions: ERC REC 70-03
