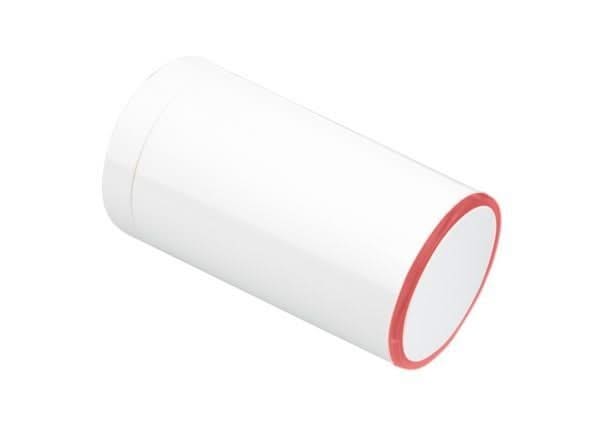

JB-150N-HEAD Wireless thermostat knob

The JB-150N-HEAD is a fully wireless thermostat knob that can be linked to all Jablotron 100 panels!
It is used to control a radiator valve or underfloor heating.

This thermostat button is combined with a PG relay module to activate or deactivate the central heating boiler.
Jablotron has wired and fully wireless thermostats that can be chosen to complete the system.

In the system, you can create a zone with multiple thermostat buttons. This allows you to divide the property into multiple zones of heating!

Up to 16 actuators can be installed in a building independently of the settings of individual thermostats.
For installation, the correct adapter type must be chosen in accordance with the radiator valve. As supplied by the manufacturer, the actuator includes the basic VA 50 adapter, which was designed for ordinary valves with the screw connection dimensions of M30 × 1.5.
If required, we offer 4 other adapter types: JB-VA16,
JB-VA26, JB-VA78 and JB-VA80.

The valve actuator is then simply assigned to a thermostat registered in the control unit. Then together they provide the following functions:
- Automatic switching to the economy temperature when setting the building
- Weekly schedule mode
- Possibility of entering the manual temperature setting
- Possibility of switching it off if only a minimum temperature needs to be maintained in the building
- Heating suppression in case of an open window
- Report in case of overheating or freezing
