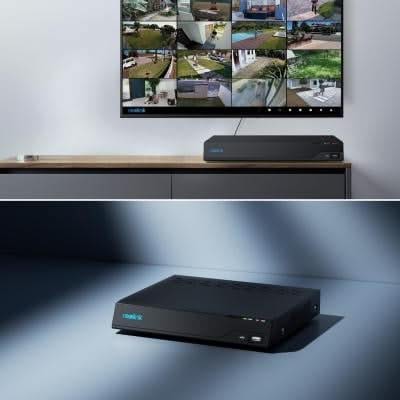

Enhance your security with the Reolink 16-channel PoE NVR, without hard disk (see options at the bottom of this product) for 24/7 recording that never misses a thing. Experience the clarity of up to 16 MP resolution to capture every detail. PoE technology offers plug-and-play installation. Remote access lets you manage your system from any location, while local access ensures you can view live feeds offline at home.

• 16 channels, up to 16MP. Supports up to 16 IPC access channels, each channel up to 16MP input
• 24/7 recording. Continuous recording directly to your hard disk (not included) with expandable storage


• Easy installation. PoE technology can transmit both data and power through just one Ethernet cable, streamlining installation
• Find the clip you need quickly. Effortlessly navigate through your video footage with time and event filters to quickly find the exact clip you need, saving time and effort




• This PoE NVR works with all Reolink IP cameras: 16MP, 12MP, 8MP, 5MP and 4MP, PoE or WiFi
• Tot 12TB opslagcapaciteit




• Your security, your way. Easily build your own security centre with the NVR expandable to up to 16 Reolink cameras
• Stay connected via your phone/pc. Know what is happening on your premises anytime, anywhere via your Reolink app and client, whether you are at home or on the road. No monthly fee

  Specifications:

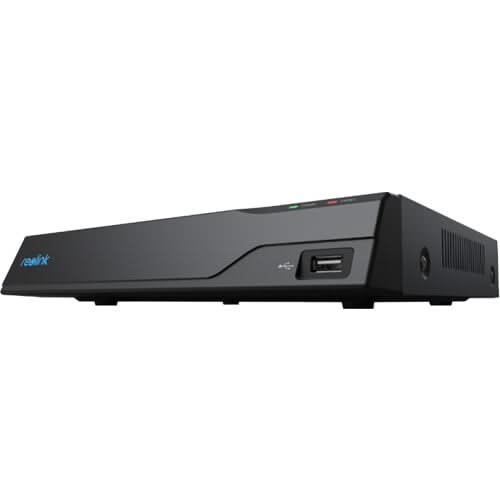

  Model: Reolink NVS16-4TB
  External interfaces	Video out	1 HDMI, 1 VGA
  	Audio port	1 audio out channel, RCA
  	USB port	2 x USB 2.0
  	Ethernet port	1 x RJ-45 10/100/1000 Mbps self-adaptive Ethernet Interface for LAN/WAN; 16 x RJ-45, 10/100 Mbps self-adaptive PoE Ethernet Interface for IP cameras
  Video	Video input	PoE IP camera x 16
  	Video output	HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768; VGA: 1920x1080, 1280x1024, 1280x720, 1024x768
  Audio	Audio input	Cameras with built-in microphone
  Opnemen	Live View/Playback Resolution	12MP, 8MP, 5MP, 4MP, 3MP, 1080P, 720P
  	Video compression	H.265, H.264
  	Synchronous Playback	1-4 channels (only supports 1-channel playback when viewed in 8MP or higher resolution)
  	Recording modes	Person, vehicle, pet detection, motion-activated detection, 24/7
  Opslag	Internal HDD	2x SATA interface for 2 HDDs (without hard disk)
  	Max capacity	12TB (max 6TB per HDD)
  	External HD	No
  PoE	Max current per port	25W
  	Standaard	IEEE 802.3af/at
  Netwerk	Network Protocol	HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP
  	Ondersteunde browsers	Edge, Firefox, Chrome, Safari
  	Ondersteunde OS	PC: Windows, Mac OS; SmartPhone: iOS, Android
  	Max. users access	20 users (1 admin account & 19 user accounts); up to 12 video streams simultaneously (10 substreams & 2 mainstreams)
  Algemeen	Werkomgeving	Temperature: -10℃~+45℃, Humidity: 10%~90%
  	Power supply	DC 48V~54V
  	Current consumption	<10W (without HDD&PoE)
  	Dimensions (mm)	330 x 45 x 285
  	Gewicht	1.8 kg
