A true plug-and-play security system! It features PoE (Power over Ethernet), with a single network cable connecting each IP camera to the NVR for both power and video signal transmission. Easy wiring - the wiring process could not be easier for DIYers and beginners.

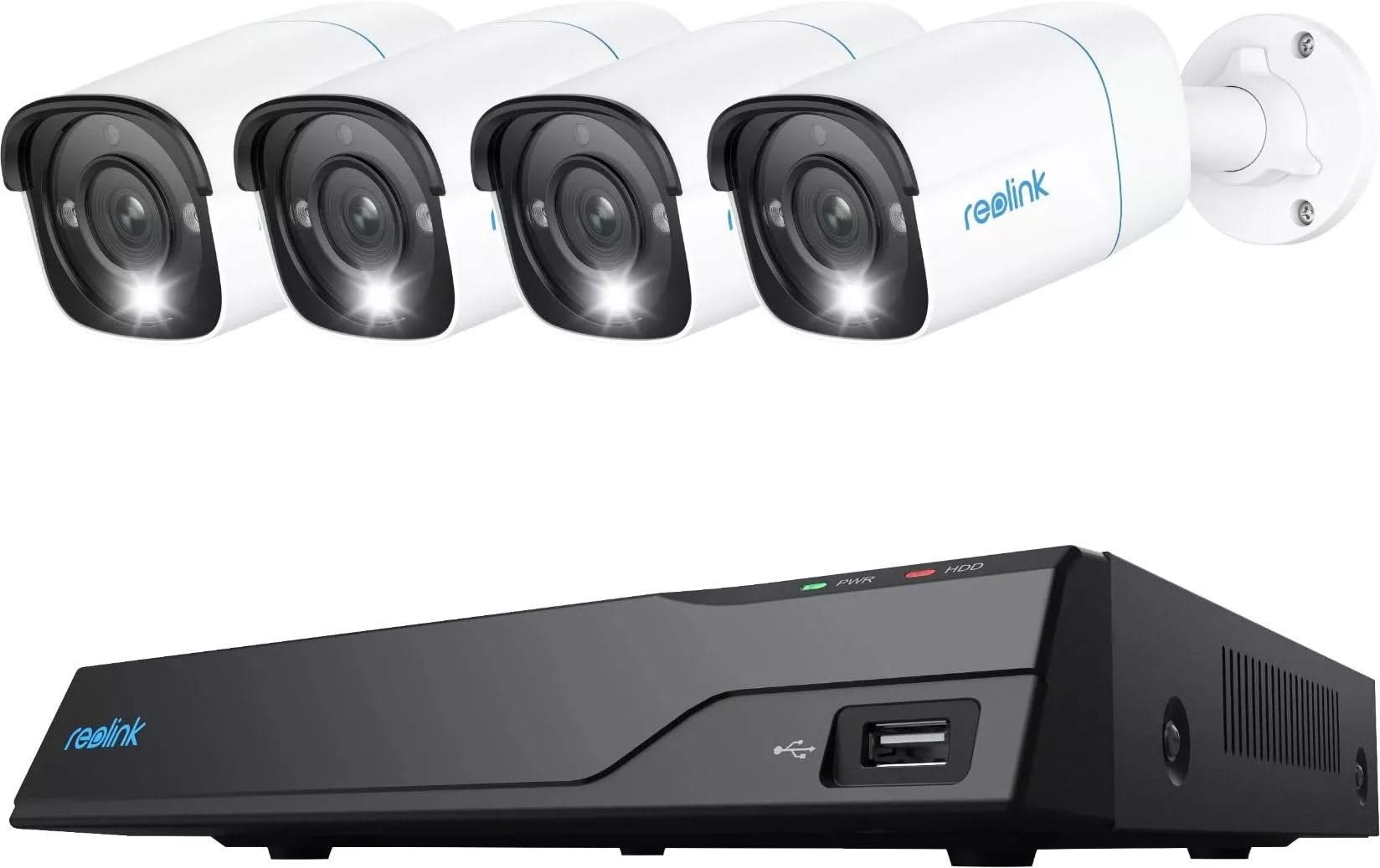

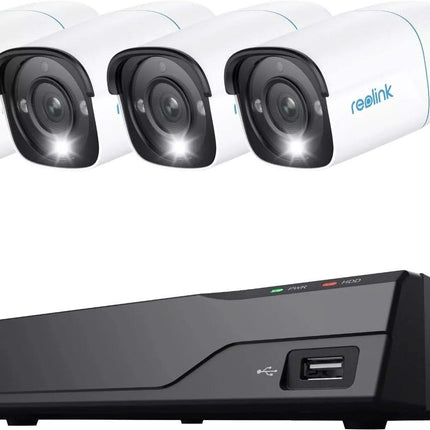

NVS8-5MB4 wired PoE camera security system detects moving objects and triggers alerts when danger is imminent. It informs you in real time when an intrusion occurs
This security camera system can be expanded into a set of 8 cameras with Reolink IP cameras - bullet, dome or PTZ; 12 MP, 8 MP, 5 MP or 4 MP - to cover every corner of your home, shop or factory.
Thanks to this Reolink NVS8-5MB4's playback function, you can monitor the entire event.
● Play back important evidence or funny video recordings.
● Simultaneous playback of 4 channels.
● Quickly search for an event that occurred at a specific time.
● Play each event by day, hour and even minute using the timer axis below the split screen.
● Pre-installed 2TB HDD for 24/7 recording and monitoring.
● Support for all cameras recording simultaneously (up to 8 cameras).
● If you want longer recordings, try recording with motion detection. In that case, recording is activated only when motion is detected.
● You can install an external hard drive via e-SATA for more storage space (up to 4 TB).
Specificaties:
| NVS8-5MB4 |
| Model NVR: Reolink NVS8-2TB |
| Video / Audio input | IP video input | PoE IP Camera x 8 |
| Audio input | Cameras with built-in microphone |
| Video output | HDMI | 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768 |
| VGA | 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Recording | Live View/Playback | 12MP/8MP/5MP/4MP/3MP/1080P/720P |
| Video format | H.265/H.264 |
| Recording modes | Person detection, vehicle detection, pet detection, motion-activated detection, 24/7 |
| Synchronous playback | 1-4 channels (supports 1-channel playback if viewing in resolution of 8MP or higher) |
| Opslag | Internal HDD | 1SATA interface (2TB HDD pre-installed) |
| Maximum capacity | 12TB (Max 6TB per HDD) |
| External HD | 1 x eSATA interface for HDD |
| Externe Interface | USB port | 2 x USB 2.0 |
| Audio port | 1 audio out channel, RCA |
| Video out | 1 HDMI, 1 VGA |
| Ethernet port | 1x RJ45, 10/100/1000Mbps self-adaptive for LAN/WAN
8x RJ45, 10/100Mbps self-adaptive PoE Ethernet interface for IP cameras |
| PoE | Max power consumption | 25W |
| Standard supported | IEEE 802.3 af/at |
| Netwerk | Network Protocol | HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP |
| Browser supported | Edge, Firefox, Chrome, Safari |
| OS supported | PC: Windows, Mac OS; SmartPhone: iOS, Android |
| Max. users | 20 users (1 admin and 19 user accounts); supports up to 12 video streams simultaneously (10 sub-streams and 2 mainstreams) |
| Algemeen | Werkomgeving | Temperature: -10℃~+45℃, Humidity: 10%~90% |
| Current | DC 48V ~ 53V |
| Current consumption | <10W (without HDD&PoE) |
| Afmeting(mm) | 260(W) x 41(H) x 230(D) |
| Weight (without HDD) | 1.4 kg |
| Garantie | Limited warranty | 2 jaar |

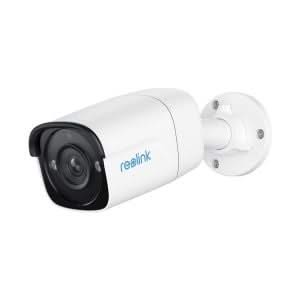

| Model camera: Reolink P320 |
| Video & Audio | Sensor | 1/2.7" CMOS Sensor |
| Video Resolution | 2880 x 1616 (5 Megapixel)@30fps |
| Lens | f=2.8mm fixed; F=1.6, with IR-cut |
| Kijkhoek | Horizontal: 110°, Vertical: 57° |
| Day/night mode | Auto-switching IR-cut filter |
| Video format | H.264 |
| IR night vision | 30 Meter (LED: 2pcs/1.8W/850nm) |
| Audio | Built-in microphone & speaker |
Stroom
| PoE | IEEE 802.3af, 48V Active |
| DC stgroom | DC 12.0V-1A, <12W |
| Interface | Ethernet | One 10M/100Mbps RJ45 |
| Power | DC power port |
| Systeem | Resetknop |
| Storage | Micro SD card (max 256GB) |
Software features
| Frame rate | Main Stream: 2fps - 30fps(default: 30fps)
Sub Stream: 4fps - 20fps(default: 10fps) |
| Code rate | Main Stream: 2048Kbps - 6144Kbps (default: 5120Kbps)
Sub Stream: 64Kbps - 512Kbps(default: 256Kbps) |
| Network protocol | HTTPS, SSL, TCP/IP, UDP, UPNP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P |
| Browser ondersteuning | IE, Edge, Chrome, Firefox, Safari |
| OS support | PC: Windows, Mac OS; Smart Phone: iOS, Android |
| Slim alarm | Person detection, vehicle detection, motion detection, pet detection |
| Recording mode | Movement-activated (default), On schedule |
| Works with | Google Assistant, Reolink NVR |
| Gebruikers | 20 users (1 admin account & 19 user accounts); Supports up to 12 video streams simultaneously (10 substreams & 2 mainstreams) |
| Algemeen | Werkomgeving | Operating temperature -10° ~ 55° C;
Operating air humidity 10%~90% |
| Waterproof | IP66 |
| Afmeting | 68x63x188mm |
| Gewicht | 452 gr |
