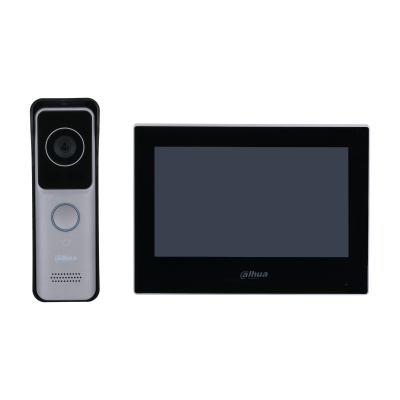

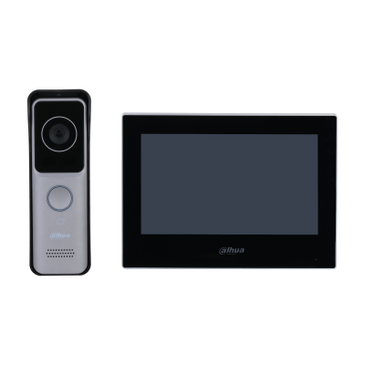

The Dahua KTW02 is a complete IP video doorbell kit with an outdoor station and an indoor station with a black housing. The kit comes without power supplies. This kit can be connected and connected wirelessly via WiFi. Both the doorbell and the monitor can also be connected to the network wired via a network cable and powered with PoE via the network cable if required. A PoE power supply is not included. For suitable power supplies, see below.

The outdoor station has a 2 megapixel Full HD camera with 110-degree horizontal viewing angle and features infrared illumination for good visibility in the dark. The VTO2311R-WP features 120dB Wide Dynamic Range so there is usable image in backlight, for example.

The Dahua VTO2311R-WP is made of plastic and has an IP65 rating for outdoor use. The VTO has IP65 rating, but experience does recommend placing the outdoor unit in a position where it will not come into direct contact with water.

With the VTH2621G-WP indoor monitor, it is possible to have an audio and video conversation with a person standing at an outdoor station or between monitors. It is possible to unlock two doors from the monitor. Images from Dahua or ONVIF-capable IP cameras can also be viewed on the monitor.

Specificaties:

• Wi-Fi Villa-deurstation
• Ultrathin design
• PC and ABS material make it ideal for indoor and outdoor use
• 1/2,8" 2-MP HD CMOS camera
• Provides two-way video call with indoor monitors
• Video and voice messages from visitors can be monitored on the indoor monitor
• Video calling and unlocking via app
• IR lighting and automatic WDR
• Wi-Fi-verbinding
• IP65-classificatie
• H.264 and H.265
• Unlock with IC card
• PoE-voeding

IP-binnenmonitor

• 7" TFT capacitive touchscreen, 1024 × 600
• 6-channel alarm input and 1-channel alarm output
• Wi-Fi-verbinding
• Standard PoE
• Outdoor station and IPC monitor
• H.265 and H.264 video decoding
• High performance and cost-effective
