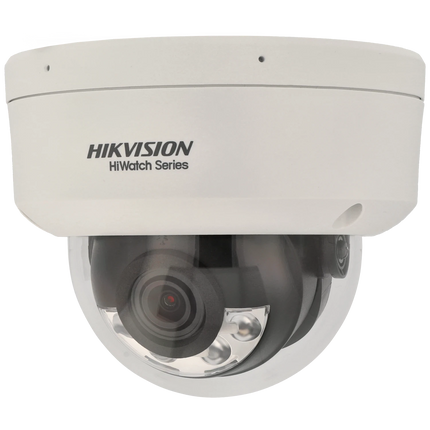

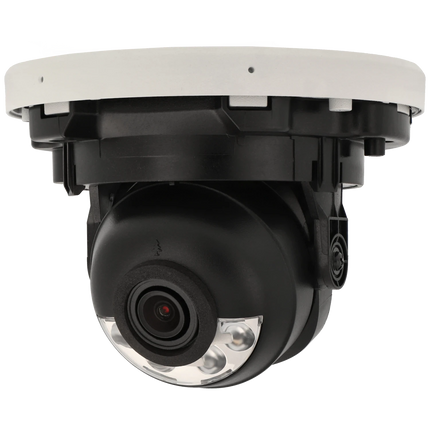

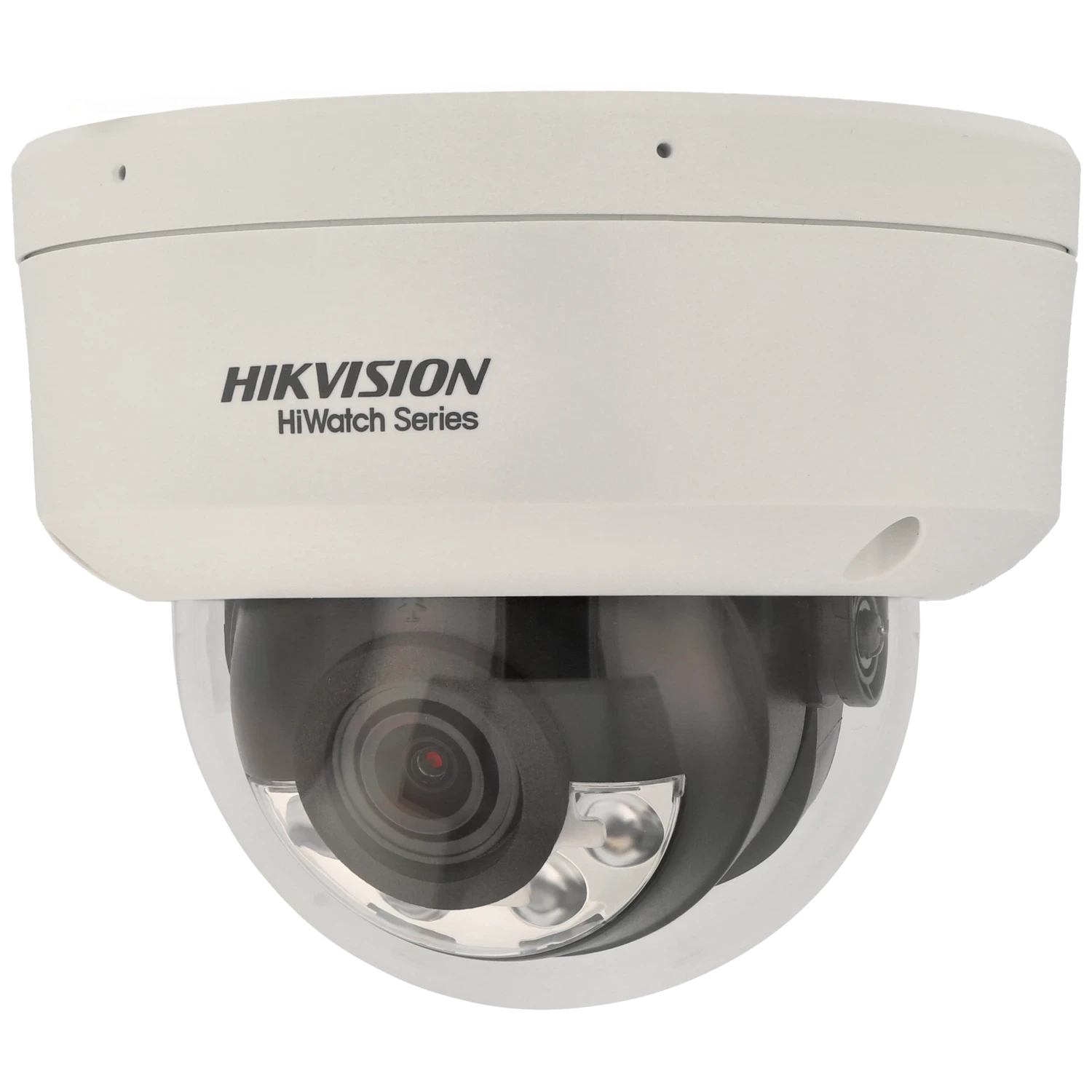

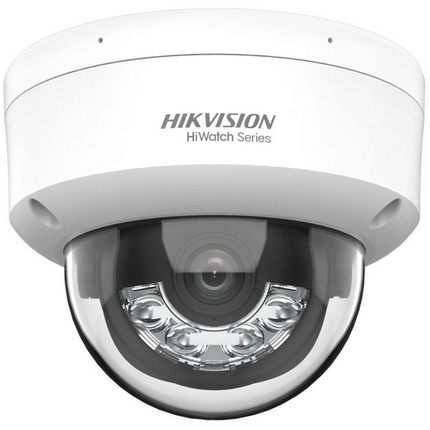

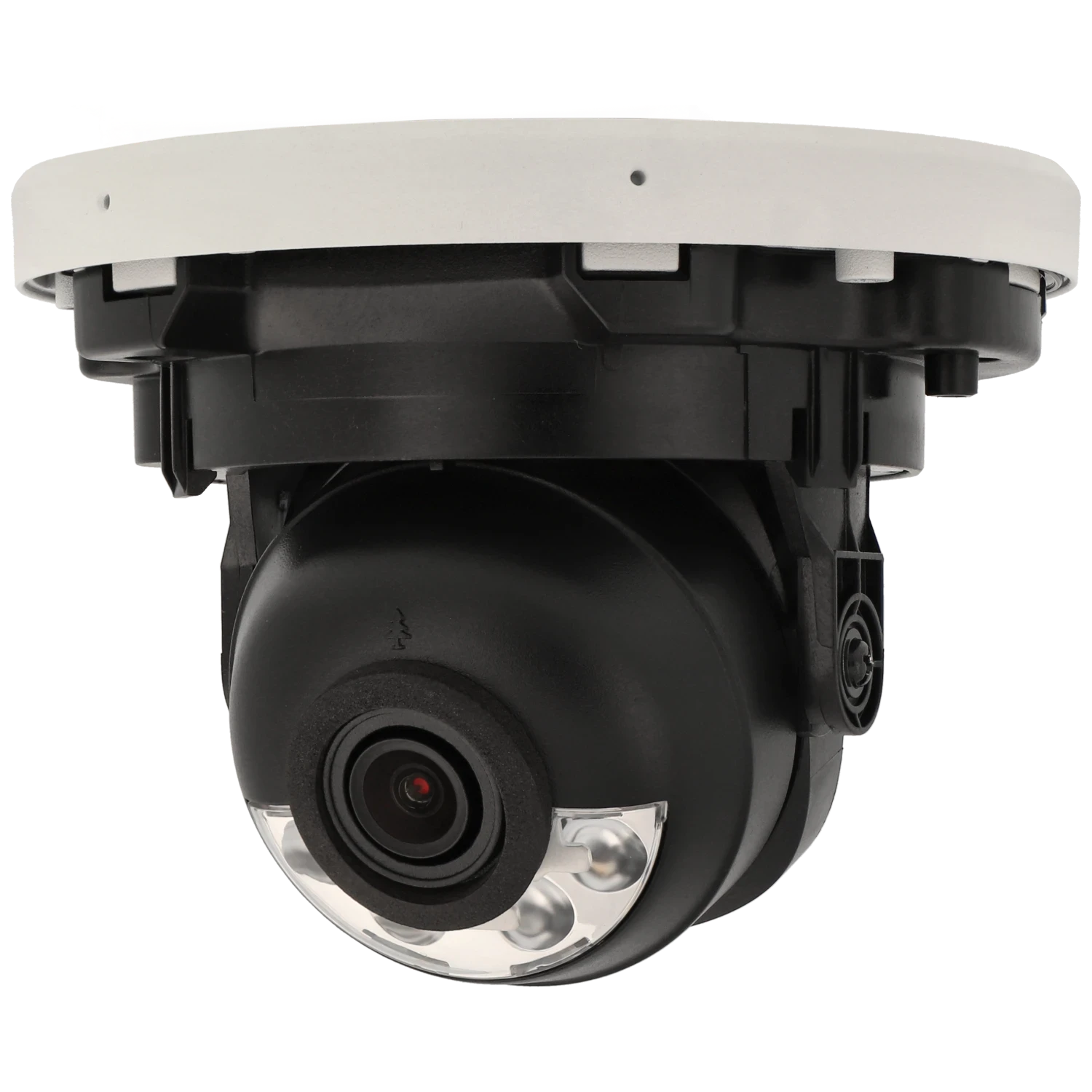

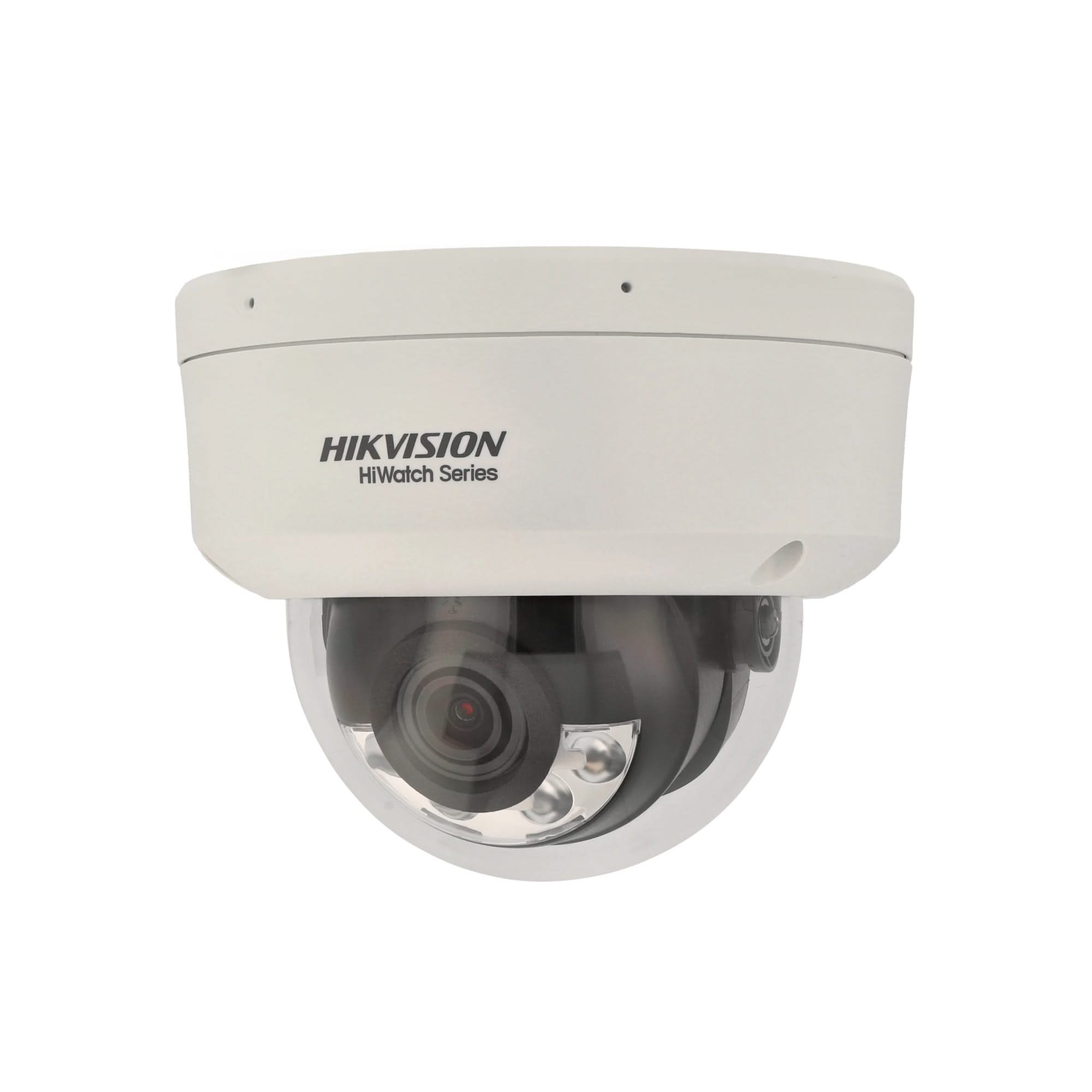

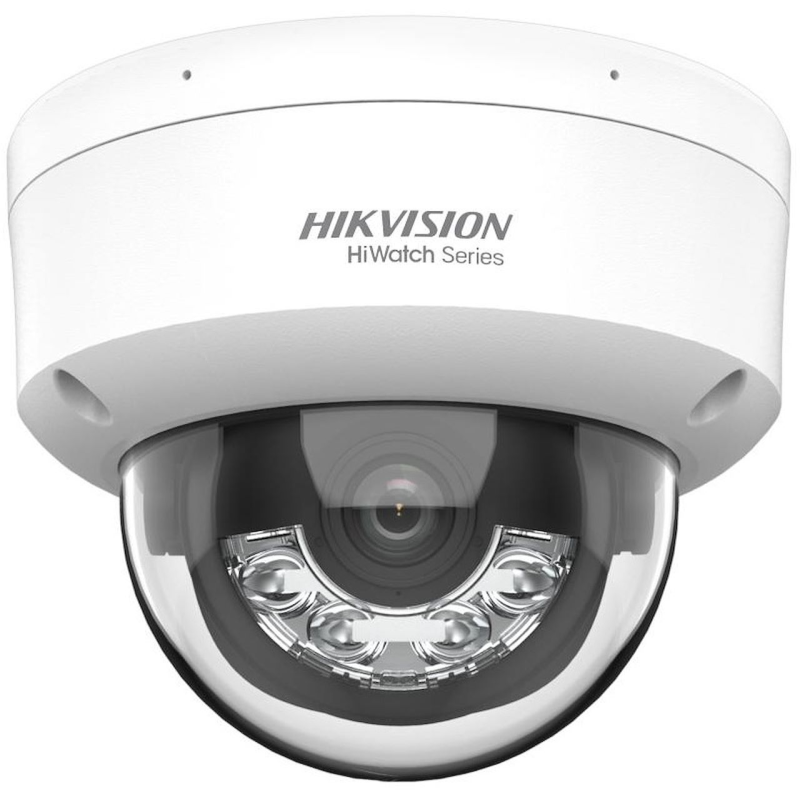

HWI-D140HA-LUC, 4Mp 2.8mm, Smart Hybrid Light, PoE

The Hikvision HIWatch HWI-D140HA-LUC is an advanced 4 MP fixed dome network camera designed for reliable indoor surveillance. Below are the key specifications.

This camera offers high-quality image quality and advanced features, making it ideal for a variety of indoor security applications.

Camera:

• Image sensor: 1/3" Progressive Scan CMOS
• Maximum resolution: 2560 × 1440
• Minimum illumination:
  • Color: 0.01 Lux @ (F2.2, AGC ON)
  • Black and white: 0 Lux with IR
• Day & Night: IR Cut Filter
• Hybrid IR and white light illumination: Up to 20 meters
• Lens:
  • Fixed focal length of 2.8 mm
  • Horizontal field of view: 104°
  • Vertical field of view: 57°
  • Diagonal field of view: 123°

Video:

• Video Compression: H.265+, H.264+, H.265, H.264, MJPEG
• Main stream:
  • 4 MP (2560×1440) at 20 fps
  • 1080P and 720P at 25/24 fps
• Substream:
  • 720P, VGA, Q720P at 25/24 fps

Image Enhancement:

• Digital Wide Dynamic Range (WDR)
• 3D Digital Noise Reduction (DNR)
• Backlight Compensation (BLC)
• High Light Compensation (HLC)

Functions:

• Smart motion detection with person recognition
• Built-in microphone for sound recording
• Privacy masking: 1 programmable area

Network:

• Ethernet interface: 1 RJ45 10/100M self-adaptive port
• Supported protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, SNMP, DDNS
• Support for ONVIF (S/T), ISAPI, SDK
• Maximum number of users: Up to 32 users
• Simultaneous live view: Up to 6 channels
• Compatibility: Web browser, iVMS-4200, Hik-Connect

General:

• Power Supply:
  • 12V DC (±25%)
  • Power over Ethernet (PoE) according to IEEE 802.3af
• Power consumption:
  • Maximum 5.4W at 12V
  • Maximum 7W at PoE
• Operating temperature: -10°C to +40°C
