Note! Hard disk is not included.

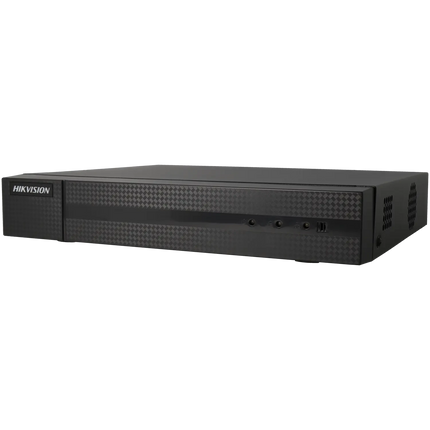

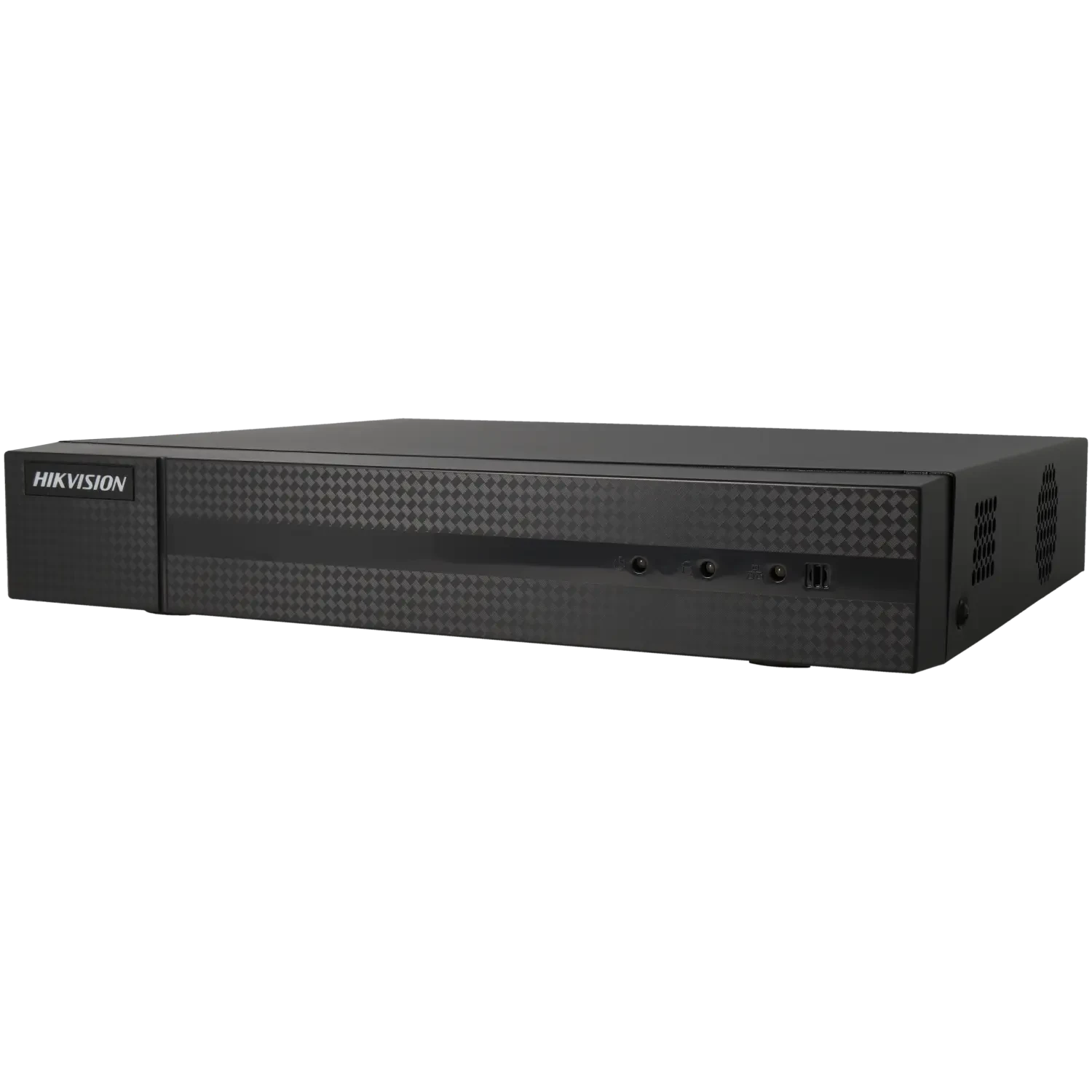

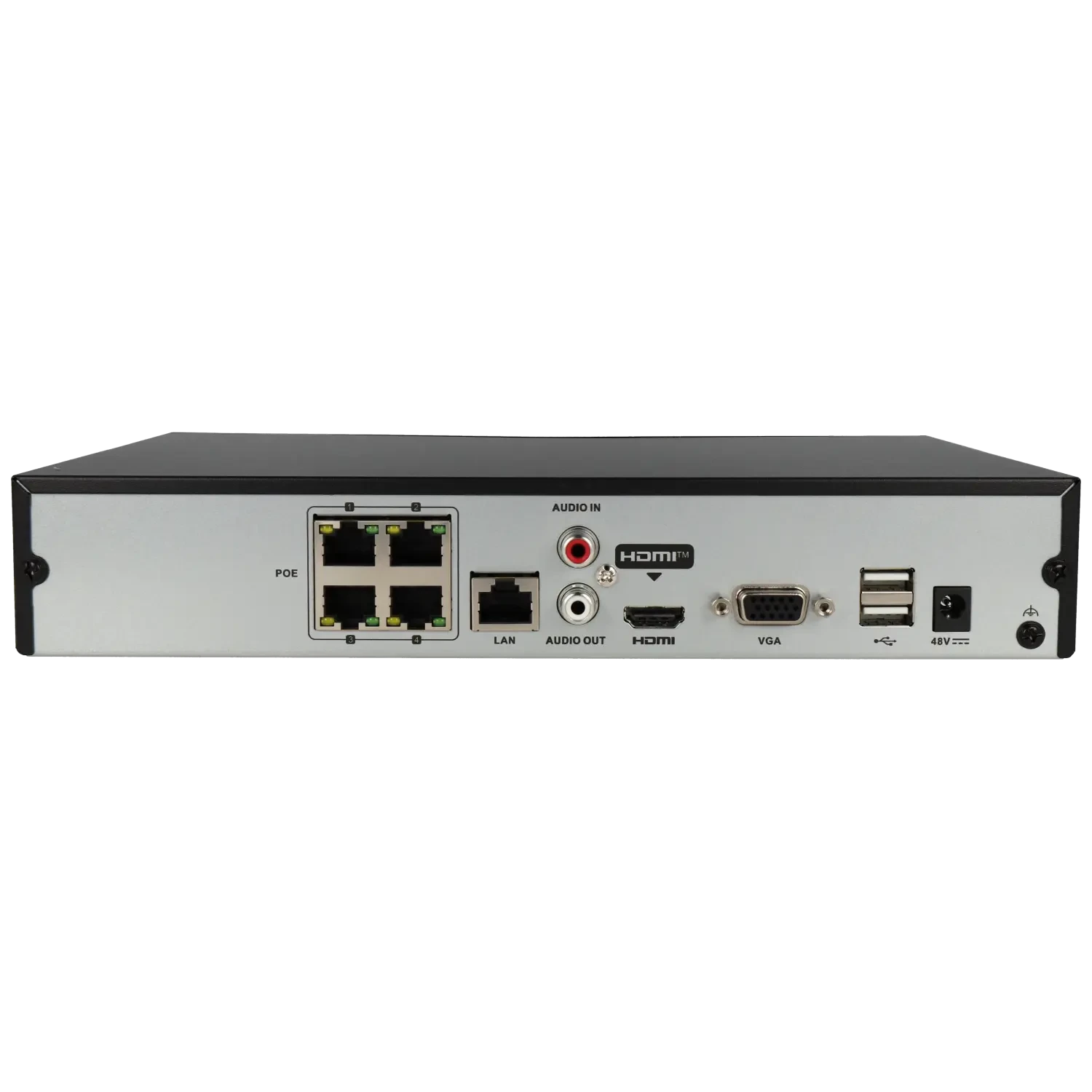

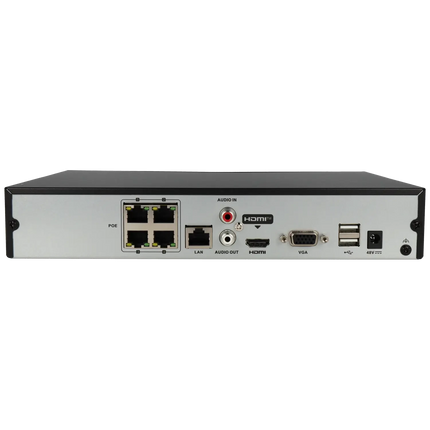

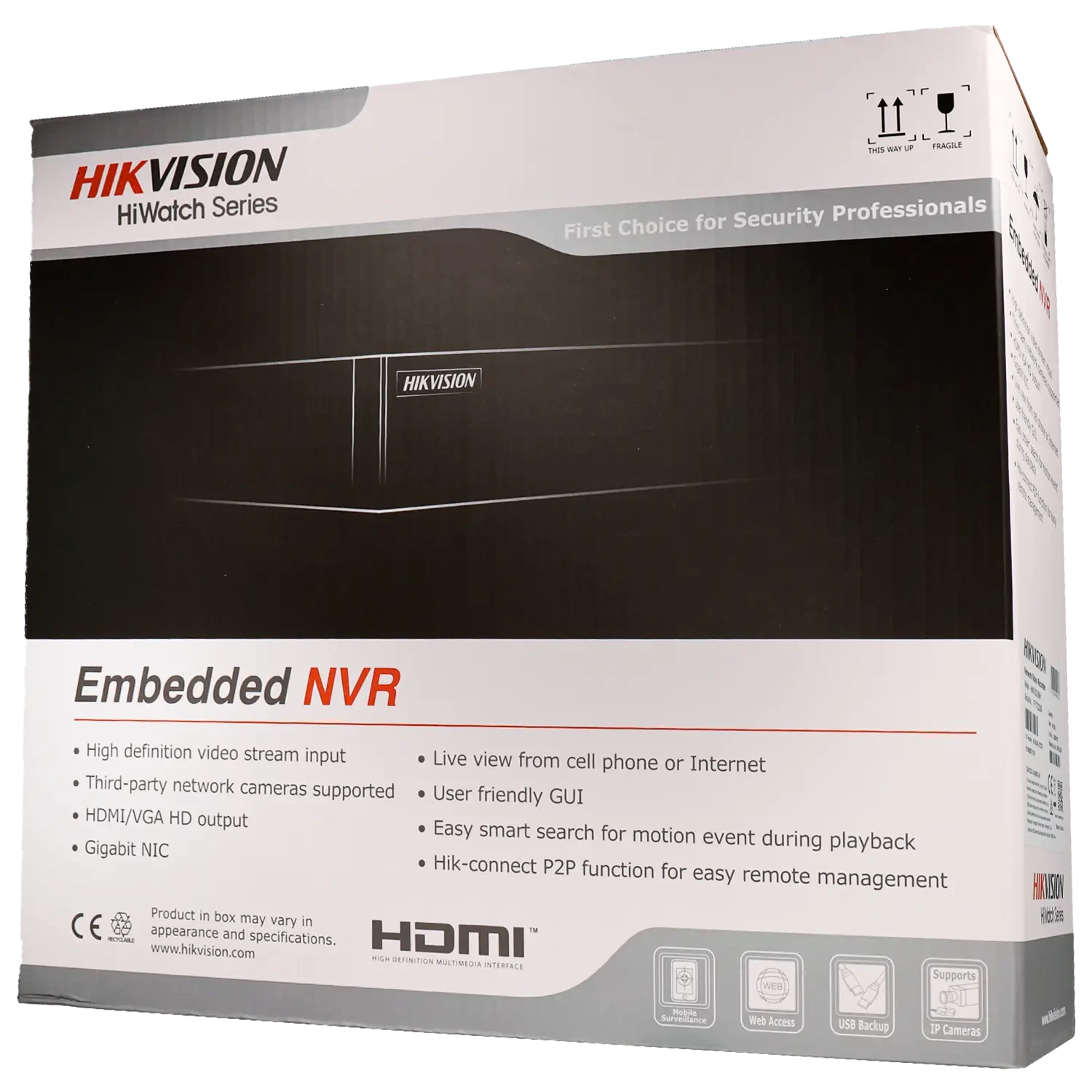

Hikvision network recorder (NVR) that has 4 channels to connect IP cameras with up to 4K (8 megapixel) image quality. The NVR recorder has a built-in PoE switch making it possible to power the cameras directly over the network cable. The recorder has 1 HDMI input for displaying images of up to 4K on a monitor and 1 VGA input for streaming images up to Full HD. The Hikvision NVR recorder supports a maximum resolution of 8 megapixels.

Specifications:

• Video and Audio

  • IP Video Input
    4-channels
  • HDMI Output
    HDMI: 1-channel, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output
    VGA: 1-channel, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz; HDMI/VGA simultaneous output
  • VGA Uitgang
    19201080/60Hz, 12801024/60Hz, 1280*720/60Hz
  • Incoming Bandwidth
    40 Mbps
  • Outgoing Bandwidth
    80 Mbps
  • Audio Output
    1-channel, RCA (Linear, 1 KΩ)
  • Two-Way Audio
    1-channel, RCA (2.0 Vp-p, 1 k Ω)

• Decoderen

  • Decoding Format
    H.265+, H.265, H.264+, H.264
  • Decoderingscapaciteit
    4-kanalen @ 1080p
  • Synchrone Weergave
    4-kanalen
  • Recording Resolution
    8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

• Netwerk

  • Network Protocol
    TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
  • Network interface
    1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
  • PoE Interface
    4-kanalen

• Stroom

  • Current
    48 VDC, 1.35 A
  • Standard
    IEEE 802.3 af/at

• RAID

  • RAID Type
    Geen

• Hulpprogramma Interface

  • SATA
    1 SATA interface
  • Capacity
    Up to 8TB capacity per drive

• USB Interface
  2 × USB 2.0

• Algemeen

  • Power consumption
    ≤ 65 W
  • Power consumption
    ≤ 10 W
  • Operating temperature
    -10 to +55º C (+14 to +131º F)
  • Working humidity
    10 to 90 %
  • Behuizing
    1U
  • Dimensions (W × D × H)
    265 × 225 × 48 mm (10.2" × 8.9" × 1.9")
  • Weight
    ≤ 1 kg (2.2 lb)
