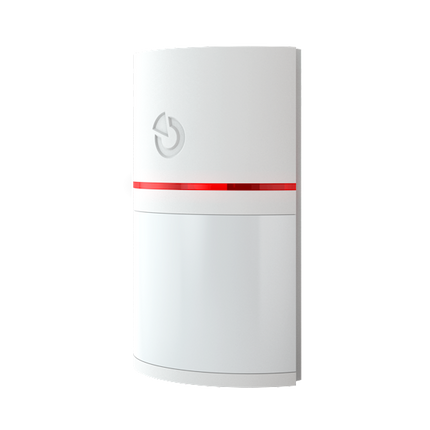

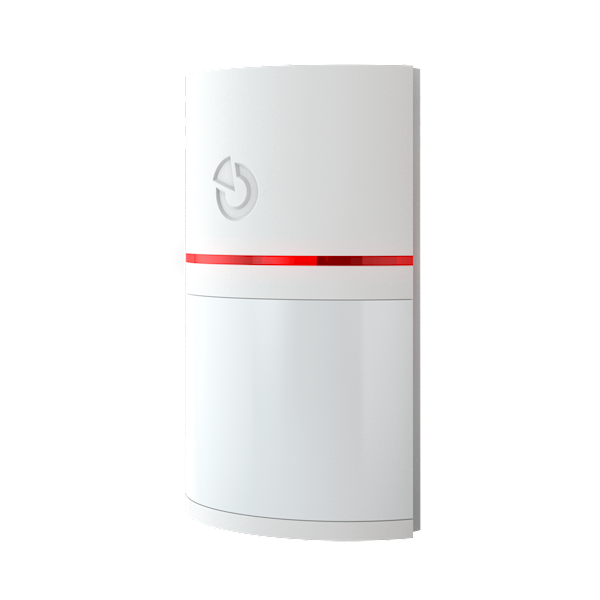

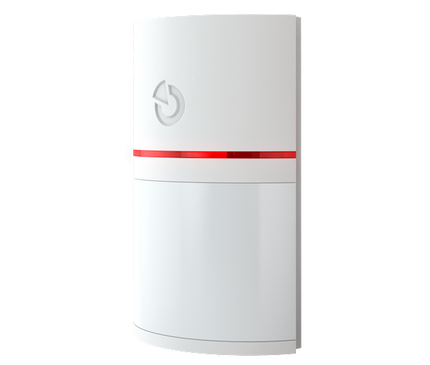

    Jablotron JA-152P, Pro Designline Wireless PIR

    The product is a wireless system device for the Jablotron Midway Pro and Essex Pro. This detector is designed to detect human body movements in buildings. Its guaranteed detection coverage is 90°/12 m . The detector meets the highest quality and design requirements, making it suitable even for luxurious interiors.

    In addition to standard positioning in a corner of a room, it can be installed on a wall surface using a mounting box JA-196PL-S, where the detector is partially recessed and forms an elegant whole with the wall. For special applications such as ceiling mounting or angled detection angle, the JA-191PL hinge holder can be used.

    The detector is equipped with impulse activation.

    The detector can be used to control programmable PG outputs.

    The resistance to false alarms can be set to two levels.

    The detector provides standard resistance to white light at the level prescribed by the standard (up to 6000 lux).

    The detector is addressable and occupies one position in the security system.

    Compatible with F-Link 2.0.0 and higher
    Voedingsbron 1x lithium battery, CR123A (3 V / 1500 mAh)
    Typical service life 4 years (in Smartwatch mode)
    Communication frequency 868.1 MHz
    Communication range about 300 m (free terrain)
    Recommended installation height 2.2 - 2.5 m above floor level
    Detection angle / detection range 90° / 12 m
    Sizes: 62 x 110 x 40 mm
    Classificatie Safety level 2/environmental class II, in accordance with EN 50131-1 ed. 2+A1+A2, EN 50131-2-2
    Environment in accordance with EN 50131-1 II. indoor, general
    Operational temperature range -10 °C to +40 °C
    It also meets the requirements of EN 50131-5-3+A1, EN 50131-6 ed. 2+A1, ETSI EN 300 220-1,-2, EN 50130-4 ed. 2+A1, EN 55032, EN 62368-1, EN 50581
