Product form

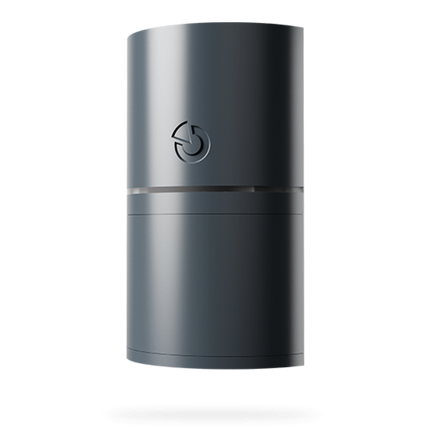

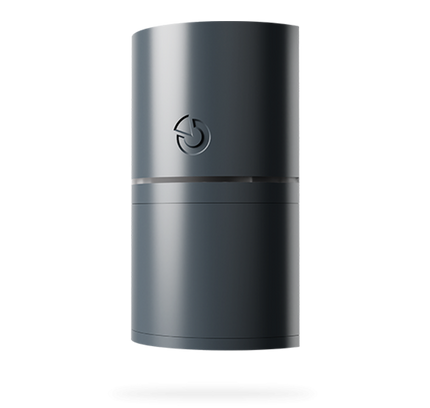

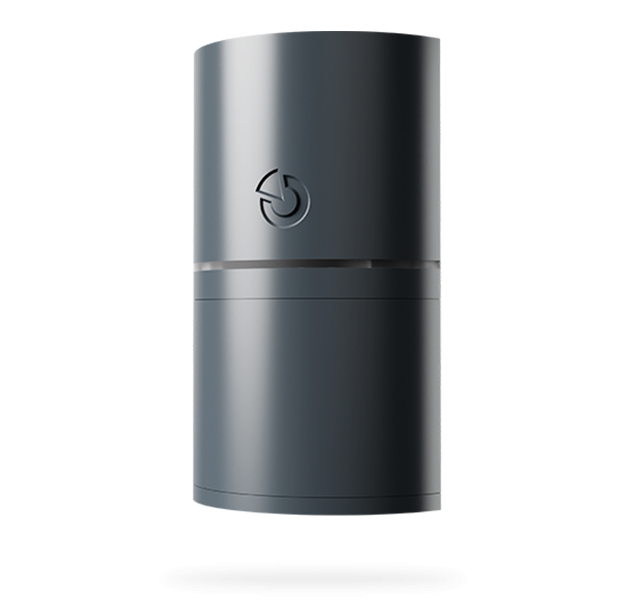

JA-152P-AN, Wireless motion detector PIR Anthracite

JA-152P-AN, Wireless Motion Detector PIR Anthracite NOTE: Works only on the Midway Pro and Essex Pro and Mercury . The... Read more

Delivery time 1 - 2 working days

€166,80€137,85 Incl. VATExcl. VAT

    Cheaper somewhere else?

    Lowest price guarantee

    With our lowest price guarantee, you no longer have to compare, we already do that for you. Find the exact same product cheaper elsewhere before you buy? Let us know and we will adjust our price.

    The small print

    • The product has the same specifications and color.
    • The product is sold by a Dutch brand dealer (warranty included).
    • The product is available from stock. You can pick it up immediately or it will be delivered to your home the next day.
    • The price guarantee is given on the sale price, without shipping costs or other services.
    • The lowest price guarantee is valid until the moment of purchase.

    • American Express
    • Apple Pay
    • Google Pay
    • Klarna
    • Maestro
    • Mastercard
    • PayPal
    • Union Pay
    • Visa
    • Showroom in Gorinchem
    • 3500+ customers give us a 4.71 / 5
    • Free returns within 14 days

    check Associated products for JA-152P-AN, Wireless motion detector PIR Anthracite

    Size chart

    JA-152P-AN, Wireless Motion Detector PIR Anthracite

    NOTE: Works only on the Midway Pro and Essex Pro and Mercury

    .

    The product is a wireless system device for the JABLOTRON 100+. It is designed to detect human body movements in buildings. The guaranteed detection coverage is 90°/12 m. The detector meets the highest quality and design requirements, making it suitable even for luxurious interiors.

    Specificaties:

    Compatible with F-Link 2.0.0 and higher
    Current 1 Lithium battery type CR123A (3 V/1500 mAh)
    Note: Battery not included
    Typical battery life 4 years (longest in smartwatch mode, at 20°C)
    Low battery voltage < 2.4V
    Current consumption in standby mode 30 μA
    Maximum current consumption 100mA
    Communication band 868.1 MHz, JABLOTRON protocol
    Communication range about 300 m (open terrain)
    Recommended installation height 2.2 - 2.5 m above the floor
    Detection angle/detection coverage 90°/12 metres
    Dimensies 62x110x40mm
    Weight (without battery) 90 grams
    Classificatie Security class 2/Environmental class II (in accordance with EN 50131-1)
    Operational environment In general
    Operational temperature range -10 °C to +40 °C
    Average operating humidity 75% RH, non-condensing
    Certifying body Trezor Test sro (no 3025)
    Corresponds to EN 50131-1 issue. 2+A1+A2, EN 50131-2-2, EN 50131-5-3+A1, EN 50131-6 issue 2+A1, ETSI EN 300 220-1,-2, EN 50130-4 issue 2+A1, EN 55032, EN 62368-1, EN 50581
    Can be operated according to ERC-REC 70-30

    Read more
